Product Features
High Refresh Rate
Wide Viewing Angle
Multiple Control Options
High Flexibility
Easy to move
Arc installation
Front Maintenance
Low Power Consumption
Ideal For Multiple Settings

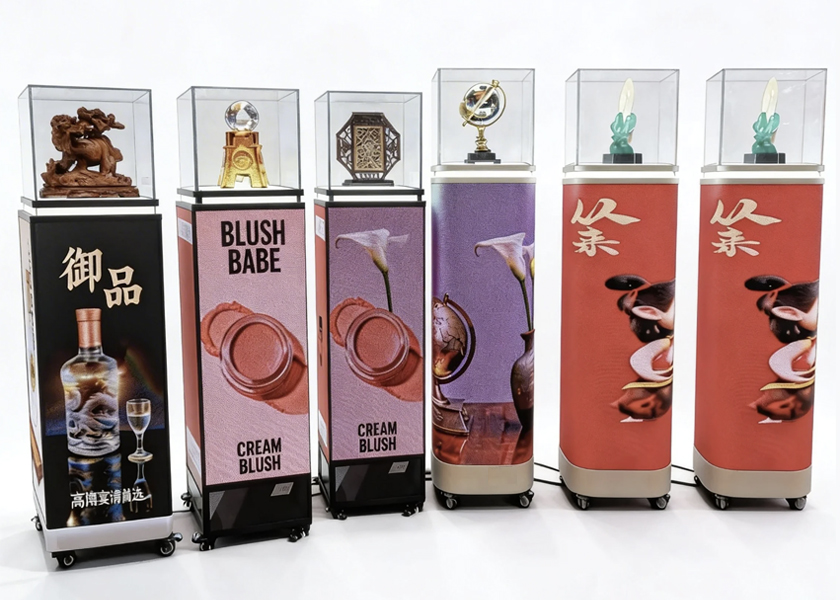

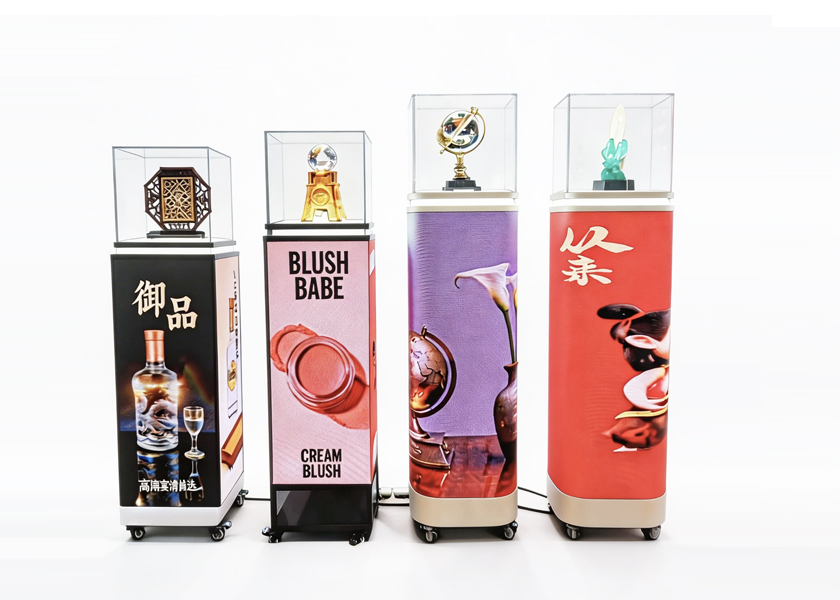

Whether for highlighting exquisite jewelry, enhancing cosmetics retail counters, or displaying priceless cultural relics in museums, the built-in LED screen delivers a dynamic and immersive experience, captivating audiences with breathtaking clarity from every angle.

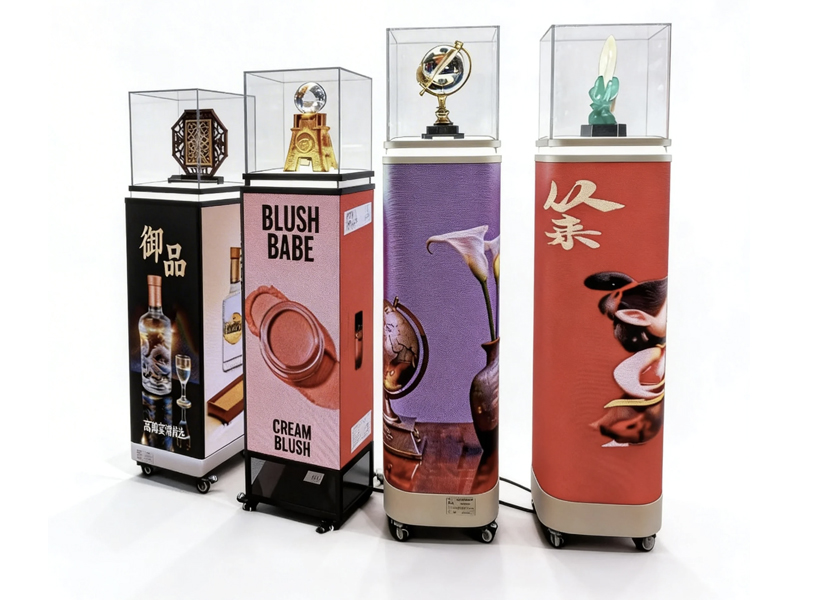

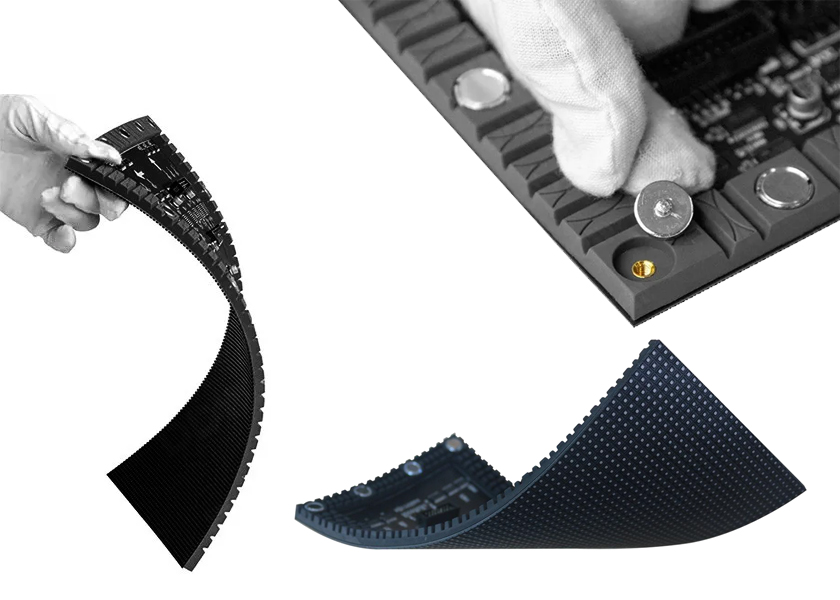

High Flexibility
The module's flexibility enables it to be configured into virtually any custom shape, turning your creative visions into reality.
Tool-Free Magnetic Installation
With multiple strong magnets on the back, our modules simply click onto the frame—no tools needed. The magnetic hold allows for on-the-spot adjustments on uneven surfaces, and if maintenance is required, modules can be removed and snapped back into place in seconds.
Installation Methods
Stationary use
Application Scenarios
Jewelry Counter Display
Cosmetics Counter LED
Museum Exhibit Display
Luxury Retail Counter
Product Showcase LED
Product Parameter
CR-F Series Built-in Counter LED Display - Technical Specifications
Pixel Pitch
P1.25
P1.538
P1.86
P2
P2.5
P3
LED type
SMD1010
SMD1010
SMD1515
SMD1515
SMD2020
SMD2020
Physical Density(dots/㎡)
640000
422500
288888
250000
160000
11111
Module size(mm)
240X120
320X160
320X160
240X120
240X120
240X120
Module resolution(dots)
192×96
208×104
172×86
120×60
96×48
80×40
Brightness(CD/㎡)
600
600
600
700
700
700
Color temperature(K)
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
Drive mode
1/64
1/52
1/43
1/30
1/24
1/20
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
≥3840
Viewing angle(H/V)
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
Gray scale
16bit
16bit
16bit
16bit
16bit
16bit
Max consumption(W/㎡)
560
560
560
560
560
560
Avg. consumption(W/㎡)
100-200
100-200
100-200
100-200
100-200
100-200
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
