Product Features
High Refresh Rate
Wide Viewing Angle
Multiple Control Options
High Flexibility
Right Angle Splicing
Supports Rotation
Supports Front Maintenance
Low Power Consumption

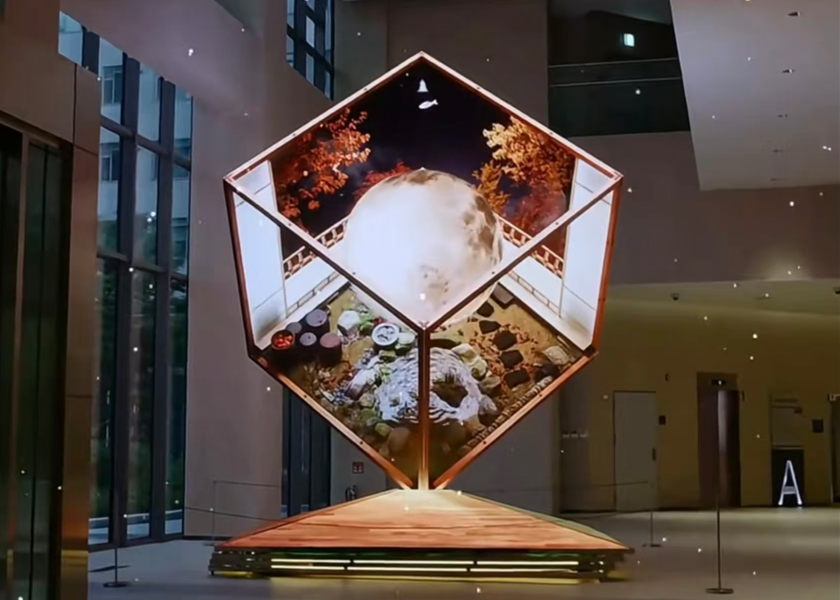

Supports 3D content playback
More than just a cube — each of its six faces can display the same or different content. When playing custom 3D videos, it transforms into a captivating 3D visual experience.

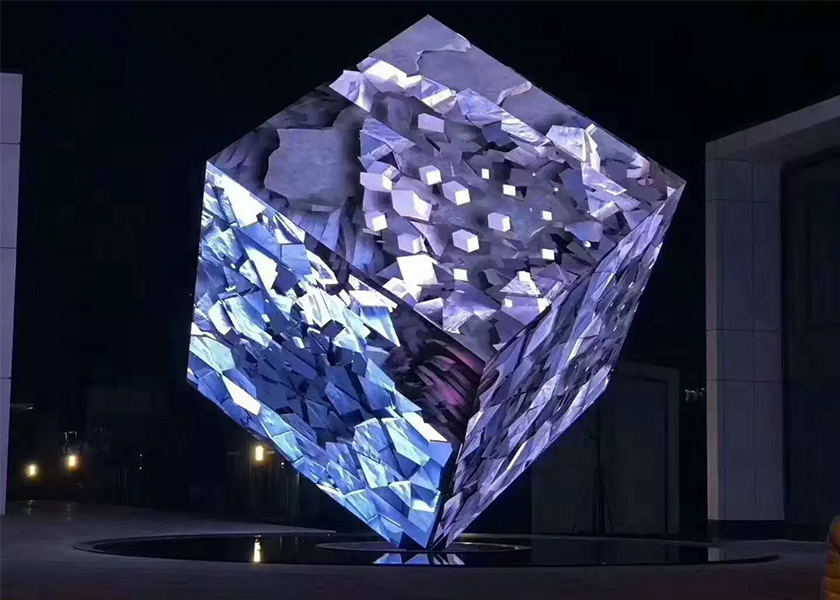

Indoor/Outdoor use
Not only can it display store information as a creative sign, but it can also be installed outdoors to establish a unique and iconic landmark

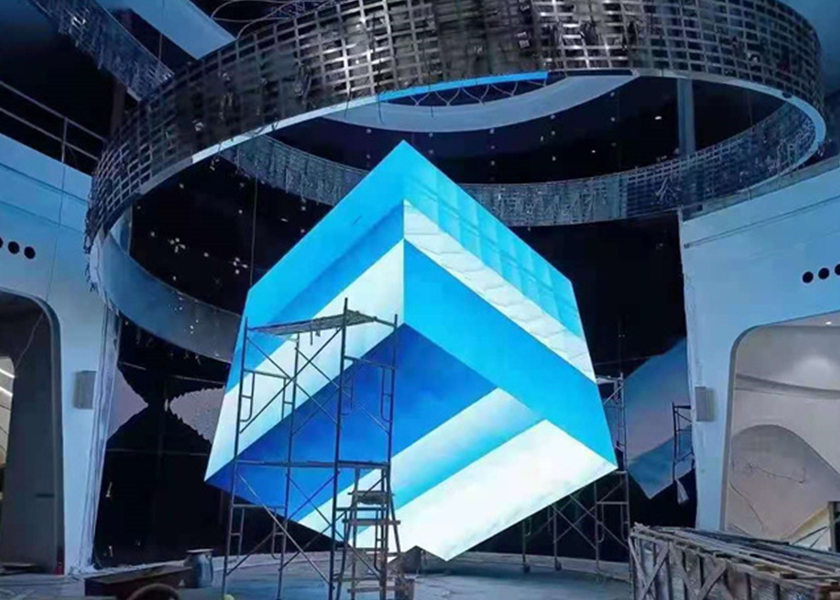

Multi-screen combination capable
Scale your creativity without limits. Seamlessly synchronize multiple screens to turn any wall, column, or public space into an expansive digital canvas.

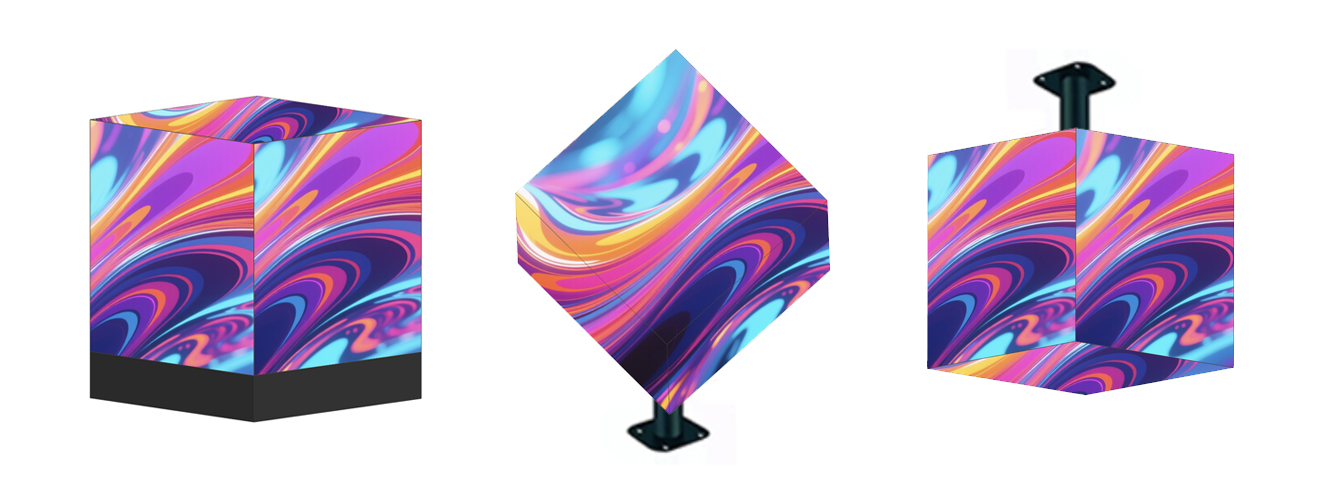

Installation Methods
Flexible mounting options: floor, ceiling, or wall
Application Scenarios
Retail Store Cube Display
Exhibition Center Cube
Shopping Mall Landmark
Museum Exhibition Cube
Corporate Lobby Display
Product Parameter
CR-A Series Rubik's Cube LED Display - Technical Specifications
Pixel Pitch
P1.25
P1.538
P1.86
P2
P2.5
LED type
SMD1010(S/G/C)
SMD1212(S/G/C)
SMD1515(S/G/C)
SMD1515(S/G/C)
SMD151572020(S/G/C)
Physical Density(dots/㎡)
640000
422500
288888
250000
160000
Module size(mm)
320X160
320X160
320X160
320X160
320X160
Module resolution(dots)
256×128
208×104
172×86
160×80
128×64
Brightness(CD/㎡)
600~700
600~700
600~700
600~700
≥800
Color temperature(K)
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
Drive mode
1/64
1/52
1/43
1/40
1/32
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
Viewing angle(H/V)
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
Gray scale
16bit
16bit
16bit
16bit
16bit
Max consumption(W/㎡)
560
560
560
560
560
Avg. consumption(W/㎡)
100-200
100-200
100-200
100-200
100-200
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
