CR-B Series Retail LED Display
Double-Sided Waterproof Outdoor Retail Signage
- High Brightness - Visible in Direct Sunlight
- Single or Double-Sided Display Options
- Flexible Control Methods - Mobile/PC/Wi-Fi
- Waterproof Protection - IP65 Rated
- High Refresh Rate - 3840Hz
- Wide Viewing Angle - 140°
- Low Power Consumption
✓
Thank You!
Your inquiry has been submitted successfully.
Our team will respond within 12 hours.
✗
Submission Failed
Something went wrong. Please try again or contact us directly.
Our team will respond within 12 hours
|
| |
|
⭐ Product Features
🛠️ Installation Methods
🏢 Application Scenarios
📊 Product Parameter
🔄 Related Products
|
|
|
| |

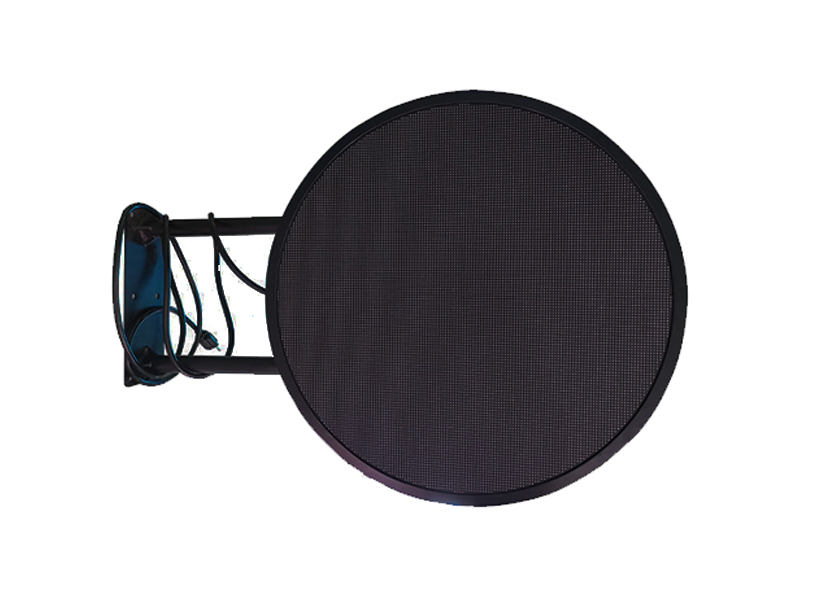

Single or Double-Sided
Whether single or double-sided, its high-brightness display keeps your message visible and spreading across the store — nonstop, 24/7.
|
| |
Flexible Control Methods
Enable wireless interaction via mobile phones and smart devices for ultimate control — anytime, anywhere.
|
| |

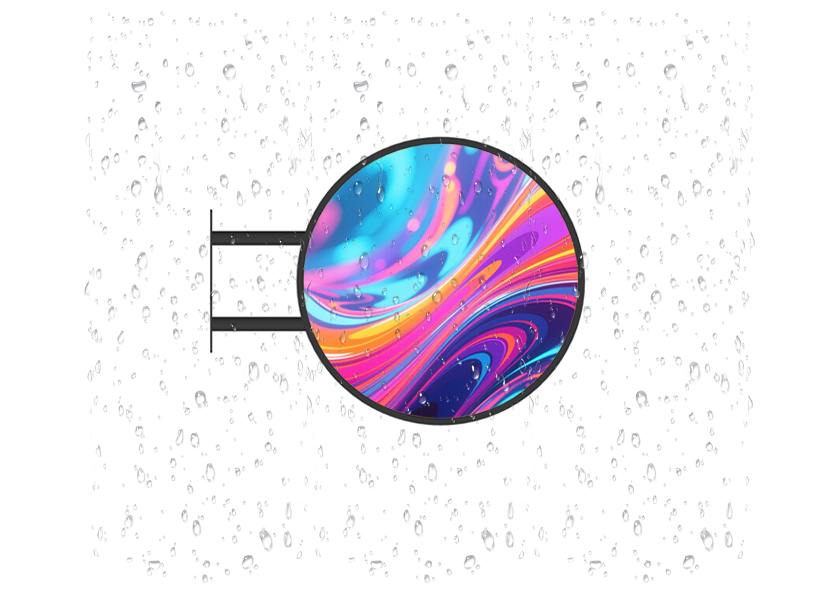

Waterproof Protection
Choose single or double-sided display, both built with waterproof protection to withstand the elements and keep your message running 24/7 outdoors.
|
| |

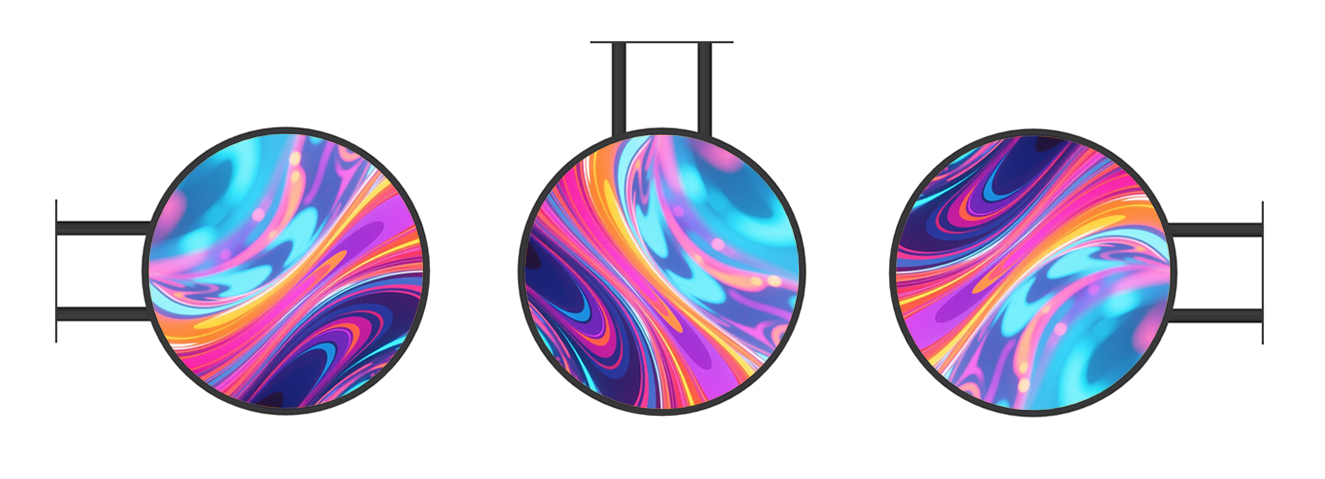

Installation Methods
Flexible mounting options: floor, ceiling, or wall
|
| |
|
| Application Scenarios |

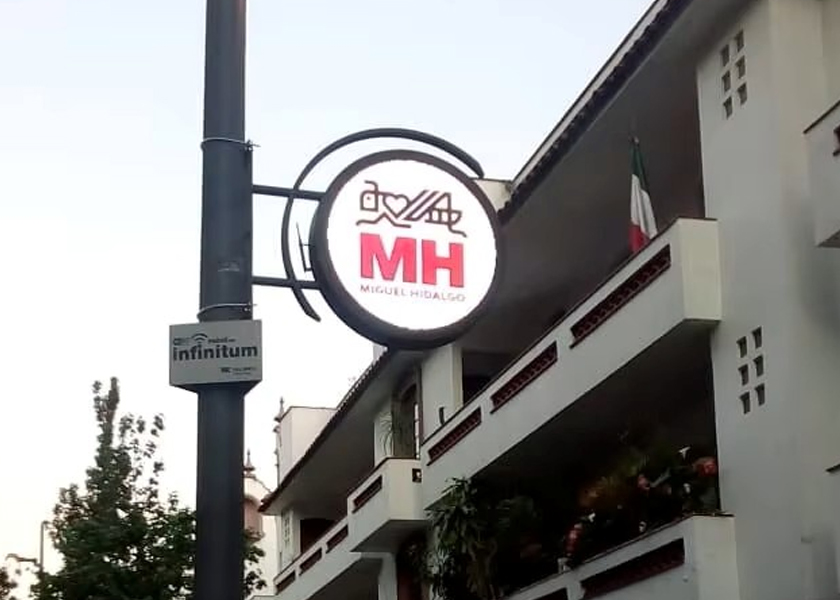

Storefront Window Display
Commercial Building Display
|
| |
|
| Product Parameter |
| CR-B Series Retail LED Display - Technical Specifications |
| Pixel Pitch |
P1.25 |
P1.538 |
P1.86 |
P2 |
P2.5 |
| LED type |
SMD1010(S/G/C) |
SMD1212(S/G/C) |
SMD1515(S/G/C) |
SMD1515(S/G/C) |
SMD151572020(S/G/C) |
| Physical Density(dots/㎡) |
640000 |
422500 |
288888 |
250000 |
160000 |
| Module size(mm) |
320X160 |
320X160 |
320X160 |
320X160 |
320X160 |
| Module resolution(dots) |
256×128 |
208×104 |
172×86 |
160×80 |
128×64 |
| Brightness(CD/㎡) |
600~700 |
600~700 |
600~700 |
600~700 |
≥800 |
| Color temperature(K) |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
| Drive mode |
1/64 |
1/52 |
1/43 |
1/40 |
1/32 |
| Refresh rate(Hz) |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
| Viewing angle(H/V) |
140°/140° |
140°/140° |
140°/140° |
140°/140° |
140°/140° |
| Gray scale |
16bit |
16bit |
16bit |
16bit |
16bit |
| Max consumption(W/㎡) |
560 |
560 |
560 |
560 |
560 |
| Avg. consumption(W/㎡) |
100-200 |
100-200 |
100-200 |
100-200 |
100-200 |
| Working Voltage |
AC100-240V,50/60Hz |
| Working temp/Humidity(℃/RH) |
-20~50℃/10%~95% |
| Stock temp/Humidity(℃/RH) |
-20~50℃/10%~95% |
|
| |
|
