⭐ Product Features
🛠️ Installation Methods
🏢 Application Scenarios
📊 Product Parameter
🔄 Related Products
Product Features
High Refresh Rate
Wide Viewing Angle
Multiple Control Options
High Flexibility
Right Angle Splicing
Arc installation
Front Maintenance
Low Power Consumption

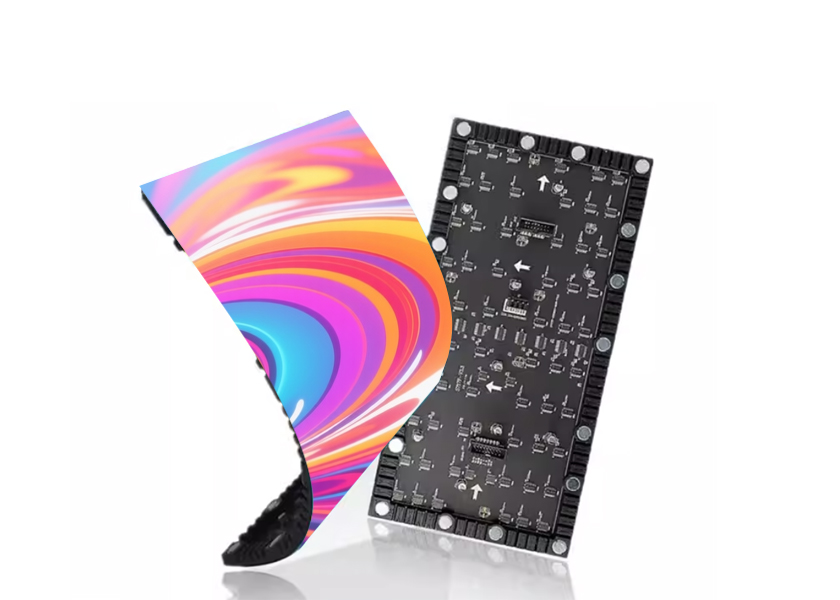

Bend-to-Fit Modules
JINGRUNS flexible LED modules, available in dimensions of 320×160 mm and 240×120 mm, serve as the essential building blocks for creating a wide variety of curved and creatively shaped screens. With their compact and bendable design, these modules seamlessly adapt to cylindrical columns, wave-like structures, and custom artistic installations—offering unparalleled flexibility to bring any creative vision to life.
High Flexibility
The module's flexibility enables it to be configured into virtually any custom shape, turning your creative visions into reality.
Tool-Free Magnetic Installation
With multiple strong magnets on the back, our modules simply click onto the frame—no tools needed. The magnetic hold allows for on-the-spot adjustments on uneven surfaces, and if maintenance is required, modules can be removed and snapped back into place in seconds.

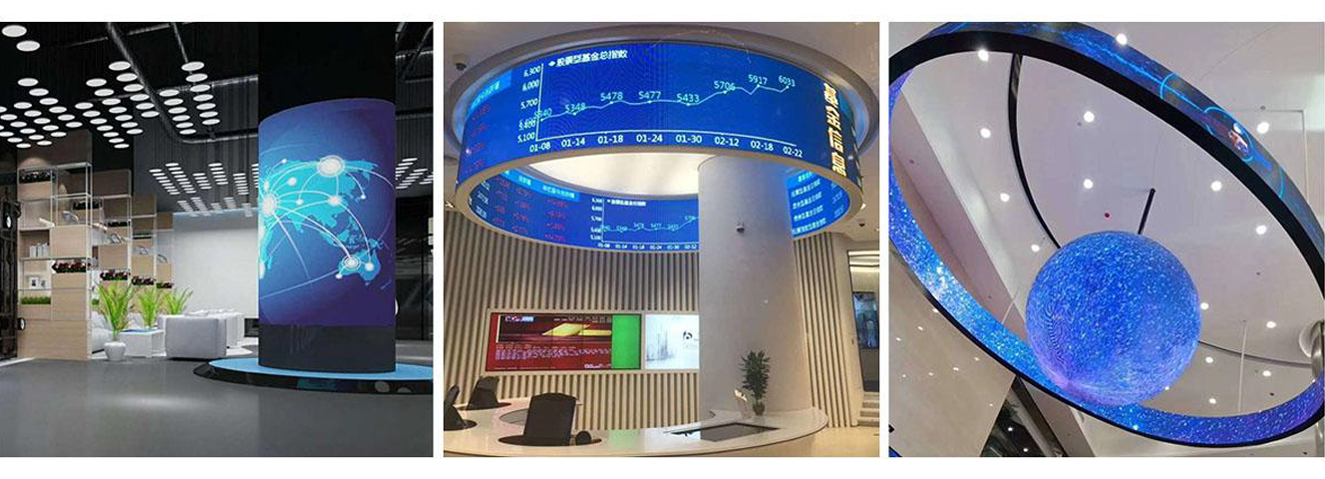

Installation Methods
Flexible mounting options: floor, ceiling, or wall
Application Scenarios
Retail Store Column Display
Exhibition Center Curved Wall

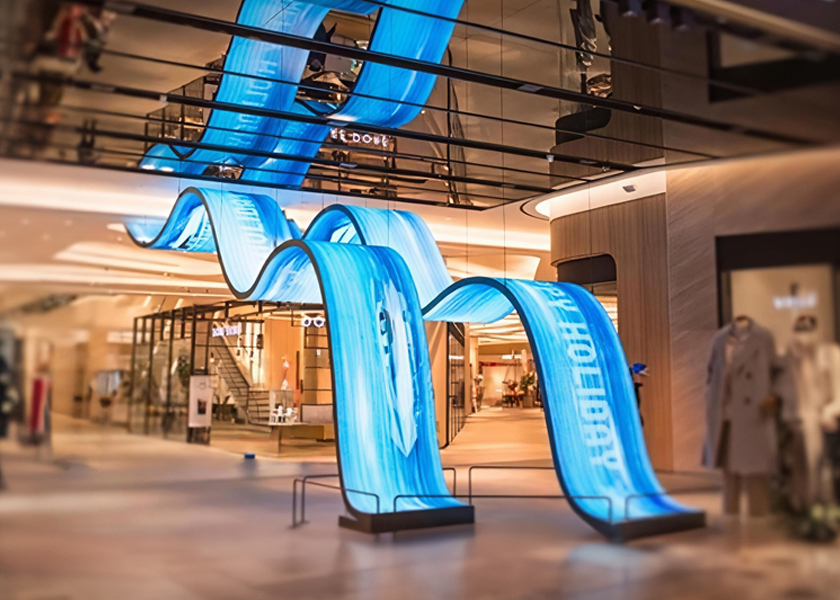

Shopping Mall Wave Display

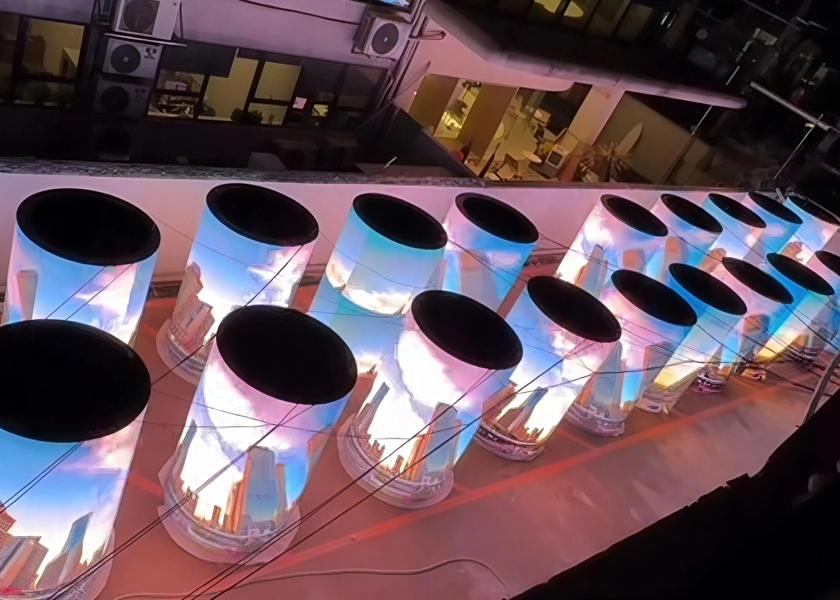

Museum Cylindrical Display
Corporate Lobby Curved Wall
Product Parameter
CR-C Series Curved LED Display - Technical Specifications
Pixel Pitch
P1.25
P1.538
P1.86
P2
P2.5
P3
LED type
SMD1010
SMD1010
SMD1515
SMD1515
SMD2020
SMD2020
Physical Density(dots/㎡)
640000
422500
288888
250000
160000
11111
Module size(mm)
240X120
320X160
320X160
240X120
240X120
240X120
Module resolution(dots)
192×96
208×104
172×86
120×60
96×48
80×40
Brightness(CD/㎡)
600
600
600
700
700
700
Color temperature(K)
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
Drive mode
1/64
1/52
1/43
1/30
1/24
1/20
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
≥3840
Viewing angle(H/V)
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
Gray scale
16bit
16bit
16bit
16bit
16bit
16bit
Max consumption(W/㎡)
560
560
560
560
560
560
Avg. consumption(W/㎡)
100-200
100-200
100-200
100-200
100-200
100-200
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
