⭐ Product Features
🛠️ Installation Methods
🏢 Application Scenarios
📊 Product Parameter
🔄 Related Products
Product Features
High Refresh Rate
Wide Viewing Angle
Multiple Control Options
High Flexibility
Easy to move
Arc installation
Front Maintenance
Low Power Consumption
Ideal For Multiple Settings
Built-in counter LED screens create dynamic experiences across various settings—from engaging visitors at exhibition and restaurant reception areas to elevating brand image in corporate lobbies and energizing crowds in DJ dance halls.

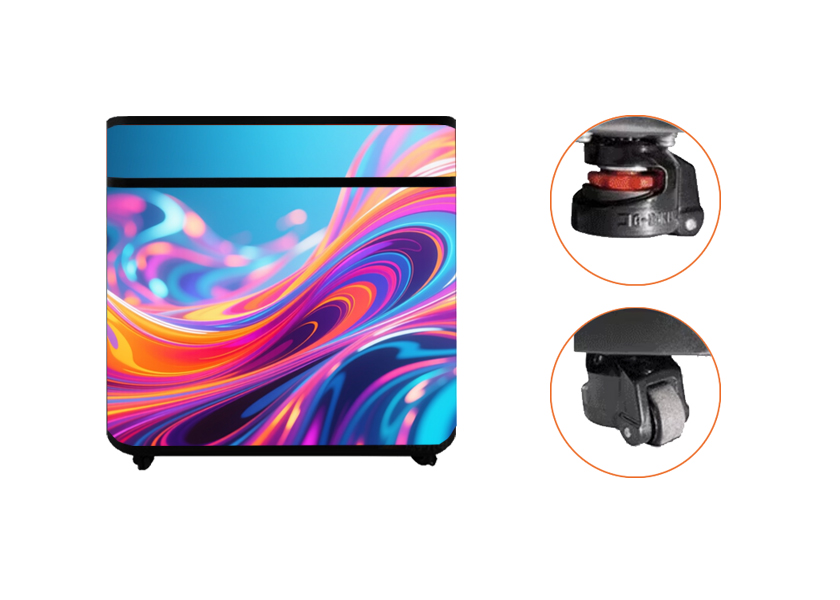

Easy To Move
The unit glides smoothly on high-quality casters for easy repositioning, and can be locked firmly in place to guarantee stability during operation.

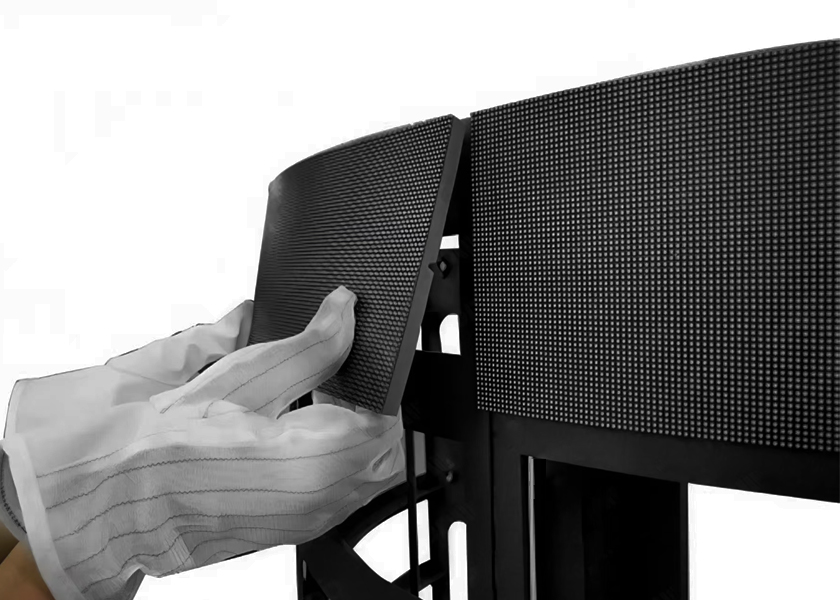

Tool-Free Magnetic Installation
With multiple strong magnets on the back, our modules simply click onto the frame—no tools needed. The magnetic hold allows for on-the-spot adjustments on uneven surfaces, and if maintenance is required, modules can be removed and snapped back into place in seconds.
Installation Methods

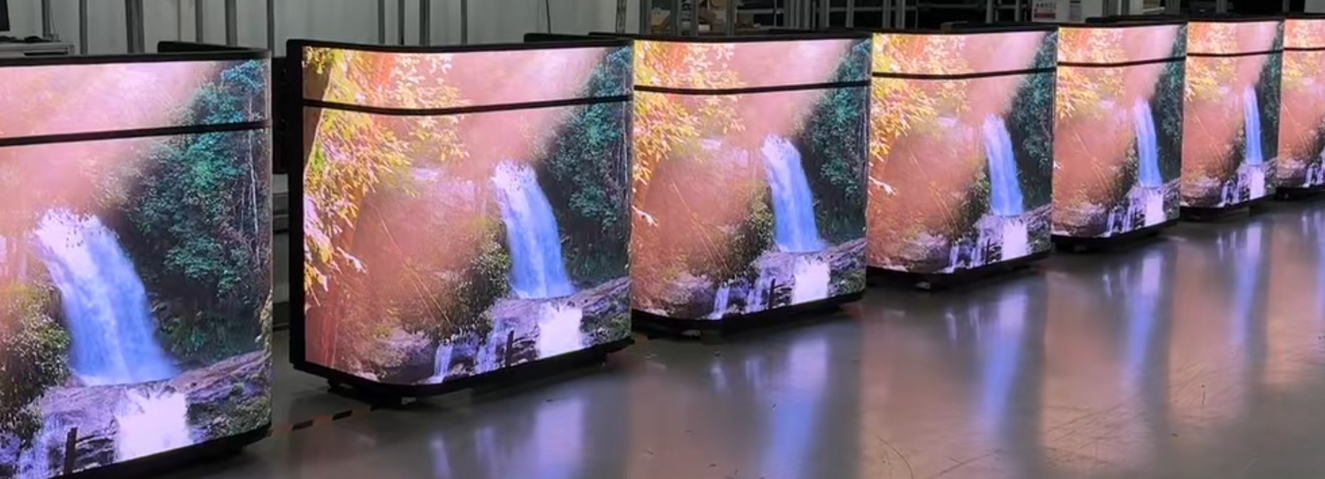

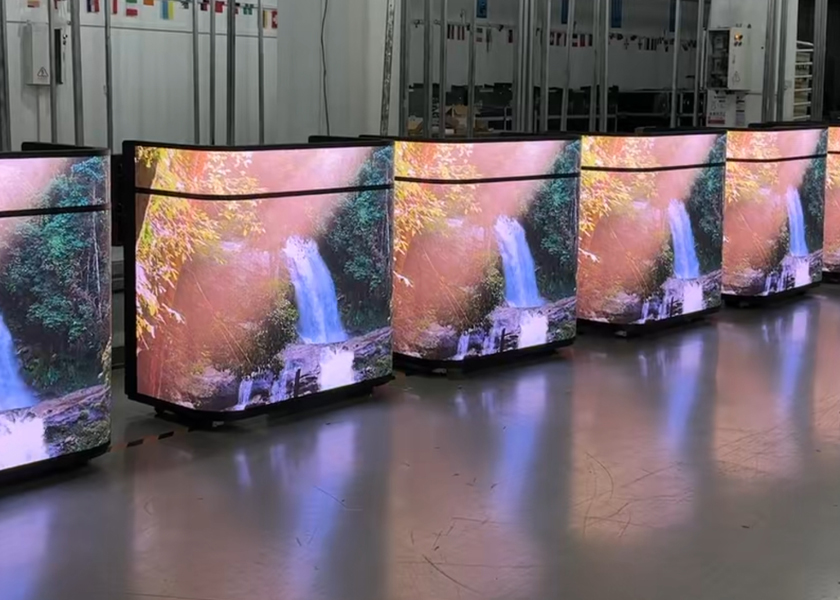

Stationary use
Application Scenarios
Retail Counter Display
Exhibition Reception Display
Restaurant Bar Counter
Corporate Lobby Display
Trade Show Info Desk
Product Parameter
CR-E Series Built-in Table LED Display - Technical Specifications
Pixel Pitch
P1.25
P1.538
P1.86
P2
P2.5
P3
LED type
SMD1010
SMD1010
SMD1515
SMD1515
SMD2020
SMD2020
Physical Density(dots/㎡)
640000
422500
288888
250000
160000
11111
Module size(mm)
240X120
320X160
320X160
240X120
240X120
240X120
Module resolution(dots)
192×96
208×104
172×86
120×60
96×48
80×40
Brightness(CD/㎡)
600
600
600
700
700
700
Color temperature(K)
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
Drive mode
1/64
1/52
1/43
1/30
1/24
1/20
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
≥3840
Viewing angle(H/V)
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
Gray scale
16bit
16bit
16bit
16bit
16bit
16bit
Max consumption(W/㎡)
560
560
560
560
560
560
Avg. consumption(W/㎡)
100-200
100-200
100-200
100-200
100-200
100-200
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
