RE-T Series LED Grille Screen - High-Transparency Waterproof LED Display

RE-T Series LED Grille Screen - Front View

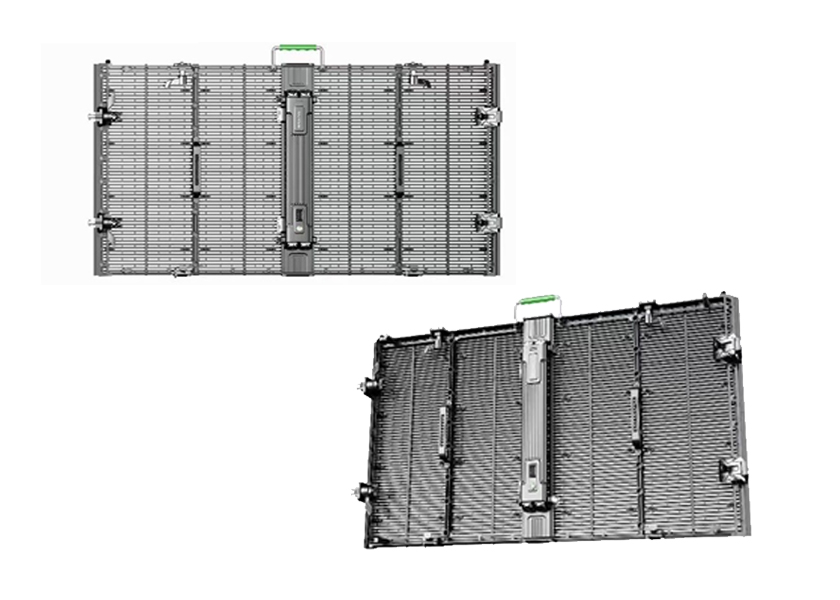

RE-T Series LED Grille Screen - Side View

RE-T Series LED Grille Screen

High-Transparency Waterproof LED Display for Outdoor Events

High Transparency Design - Preserves Natural Illumination
IP65 Waterproof Rating - Suitable for Outdoor Events
Ultra-Lightweight ≤8KG/m² - Easy Transport & Installation
High Brightness up to 10,000 Nits
Wide Viewing Angle 120°/120°
Quick Installation Mechanism
Flexible Splicing Options

✉ Email Us

Our team will respond within 12 hours

⭐ Product Features 🛠️ Installation Methods 🏢 Application Scenarios 📊 Product Parameter 🔄 Related Products

Product Features

High Brightness

Lightweight

Custom Cabinets Available

Flexible Control Options

IP65 Waterproof

High Transparency LED Display - 40-60% Transparency

Hight Transparency

Wide temperature operation

Low Power Consumption

Advantages

This product utilizes a unique, high-precision modular cabinet that enables seamless splicing. Its design achieves high transparency, which not only guarantees an excellent display effect but also effectively preserves the building's natural illumination.

RE-T Series LED Grille Screen - High Transparency Display

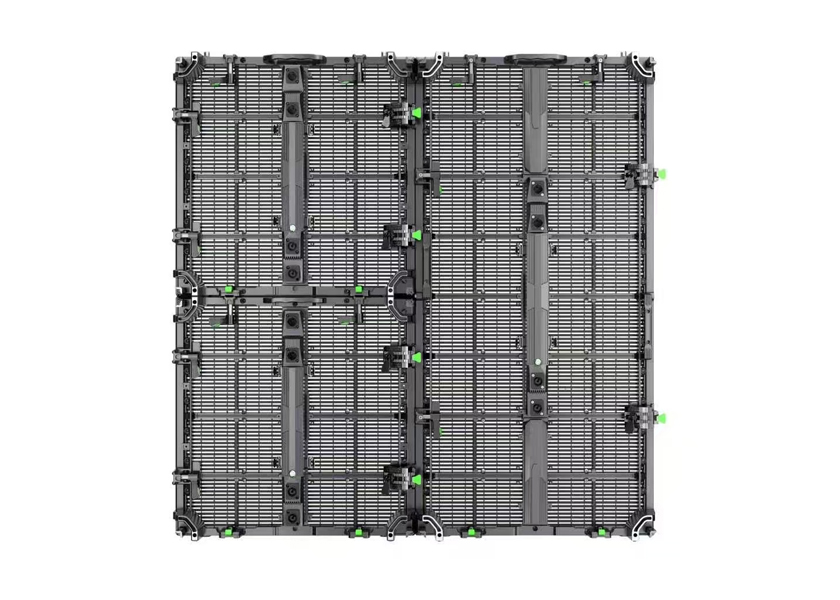

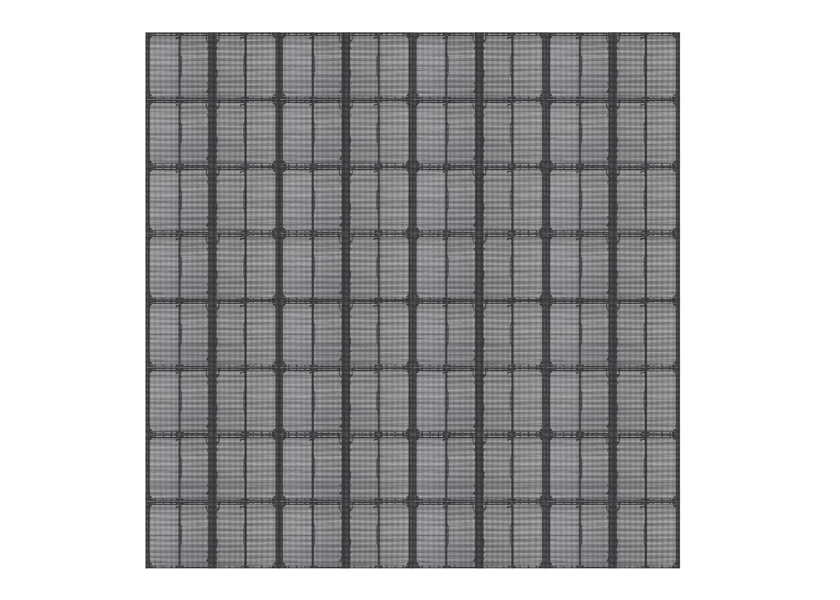

Quick Installation

Adopting a fast connection mechanism ensures a stable connection and reliable waterproofing. This intelligent design simplifies installation, not only meeting the quick setup demands of the stage but also effectively guaranteeing data transmission.

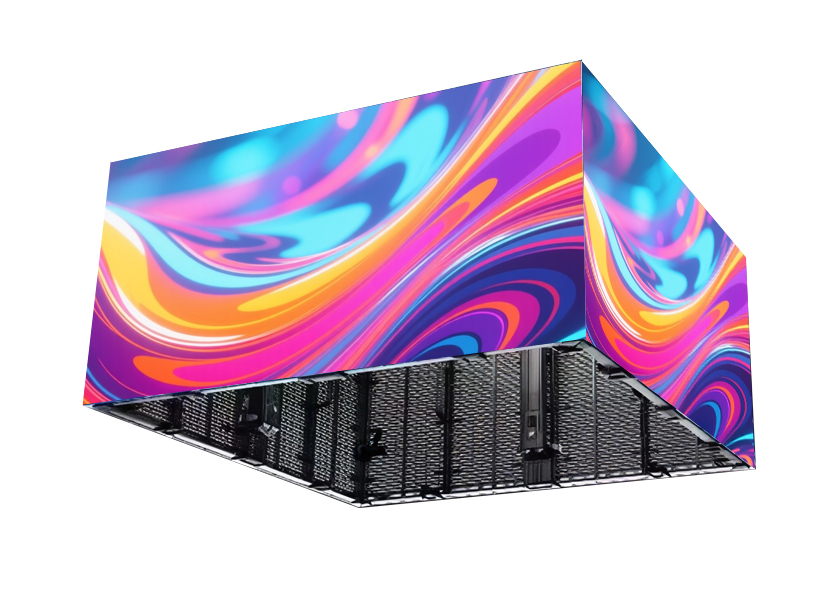

More Configurations

The innovative use of beveled cabinets not only forms a clean right-angle display but also injects a strong sense of creativity into the space, greatly enhancing the visual experience of the stage atmosphere.

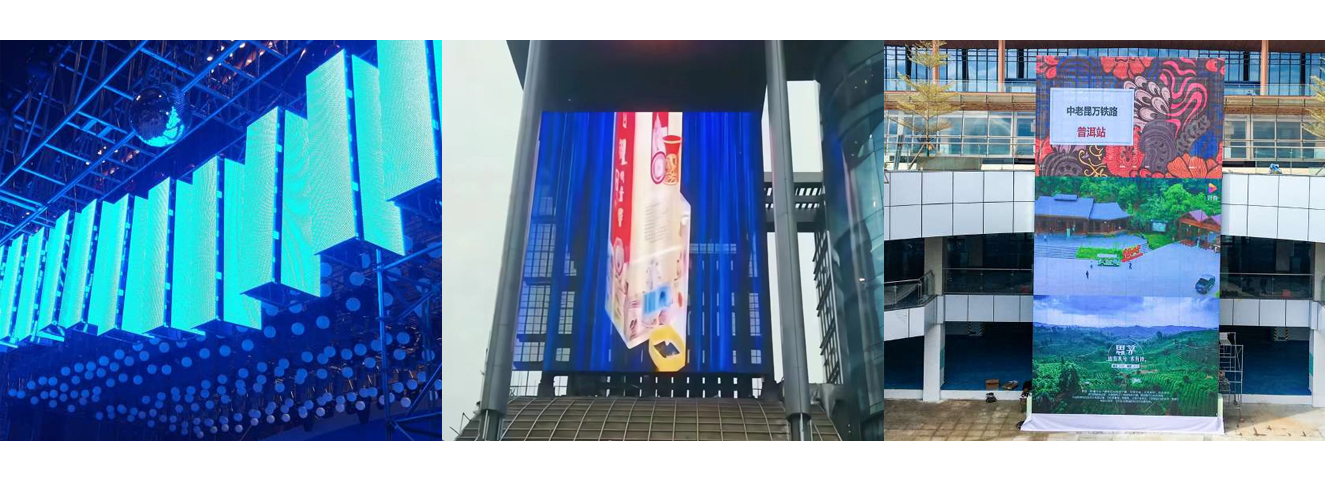

Installation Methods

Wall mounted installation

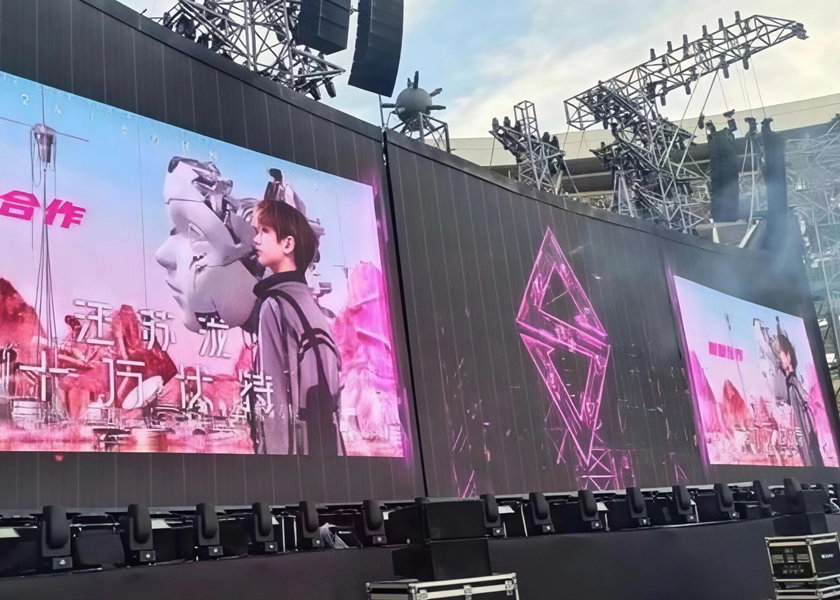

Application Scenarios

RE-T Series LED Grille Screen - Outdoor Event Application

Outdoor Event LED Grille

RE-T Series LED Grille Screen - Building Facade Installation

Building Facade Display

RE-T Series LED Grille Screen - Stage Rental Application

Stage Rental LED Screen

RE-T Series LED Grille Screen - Exhibition Center Display

Exhibition Center LED

RE-T Series LED Grille Screen - Shopping Mall Installation

Shopping Mall Display

Product Parameter

RE-T Series LED Grille Screen - Technical Specifications
Pixel Pitch	P10.42	P15.6	P12.5	P15.6	P15.6-31.25	P31.25
SMD	SMD	SMD	DIP	DIP	DIP	DIP
Physical Density(dots/㎡)	9216	4096	6400	4096	2048	1024
Drving Mode	1/1s	1/1s	1/1s	1/1s	1/1s	1/1s
Module size(mm)	1000×10	1000×10	1000×10	1000×10	1000×10	1000×10
Module resolution(dots)	96×1	64×1	80×1	64×1	64×1	32×1
Cabinet size(mm)	500×1000×70
Cabinet resolution(dots)	48×96	32×64	40×80	32×64	16×64	16×32
Panel Weight(kg)	≤8KG/m2
Brightness(Nits)	7000	6000	10000	10000	6000	4000
Viewing Angle(H/V)	120°/120°
Best viewing distrance	≥5	≥5	≥5		≥5	≥5
Contrast Ratio	10000 : 1
Grey Level	14bit
Refresh Rate (Hz)	3840
Waterproof grade	IP65
Max power consumption(W/㎡)	≤800
Avg power consumption(W/㎡)	≤400
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)	-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)	-20~50℃/10%~95%
