Product Features
High Brightness
Transparent

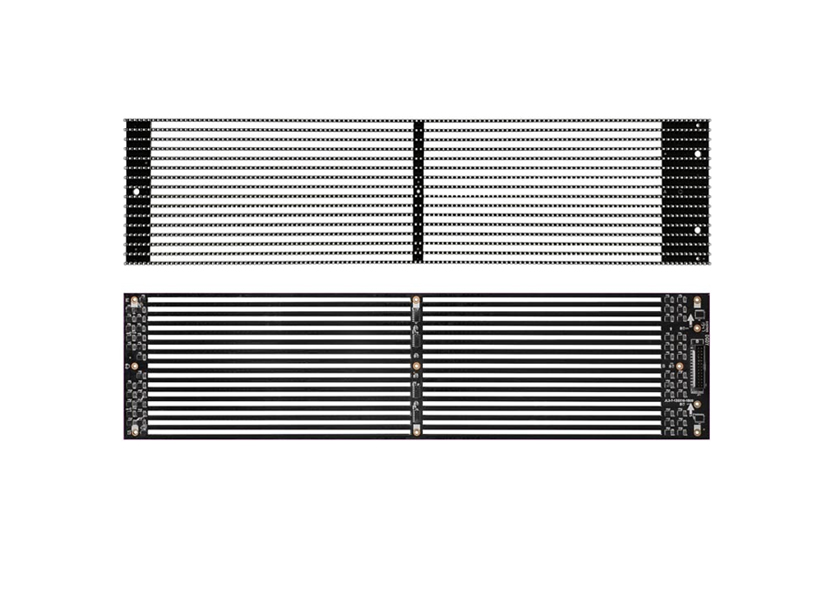

Modularization
Quick Installation
Multiple Control Methods
Support Curved Shapes
Low Power
Lightweight And Slim
Advantages
Visual Brilliance
Experience naturally stunning visuals with our transparent LED screens. Engineered for remarkable contrast and clarity, they bring every image to life with breathtaking detail.

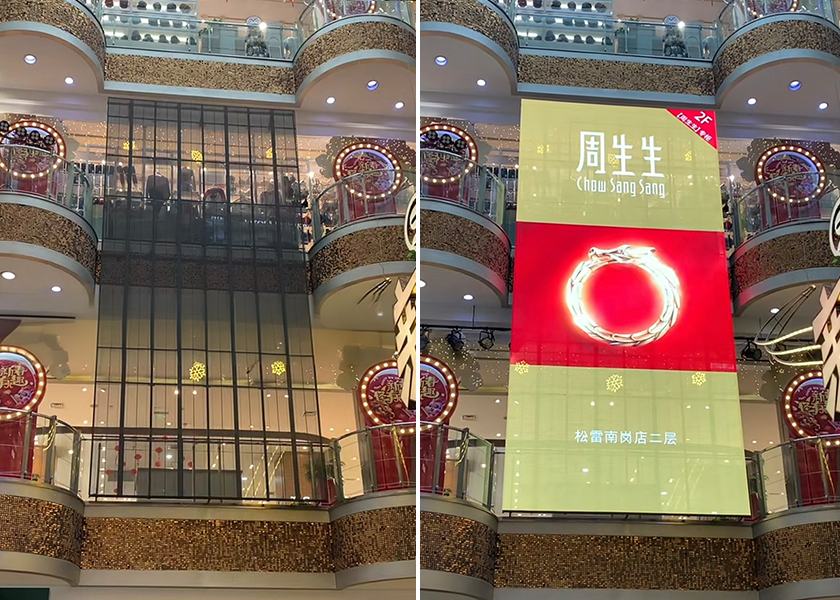

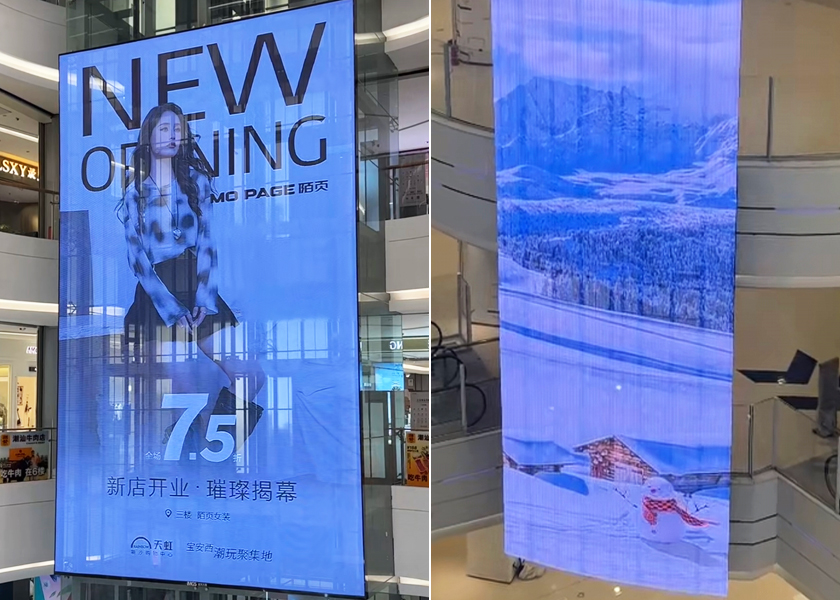

Exceptional Transparency
Featuring industry-leading transparency of 70% to 80%, our LED banners blend invisibly into any environment. Natural light flows through effortlessly, maintaining a clear view while delivering vivid content.

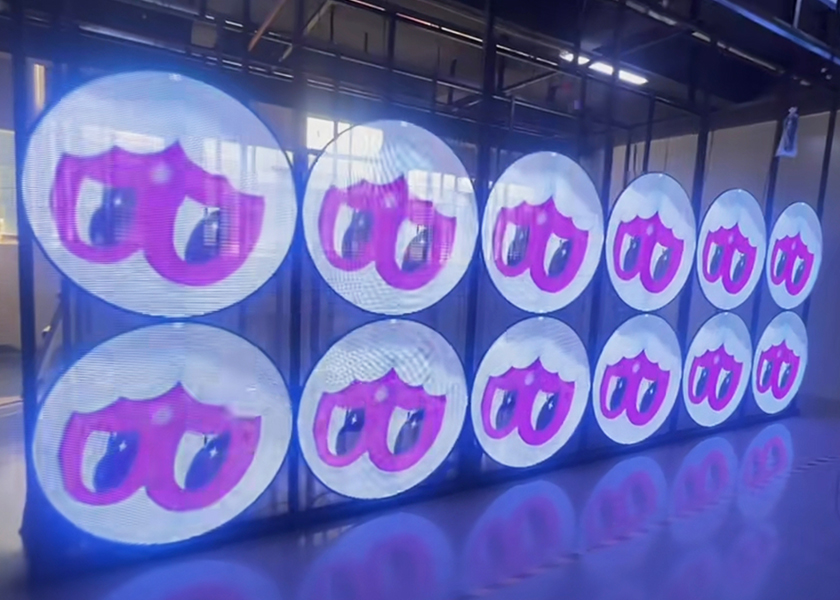

Customizable Shapes & Sizes
Engineered with precision circuitry, the JINGRUNS transparent screen offers ultimate design freedom: it can be custom-cut to virtually any shape, unlocking endless possibilities for creative displays and unique applications.

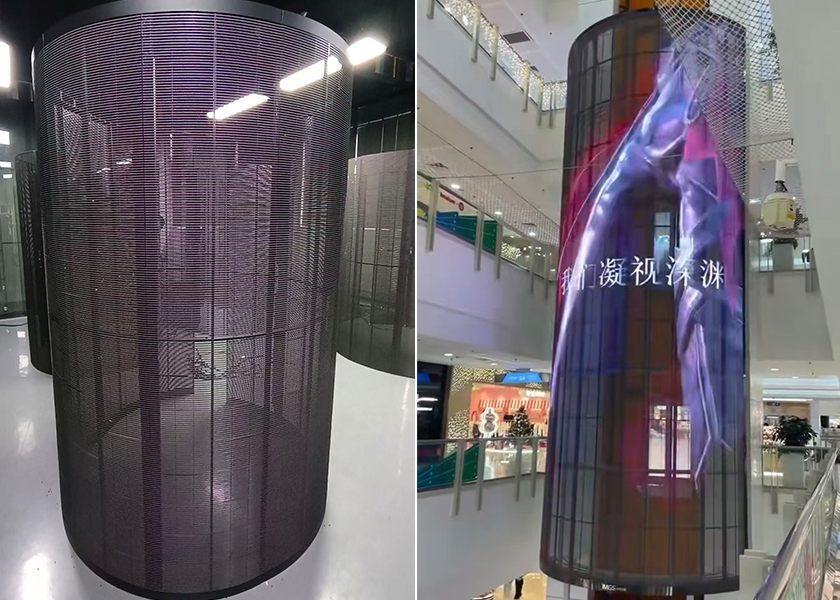

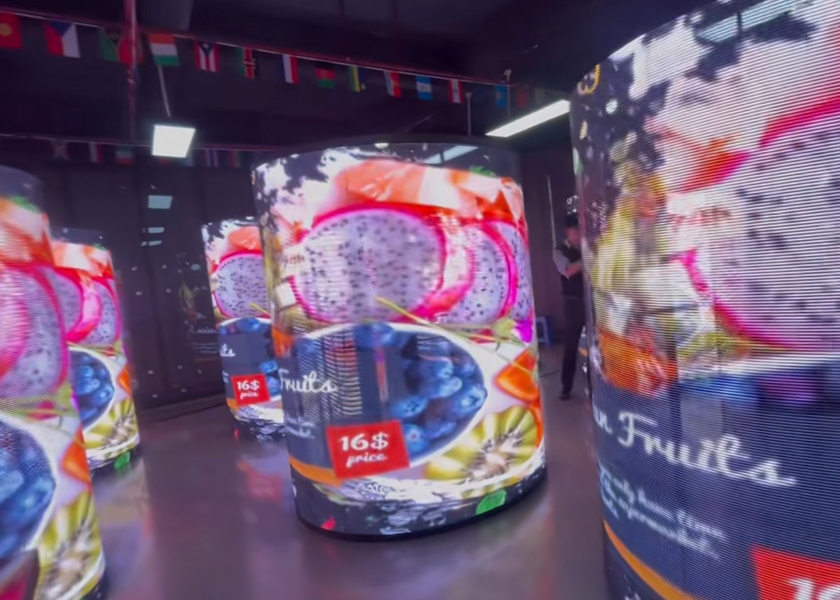

Supports Cylindrical Surround Displays
Engineered with an optimized structure, the JINGRUNS transparent LED screen can be curved into a cylindrical configuration for stunning surround visuals. This opens up a world of possibilities—from immersive bar interiors and dynamic stage backdrops to captivating shopping mall installations.

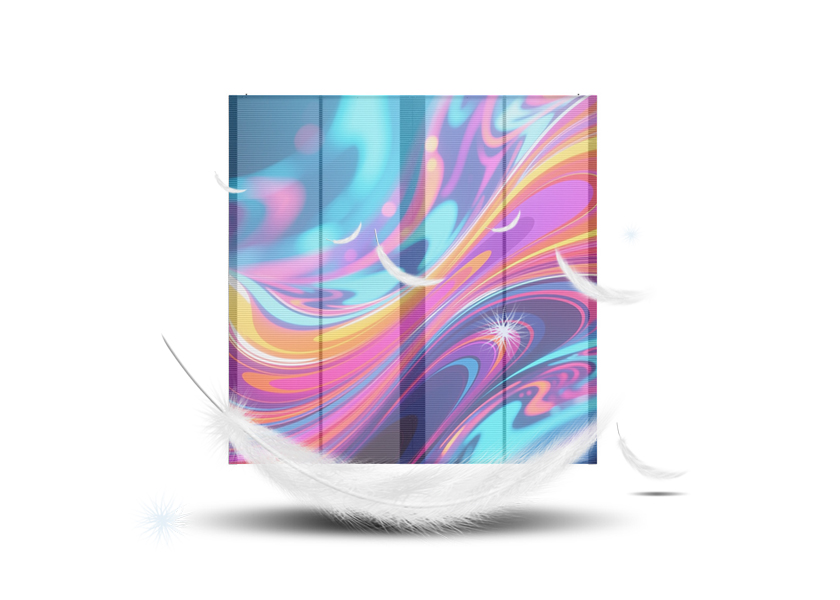

Light Weight
At JINGRUNS, we engineer transparent LED screens that are as lightweight as they are powerful. Our standard 1000×1000mm panel weighs just 8 kg/m²—so light it can be carried in one hand. This ultra-lightweight design means easier installation, lower shipping costs, and a more cost-effective solution for your business.
More Usage Scenarios

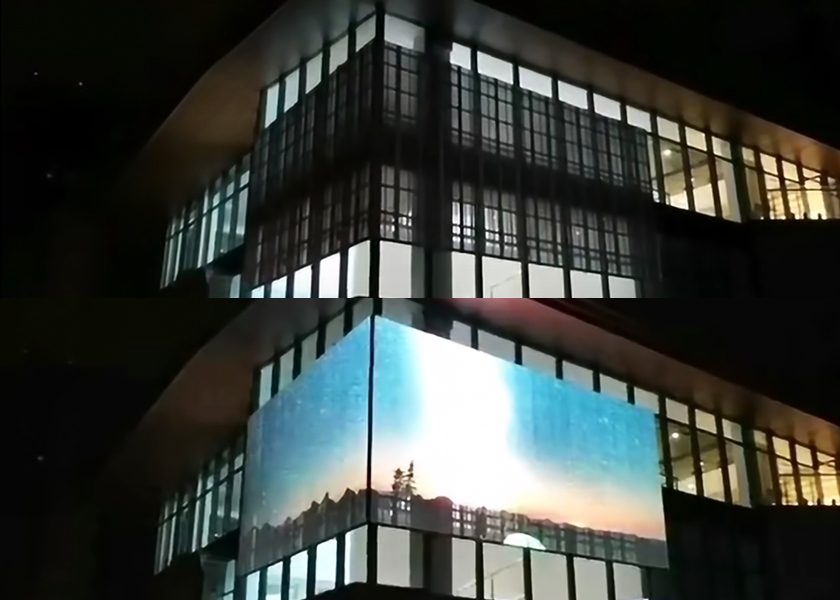

JINGRUNS transparent screens offer unique advantages—including light weight, superior heat dissipation, high brightness, transparency, and easy installation—that make them ideal not only for indoor venues like shopping malls and stages, but also for outdoor applications such as building facades, amusement parks, and commercial plazas.

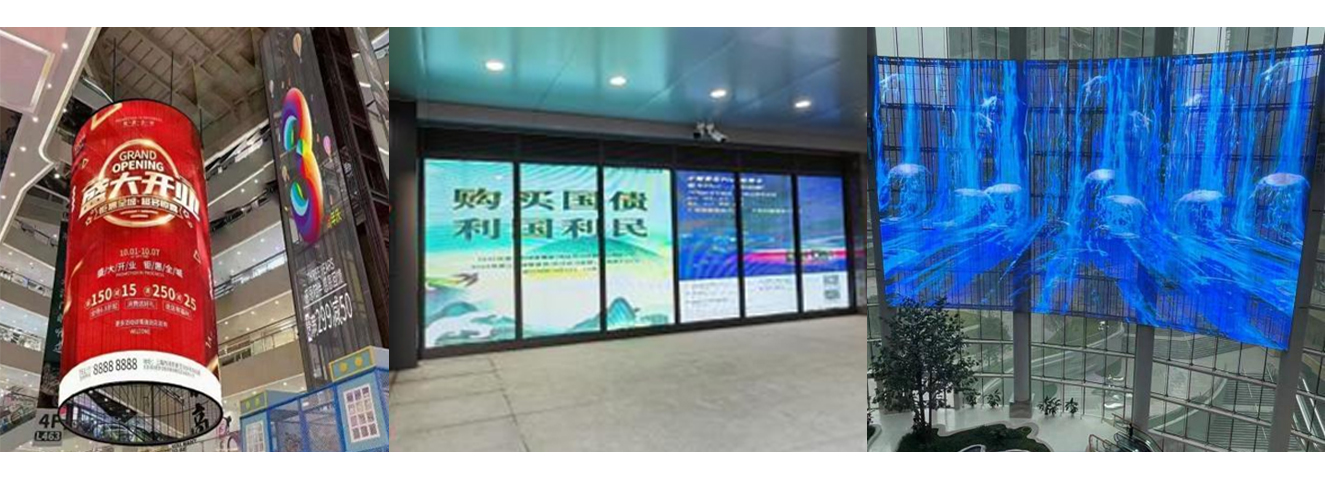

Installation Methods
Flexible Installation: Ceiling, Floor, or Wall-Mounted
Application Scenarios
Building Facade
Stage Background
Shopping Mall Display
Exhibition Booth
Retail Window Display
Product Parameter
IN-T Series Transparent LED Display Specifications
Pixel Pitch
P2.6-6.9
P3.97-7.8
P10.42-10.42
P15.6-15.6
LED type
1R1G1B
1R1G1B
1R1G1B
1R1G1B
Physical Density(dots/㎡)
55296
32768
9216
4096
Module size(mm)
500×125
500×125
500×125
500×125
Module resolution(dots)
192×18
128×16
148×12
32×8
Cabinet size(mm)
1000×1000×70
1000×1000×70
1000×1000×70
1000×1000×70
Cabinet resolution(dots)
384×144
256×128
96×96
64×64
Materials
Aluminum
Aluminum
Aluminum
Aluminum
Cabinet Weight
≤8Kg/m2
≤8Kg/m2
≤8Kg/m2
≤8Kg/m2
Brightness(CD/㎡)
1000 / 4000
800 / 2500 / 4500
5500
5500
Waterproof grade
IP43
IP43
IP43
IP43
Environment
indoor
indoor
indoor
indoor
Viewing angle(H/V)
120°/120°
120°/120°
120°/120°
120°/120°
Gray scale
16bit
16bit
16bit
16bit
Drive mode
1/14
1/16 / 1/8
1/2
172
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
Max consumption(W/㎡)
≤400 / ≤800
≤400 / ≤400 / ≤800
≤800
≤800
Avg. consumption(W/㎡)
≤200 / ≤400
≤200 / ≤200 / ≤400
≤400
≤400
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
