⭐ Product Features
🛠️ Installation Methods
🏢 Application Scenarios
📊 Product Parameter
🔄 Related Products
Product Features
High Brightness
Lightweight
Custom Cabinets Available
Flexible Control Options
IP65 Waterproof
Hight Transparency
Wide temperature operation
Low Power Consumption
Advantages

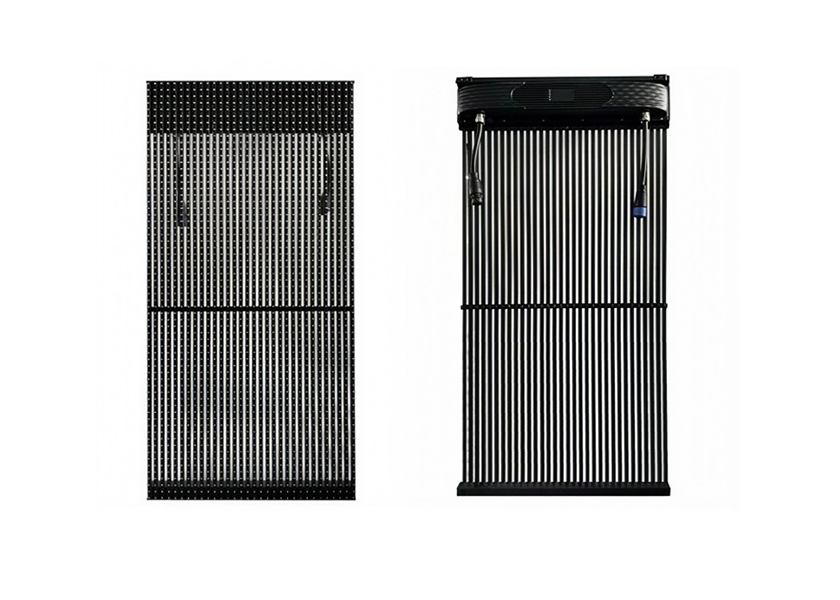

This product utilizes a unique, high-precision modular cabinet that enables seamless splicing. Its design achieves high transparency, which not only guarantees an excellent display effect but also effectively preserves the building's natural illumination.

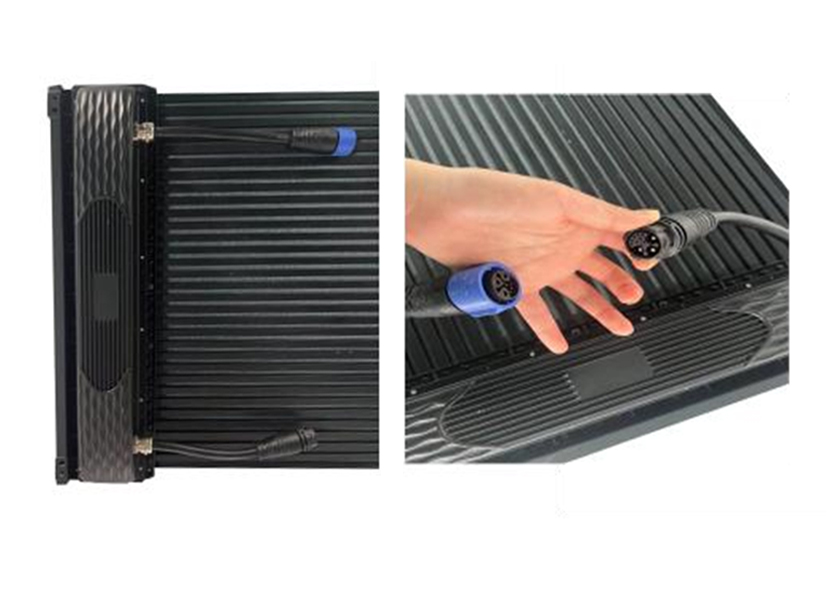

Quick Installation
The system features a foolproof, quick-connect mechanism that guarantees a stable connection and reliable waterproofing. This intelligent design simplifies installation, safeguards high-speed data transmission, and provides long-term reliability in harsh outdoor environments.

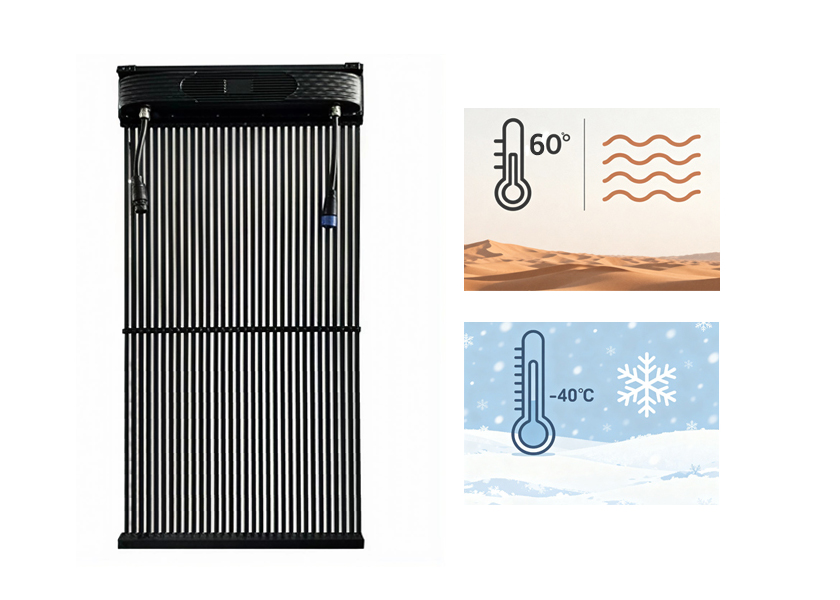

Wide temperature operation
This eco-conscious, energy-efficient design provides reliable low-power performance 24/7. Built to tackle any weather, its rugged construction easily handles extreme temperatures (-40°C to 60°C) and high humidity without interruption.
Installation Methods

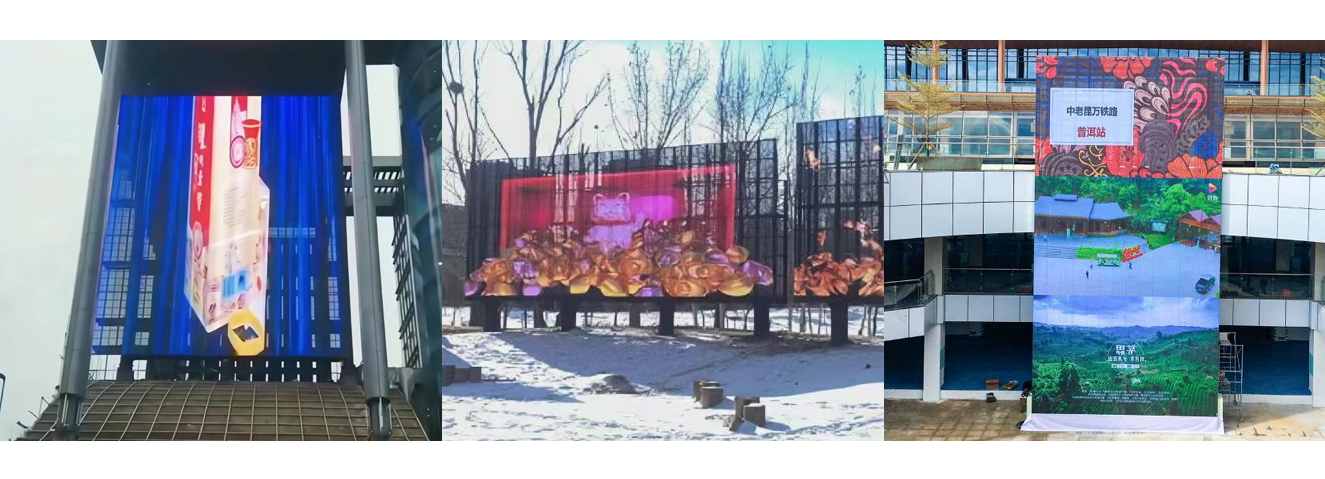

Wall mounted installation
Application Scenarios

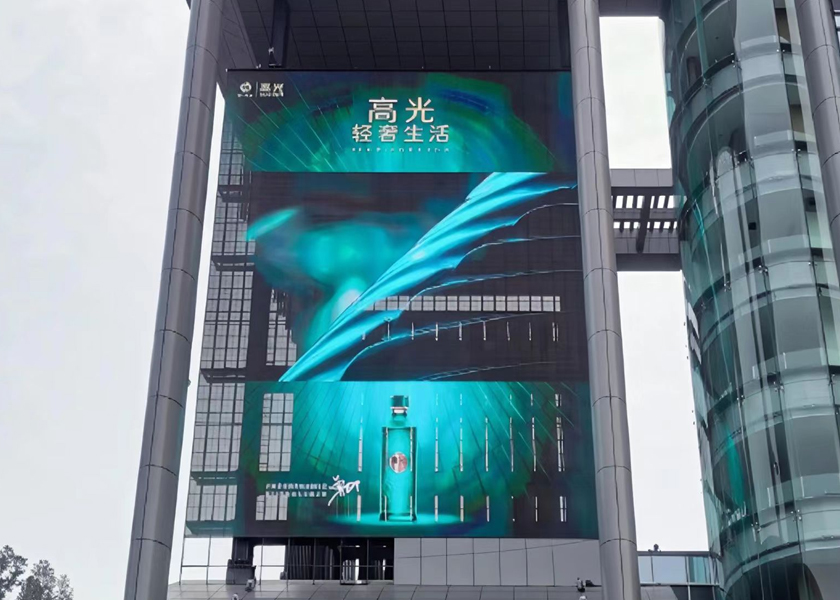

Wall-Mounted LED Screen
Single-Column Mounted LED Screen
Multi-Column Mounted LED Screen
Floor-to-Ceiling LED Screen
Surface-Mounted LED Screen
Product Parameter
OU-T Series LED Grille Screen Specifications
Pixel Pitch
P10.42
P15.6
P12.5
P15.6
P15.6-31.25
P31.25
SMD
SMD
SMD
DIP
DIP
DIP
DIP
Physical Density(dots/㎡)
9216
4096
6400
4096
2048
1024
Drving Mode
1/1s
1/1s
1/1s
1/1s
1/1s
1/1s
Module size(mm)
1000×10
1000×10
1000×10
1000×10
1000×10
1000×10
Module resolution(dots)
96×1
64×1
80×1
64×1
64×1
32×1
Cabinet size(mm)
500×1000×70
Cabinet resolution(dots)
48×96
32×64
40×80
32×64
16×64
16×32
Panel Weight(kg)
≤8KG/m2
Brightness(Nits)
7000
6000
10000
10000
6000
4000
Viewing Angle(H/V)
120°/120°
Best viewing distrance
≥5
≥5
≥5
≥5
≥5
Contrast Ratio
10000 : 1
Grey Level
14bit
Refresh Rate (Hz)
3840
Waterproof grade
IP65
Max power consumption(W/㎡)
≤800
Avg power consumption(W/㎡)
≤400
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
Related Products
IN-T Series Transparent, Lightweight, Customizable Shapes
RE-T SeriesLow Wind Resistance, High Permeability
OU-A SeriesIP65 Energy-Saving Aluminum LED Screen
✓
