RE-C Series Curved Rental LED Screen
Indoor & Outdoor Modular LED Screen with Dynamic Angles
- Adjustable Angles for Curved & Creative Stage Designs
- Front & Rear Maintenance Options
- Independent Power Supply for Reliability
- High Refresh Rate: 3840Hz for Flicker-Free Performance
- Seamless Splicing for Large Format Displays
- Quick Assembly & Disassembly for Rental Events
- Indoor & Outdoor Application with IP65 Waterproof Option
- Lightweight Die-Cast Aluminum Cabinet
✓
Thank You!
Your inquiry has been submitted successfully.
Our team will respond within 12 hours.
✗
Submission Failed
Something went wrong. Please try again or contact us directly.
Our team will respond within 12 hours
|
| |
|
⭐ Product Features
🛠️ Installation Methods
🏢 Application Scenarios
📊 Product Parameter
🔄 Related Products
|
|
|
| |

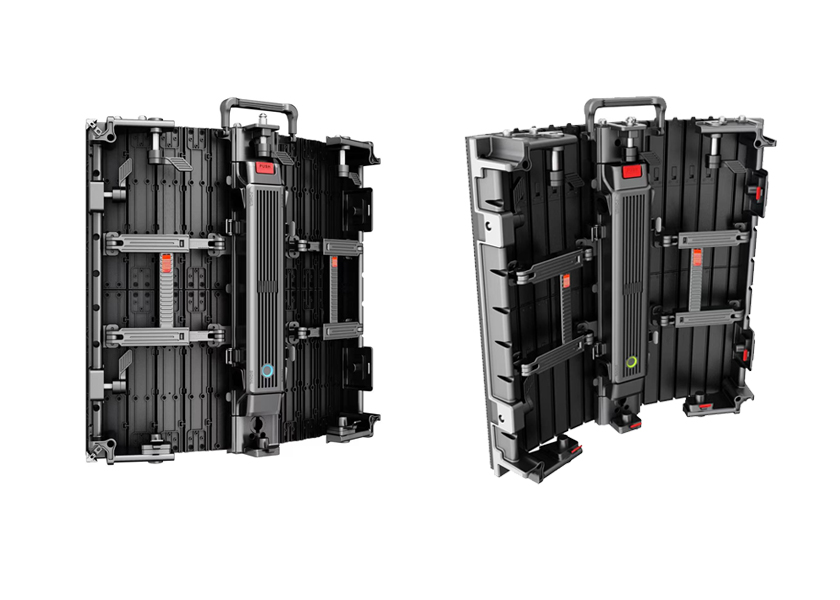

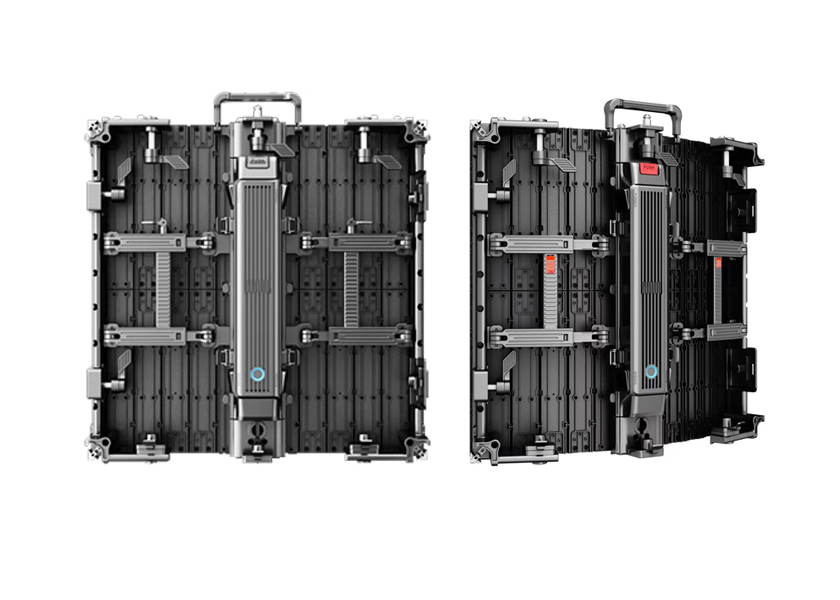

Inward & Outward Contouring
Mechanical angle adjustment enables natural inward/ outward curvature control of the screen surface, achieving dynamic physical wave-like visual effects.
|
| |

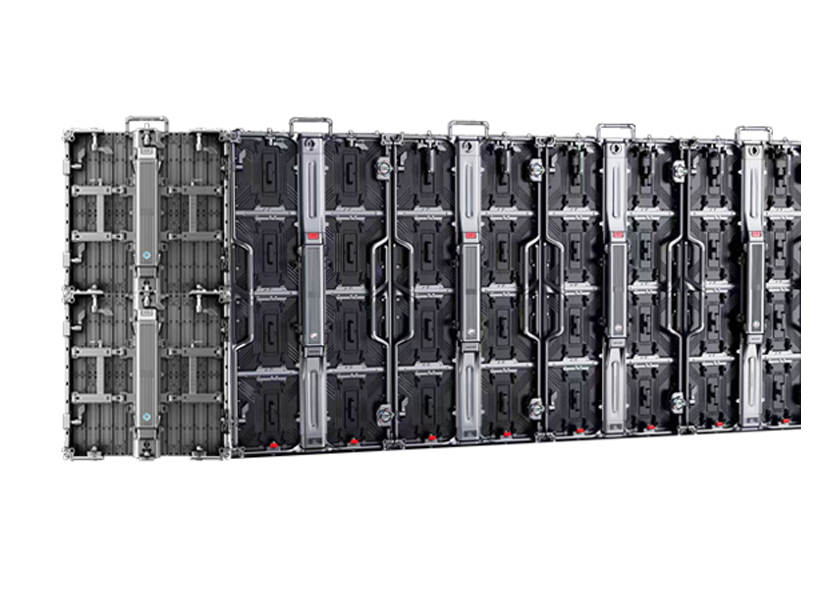

Multiple combinations
Mix and match screen cabinet configurations to create a dynamic visual language for any stage.
|
| |

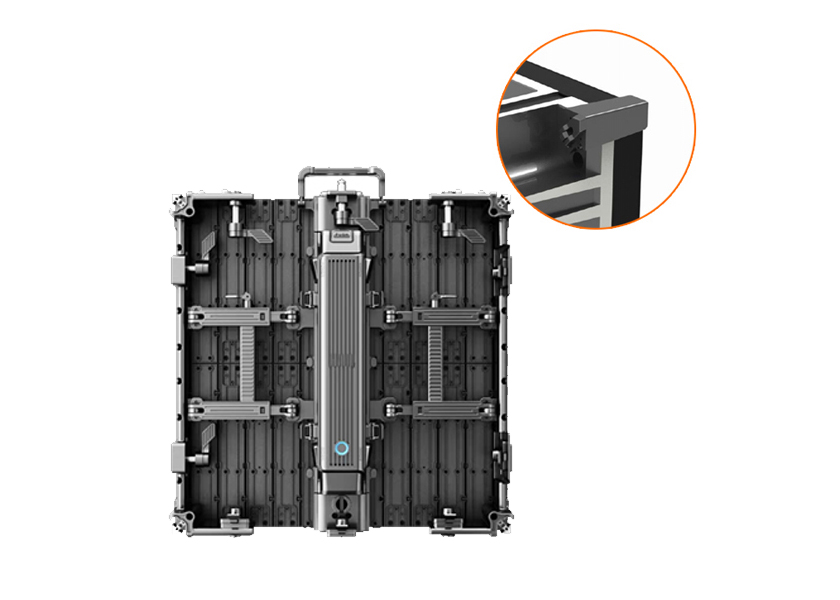

Corner Protection
The cabinet supports protective corners and a reinforced base to provide comprehensive module protection.
|
| |
Installation Methods
Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.
|
| |
|
| Application Scenarios |
Outdoor Festival LED Screen
Exhibition Booth LED Screen
Corporate Event LED Screen
Music Festival LED Screen
|
| |
|
| Product Parameter |
| RE-C Series Cabinet Size: 500x500mm / 500x1000mm (Modular) |
| Pixel Pitch |
P1.95 |
P2.604 |
P2.976 |
P3.91 |
| LED type |
SMD1515/SMD1921 |
SMD1515/SMD1921 |
SMD2121/SMD1921 |
SMD2121/SMD1921 |
| Physical Density(dots/㎡) |
262144 |
147928 |
123904 |
65536 |
| Drving Mode |
1/64s |
1/32s |
1/28s |
1/16s |
| Module size(mm) |
250×250 |
| Cabinet size(mm) |
500X500mm/500X1000mm |
| Cabinet resolution(dots) |
256x256/256x512 |
192x192/192x384 |
168x168/168x336 |
128x128/128x256 |
| Brightness(nits) |
900/4500 |
900/4500 |
900/4500 |
900/4500 |
| Panel Weight(kg) |
7.6/14 |
| Maintenance Mode |
Front & Rear |
| Materials |
Die Casting Aluminum |
| Viewing Angle(H/V) |
140°/140° |
| Best viewing distrance |
≥2 |
≥2.5 |
≥3 |
≥4 |
| Application |
Indoor & Outdoor |
| Refresh Rate (Hz) |
3840 |
| Waterproof (for outdoor) |
Front IP65, Rear IP54 |
| Max power consumption(W/㎡) |
800 |
| Avg power consumption(W/㎡) |
300 |
| Working Voltage |
AC100-240V,50/60Hz |
| Working temp/Humidity(℃/RH) |
-20~50℃/10%~95% |
| Stock temp/Humidity(℃/RH) |
-20~50℃/10%~95% |
|
| |
|
