⭐ Product Features
🛠️ Installation Methods
🏢 Application Scenarios
📊 Product Parameter
🔄 Related Products
Product Features
Protected Corners
Front/Rear Maintenance
Seamless Splicing
High Flexibility
Adjustable Angles
Wide Viewing Angle
High Refresh Rate
Lightweight And Slim

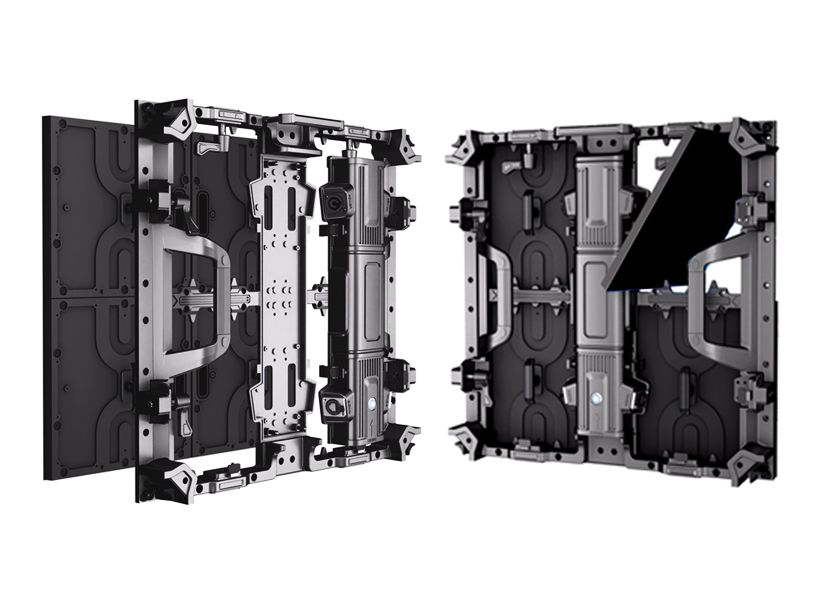

Front and Rear Maintenance
The LED rental screen features a fully modular design, allowing technicians to easily access and maintain every component—from the front LED modules to the rear power control system—directly from the front, minimizing replacement and maintenance time.

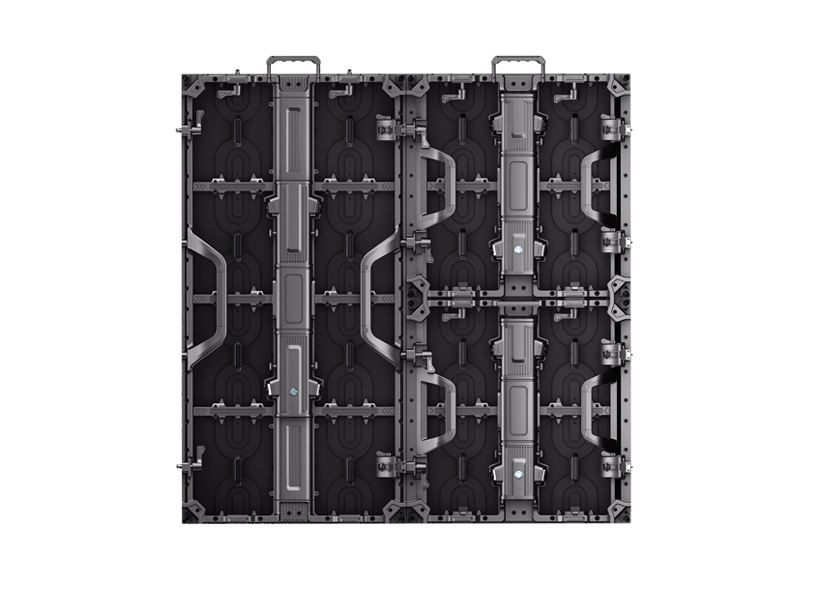

Quick Assembly
The compact and lightweight design enables rapid modular assembly with other cabinets, significantly reducing installation time and labor costs.
High Compatibility
Designed to be compatible with our curved series cabinets, this solution enables seamless right-angle transitions for standard LED screens and fixed-angle transitions for wave-series LED screens.

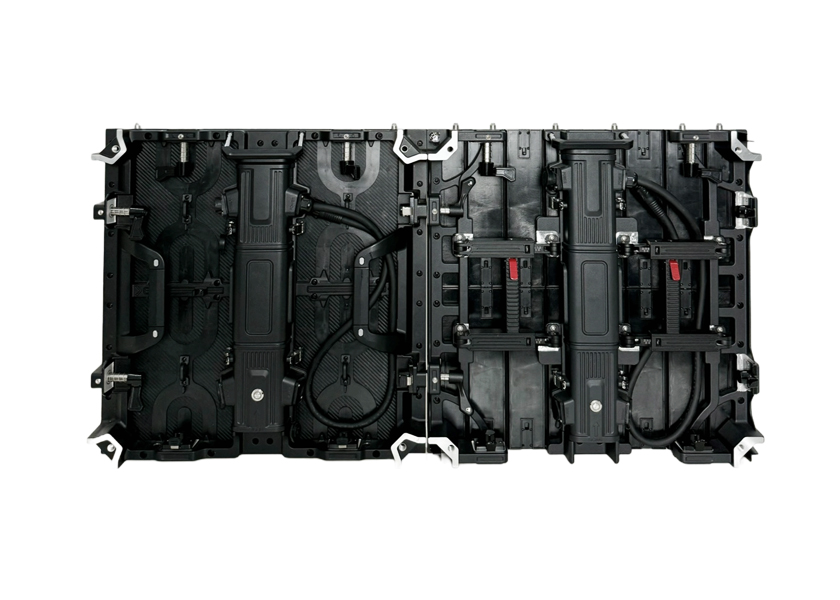

Installation Methods
Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.

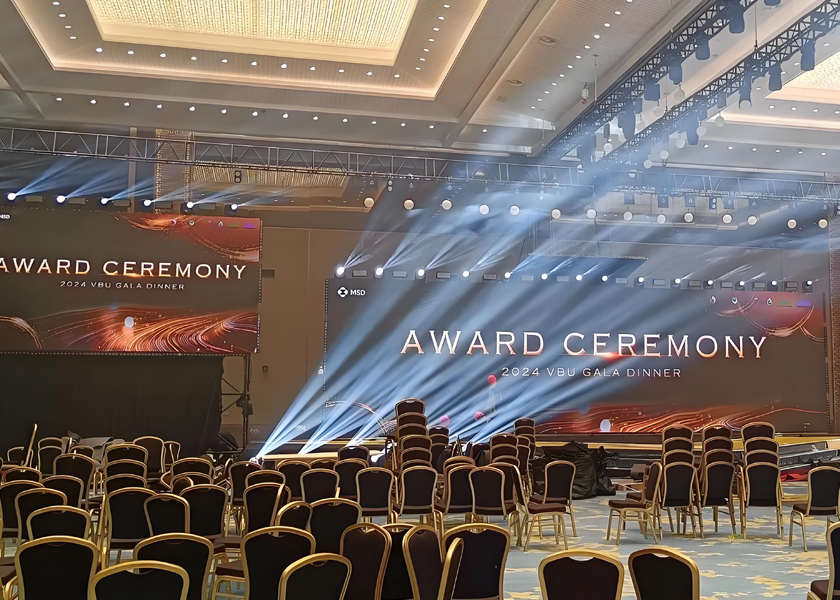

Application Scenarios
Concert Stage Rental LED
Exhibition Rental LED
Corporate Event LED
Festival Stage LED
Trade Show LED
Product Parameter
Pixel Pitch
P1.95
P2.604
P2.976
P3.91
LED type
SMD1515/SMD1921
SMD1515/SMD1921
SMD2121/SMD1921
SMD2121/SMD1921
Physical Density(dots/㎡)
262144
147928
123904
65536
Drving Mode
1/64s
1/32s
1/28s
1/16s
Module size(mm)
250×250
Cabinet size(mm)
500X500mm/500X1000mm
Cabinet resolution(dots)
256x256/256x512
192x192/192x384
168x168/168x336
128x128/128x256
Brightness(nits)
900/4500
900/4500
900/4500
900/4500
Panel Weight(kg)
7.6/14
Maintenance Mode
Front & Rear
Materials
Die Casting Aluminum
Viewing Angle(H/V)
140°/140°
Best viewing distrance
≥2
≥2.5
≥3
≥4
Application
Indoor & Outdoor
Refresh Rate (Hz)
3840
Waterproof (for outdoor)
Front IP65, Rear IP54
Max power consumption(W/㎡)
800
Avg power consumption(W/㎡)
300
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
Related Products
RE-B Series Hardwired Circuit
RE-B SeriesFlex Cable Connector
RE-E SeriesHardwired Circuit
✓
