Home - LED Screen Manufacturer > LED Screen Products > Rental LED Screen Manufacturer > RE-B Series Rental LED Screen

RE-B Series Rental LED Display - Flex Cable Connector Stage Screen

RE-B Series Rental LED Display - Front View

RE-B Series Rental LED Display - Side View

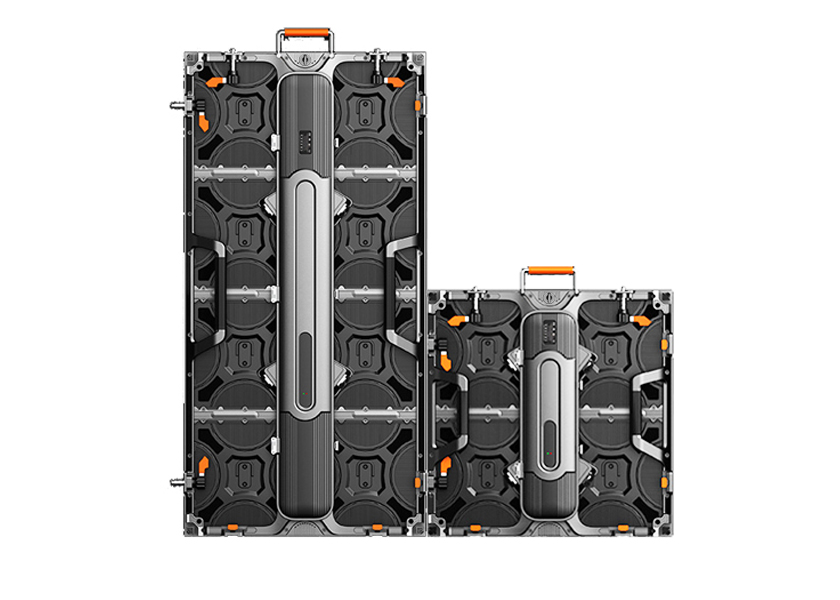

RE-B Series Rental LED Display - Connection Detail

RE-B Series Rental LED Display - Cabinet Close-up

RE-B Series Rental LED Screen

Indoor & Outdoor Modular Rental LED Screen with Flex Cable Connector

Front & Rear Maintenance for Easy Service
Independent Power Supply for Reliability
High Refresh Rate (3840Hz) for Flicker-Free Camera Capture
Seamless Splicing for Perfect Video Walls
Quick Assembly & Disassembly for Fast Setup
Flex Cable Connector for Reliable Signal Transmission
Supports Curved Splicing (Inner/Outer Arc ±7.5°)
Indoor & Outdoor Applications (IP65 Front Waterproof)

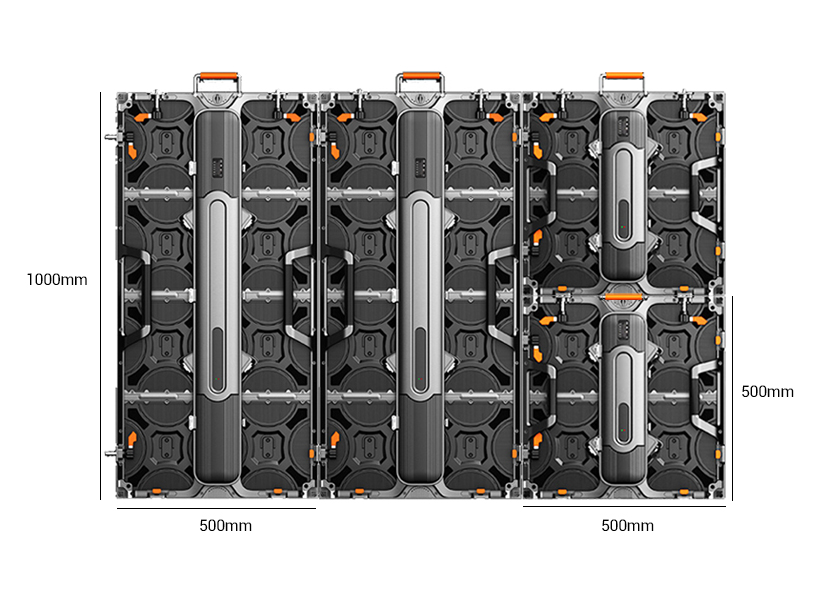

Cabinet Sizes: 500x500mm, 500x1000mm

✉ Email Us

Our team will respond within 12 hours

⭐ Product Features 🛠️ Installation Methods 🏢 Application Scenarios 📊 Product Parameter 🔄 Related Products

Product Features

Right Angle Splicing

Front/Rear Maintenance

Seamless Splicing

High Flexibility

IP65 Waterproof

Wide Viewing Angle

High Refresh Rate

Lightweight Slim Rental LED Cabinet - Easy Transport

Lightweight And Slim

Versatile Applications

From intimate weddings to large-scale concerts, our rental LED screens deliver stunning visuals for any indoor or outdoor event. Perfect for stages, church services, performances, and dynamic backdrops.

Rental LED Display for Concerts and Events - Stage Screen Application

RE-B Series Rental LED Cabinet - 500x500mm Modular Design

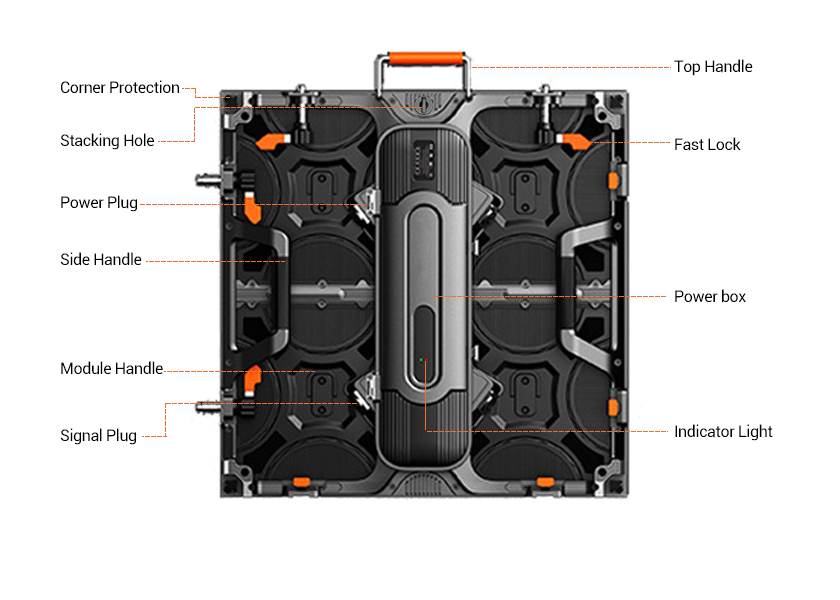

Screen Cabinet Details

The LED screen panel is JINGRUNS' newly designed private model. This upgraded rental LED video panel offers a beautiful appearance, multi-functionality, and enhanced durability for demanding event environments..

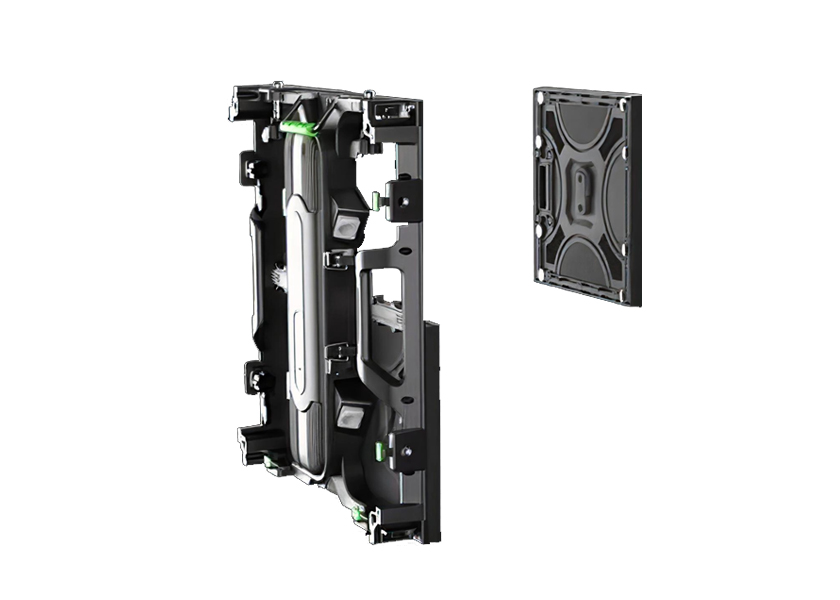

Front and Rear Maintenance

The front maintenance design allows technicians to service the screen directly from the front, eliminating the need to dismantle the rear structure for greater convenience.

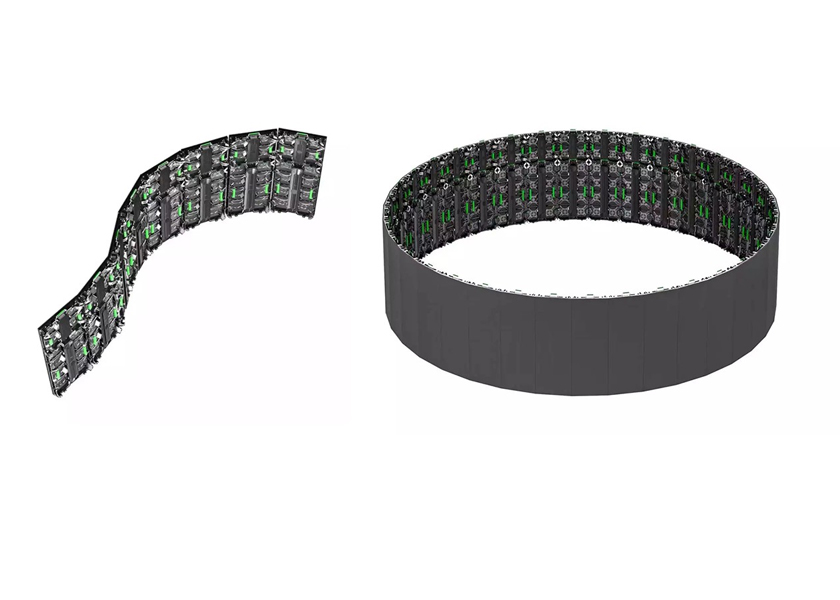

Creative Combination

Supports curved video walls with inner/outer arcs adjustable to 7.5°, 0°, and -7.5°, as well as right-angle and other creative combinations.

Installation Methods

Flexible installation options are supported to meet the diverse requirements of indoor and outdoor applications.

Application Scenarios

Rental LED Display - Concert Stage Application

Concert Stage LED Screen

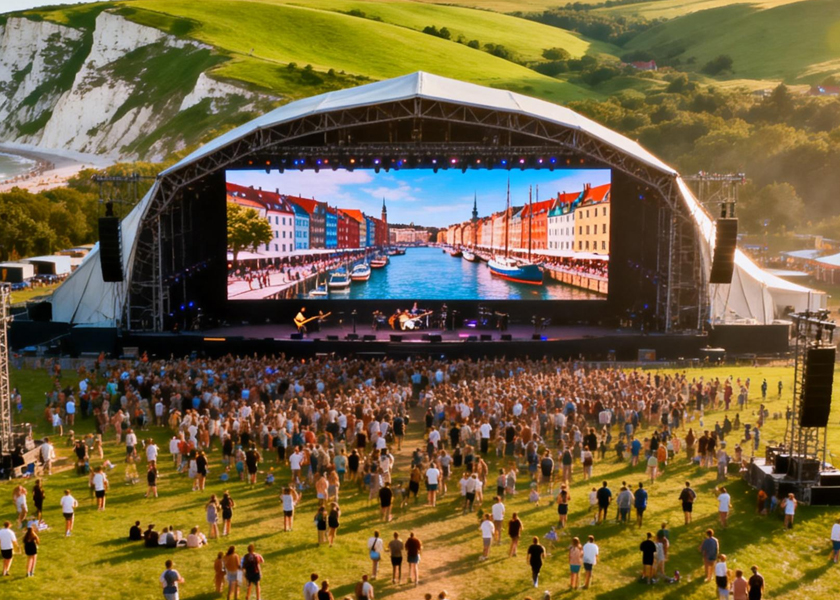

Rental LED Screen - Outdoor Festival Event

Outdoor Festival LED

Rental LED Display - Exhibition Booth Application

Exhibition LED Display

Rental LED Screen - Corporate Event Stage

Corporate Event Screen

Rental LED Display - Wedding Reception Application

Wedding LED Display

Product Parameter

RE-B Series Rental LED Display Specifications
Pixel Pitch	P1.95	P2.604	P2.976	P3.91
LED type	SMD1515/SMD1921	SMD1515/SMD1921	SMD2121/SMD1921	SMD2121/SMD1921
Physical Density(dots/㎡)	262144	147928	123904	65536
Drving Mode	1/64s	1/32s	1/28s	1/16s
Module size(mm)	250×250
Cabinet size(mm)	500X500mm/500X1000mm
Cabinet resolution(dots)	256x256/256x512	192x192/192x384	168x168/168x336	128x128/128x256
Brightness(nits)	900/4500	900/4500	900/4500	900/4500
Panel Weight(kg)	7.6/14
Maintenance Mode	Front & Rear
Materials	Die Casting Aluminum
Viewing Angle(H/V)	140°/140°
Best viewing distrance	≥2	≥2.5	≥3	≥4
Application	Indoor & Outdoor
Refresh Rate (Hz)	3840
Waterproof (for outdoor)	Front IP65, Rear IP54
Max power consumption(W/㎡)	800
Avg power consumption(W/㎡)	300
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)	-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)	-20~50℃/10%~95%
