⭐ Product Features
🛠️ Installation Methods
🏢 Application Scenarios
📊 Product Parameter
🔄 Related Products
Product Features
High Definition
Front Maintenance
Seamless Splicing
Quick Installation
Double-Sided Screen
Wide Viewing Angle
High Refresh Rate
Lightweight And Slim
Advantages
Double-sided screen not only features more creative and seamless splicing, but also delivers exceptional adaptability and excellent scalability. It provides more dynamic perspectives and engaging viewing experiences for supermarkets, shopping malls, and public transportation systems.

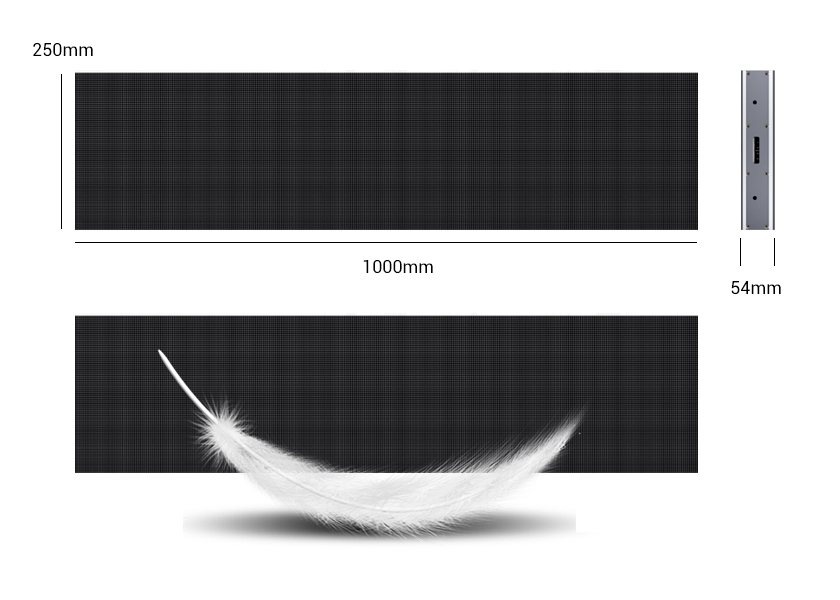

Ultra-Thin Screen
The screen cabinet features an ultra-thin design with a thickness of only 54mm and a lightweight structure weighing just 7KG. Offered in multiple sizes, it flexibly meets the installation needs of different scenarios and site requirements.

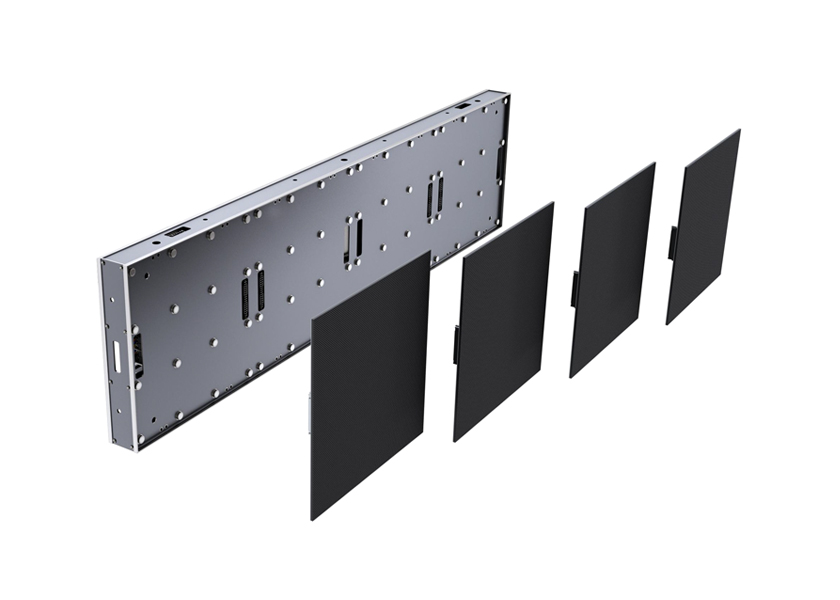

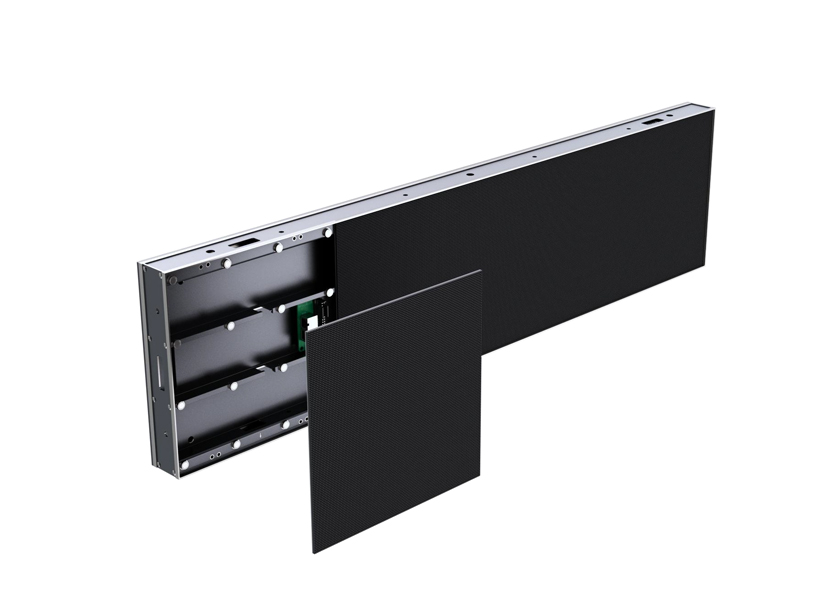

Front Maintenance
Front-access maintenance design enables direct servicing from the screen's front, eliminating the need for rear disassembly and streamlining maintenance procedures.

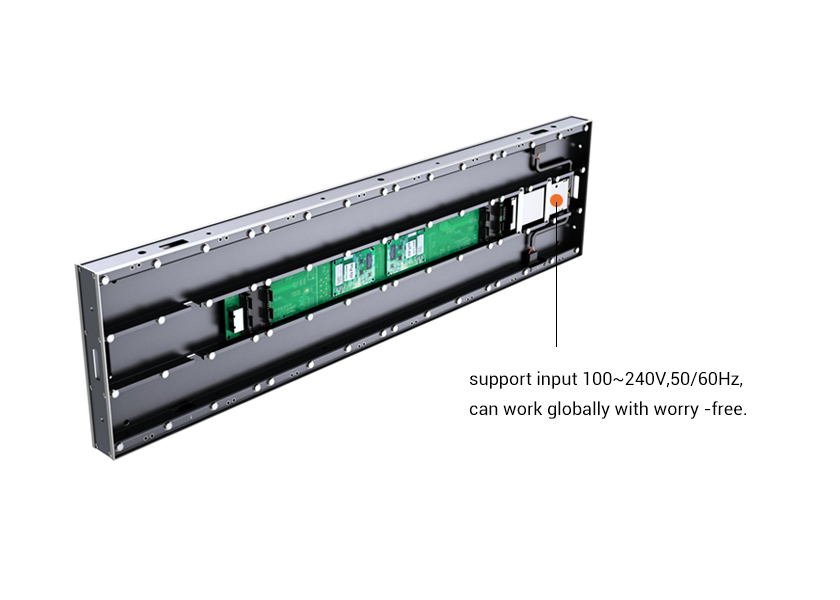

Cabinet Layout Diagram
A streamlined internal layout minimizes circuit complexity, facilitating easier installation and more efficient maintenance. Combined with reliable power supply systems, this design ensures extended LED screen lifespan and consistent performance.

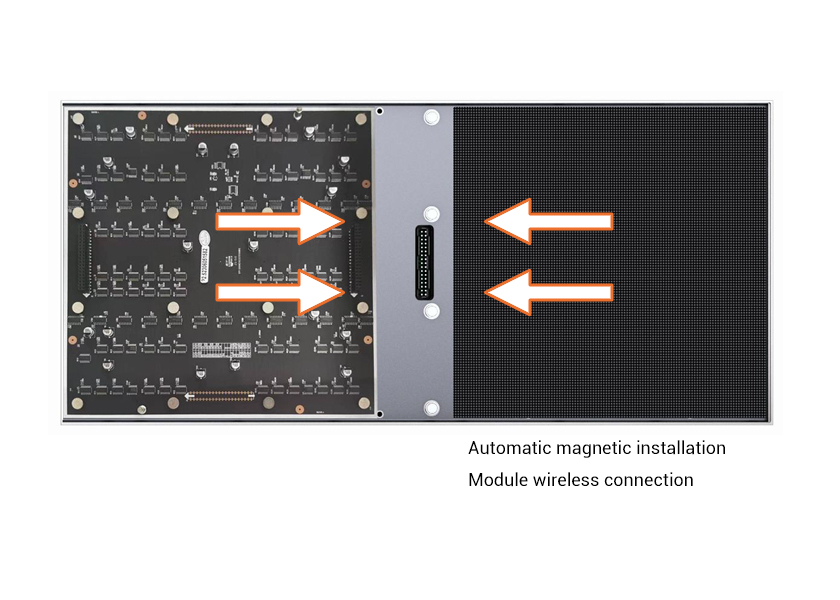

Rapid Installation HD LED Screen
The LED module features a wireless connection design, making installation remarkably simple and efficient. Without the need for complex cabling, it significantly reduces installation time and labor costs, while ensuring a cleaner and more reliable setup.

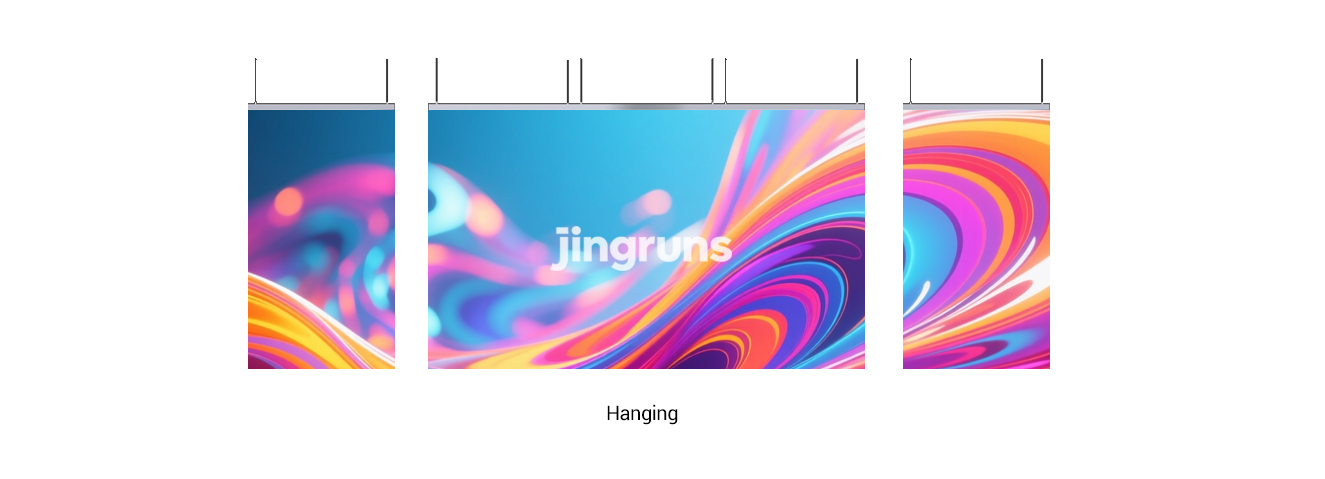

Installation Methods
Creative splicing, infinite imagination

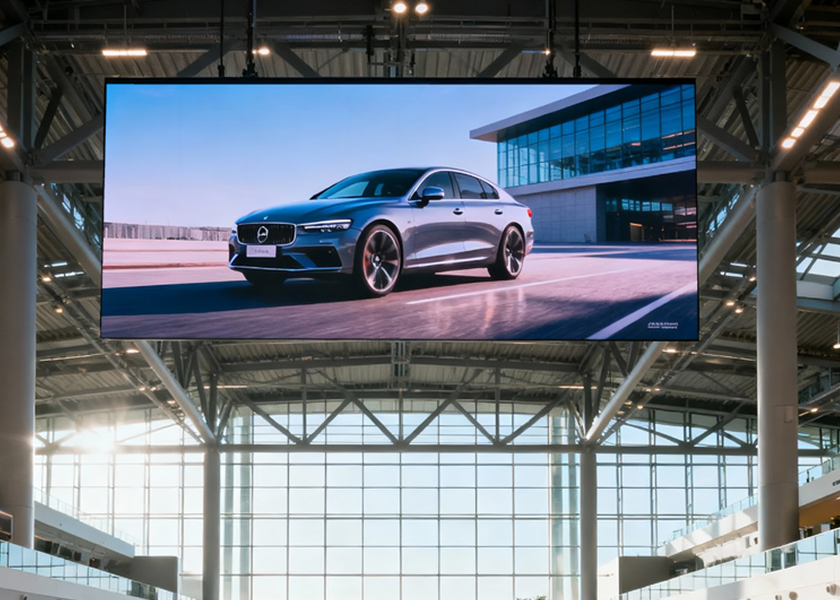

Application Scenarios
Supermarket Double-Sided LED
Exhibition Dual-Sided LED
Shopping Mall Double-Sided LED
Retail Double-Sided Display
Transportation Dual-Sided LED
Product Parameter
IN-D Series Cabinet Sizes: 1000x500mm, 1000x250mm, 750x250mm, 500x250mm (Ultra-Thin 54mm)
Pixel Pitch
P1.25
P1.56
P1.95
P2.5
P2.604
LED type
SMD1010
SMD1212
SMD1515
SMD1515
SMD1515
Physical Density(dots/㎡)
640000
409600
262144
160000
147456
Module size(mm)
200×200
160×160
128×128
100×100
96×96
Module resolution(dots)
250×250
250×250
250×250
250×250
250×250
Cabinet size(mm)
1000×500×33
1000×250×33
750×250×33
500×250×33
1000×500×33
1000×250×33
750×250×33
500×250×33
1000×500×33
1000×250×33
750×250×33
500×250×33
1000×500×33
1000×250×33
750×250×33
500×250×33
1000×500×33
1000×250×33
750×250×33
500×250×33
Cabinet resolution(dots)
800×400
800×200
600×200
400×200
640×320
640×160
480×160
320×160
512×256
512×128
384×128
256×128
400×200
400×100
300×100
200×100
384×192
384×96
288×96
192×96
Materials
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
Waterproof grade (front/GOB)
IP31
IP31
IP31
IP31
IP31
Brightness(CD/㎡)
≥600
≥600
≥800
≥800
≥800
Drive mode
1/50
1/40
1/32
1/25
1/32
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
Viewing angle(H/V)
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
Maintenance mode
Front
Front
Front
Front
Front
Gray scale
16bit
16bit
16bit
16bit
16bit
Max consumption(W/㎡)
350
350
350
350
350
Avg. consumption(W/㎡)
100-200
100-200
100-200
100-200
100-200
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
