Product Features
High Definition
Front Maintenance
Seamless Splicing
Quick Installation
Right Angle Splicing
Wide Viewing Angle
High Refresh Rate
Lightweight And Slim
Advantages
JINGRUNS 640x480mm fine-pitch LED display cabinet offers a range of mainstream pixel pitches, including P1.25, P1.53, P1.86, P2.0, and P2.5. Its high pixel density enables the creation of stunning 4K and 8K ultra-high-definition video walls. Beyond traditional cabinet installations, it supports rapid deployment with quick-locking mechanisms and a direct power connection. For wall-mounted applications, the cabinet can be securely installed with just a few screws, eliminating the need for a traditional steel support structure. This results in significant savings in both space and labor costs.

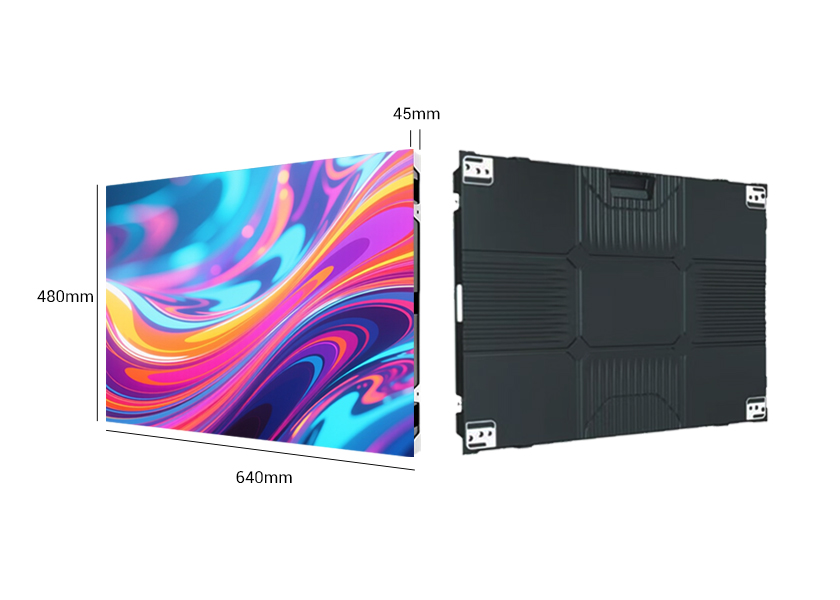

Thin and Light Weight
With an ultra-slim profile of just 45mm and a lightweight of only 7kg per cabinet—significantly thinner and lighter than comparable models—our fine pitch LED display is exceptionally portable. This slim design dramatically reduces shipping costs, allows for seamless integration into luxury interiors, and simplifies installation, enabling just one or two people to mount it anywhere with ease.

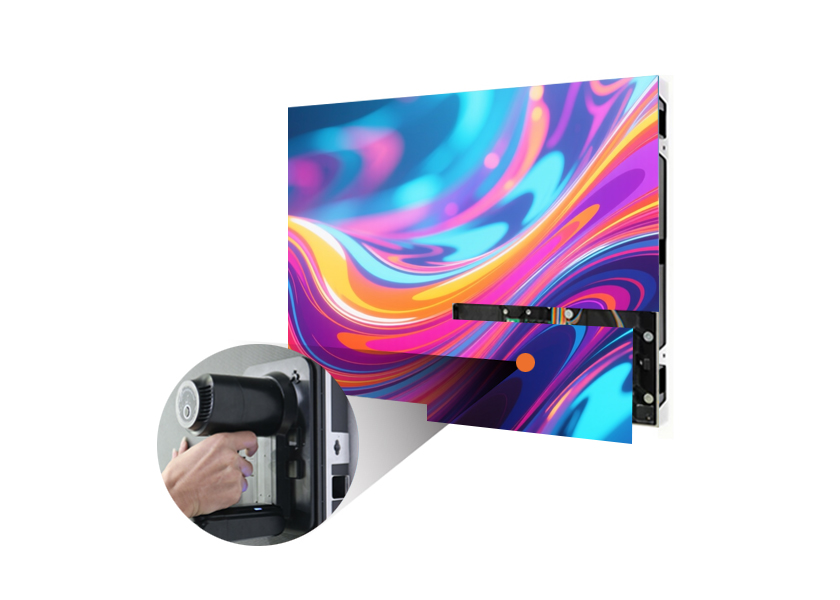

Front Maintenance
Front-access maintenance design enables direct servicing from the screen's front, eliminating the need for rear disassembly and streamlining maintenance procedures.

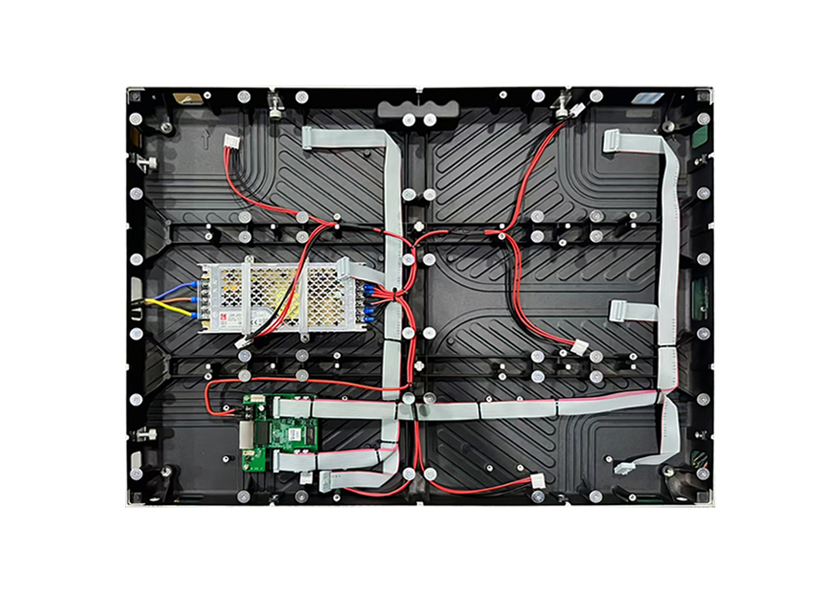

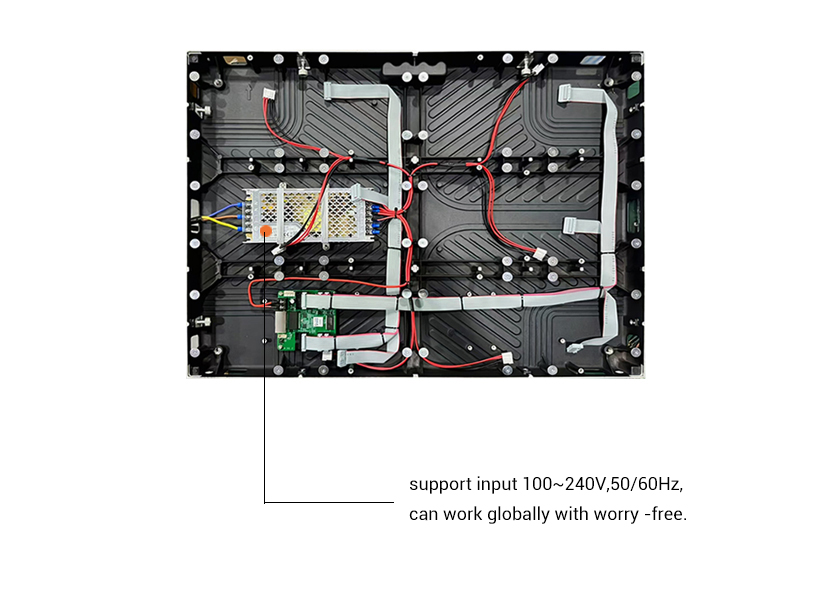

Cabinet Layout Diagram
A streamlined internal layout minimizes circuit complexity, facilitating easier installation and more efficient maintenance. Combined with reliable power supply systems, this design ensures extended LED screen lifespan and consistent performance.
Supports COB/GOB/ SMD LED Modules
Supporting a full range of LED packaging technologies—including COB, GOB, and SMD—our display system adapts to any project requirement, delivering superior protection, enhanced durability, and exceptional image quality.

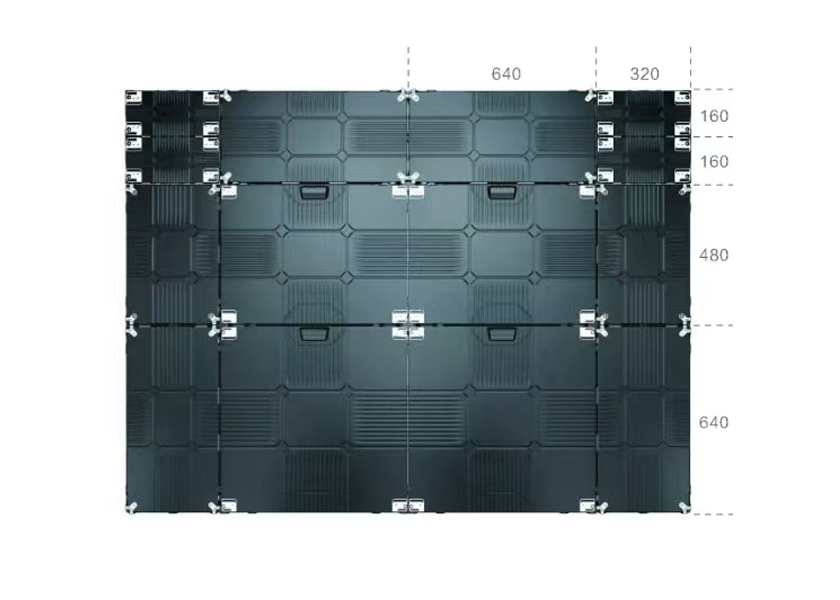

Installation Methods
Creative splicing, infinite imagination

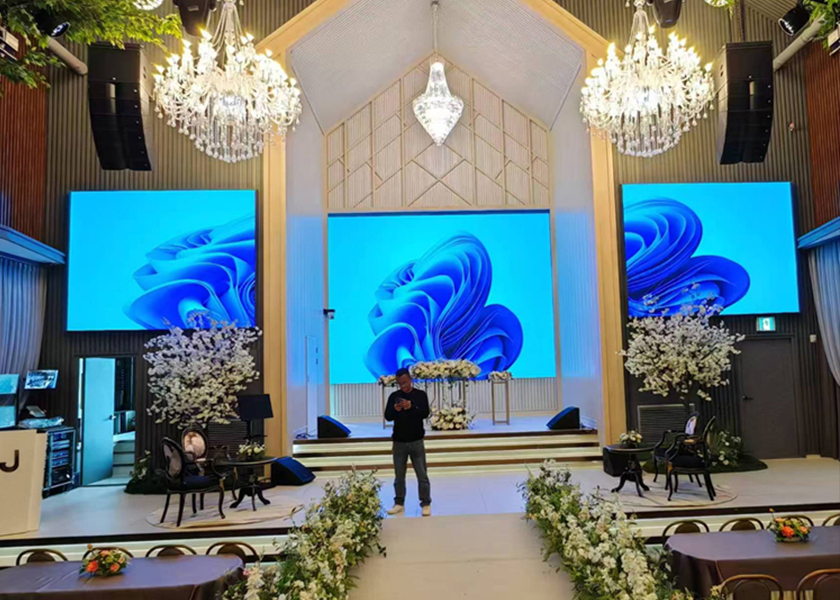

Application Scenarios
Conference Room LED
Event Stage LED
Exhibition LED Screen
Lobby Digital Signage
Retail LED Display
Product Parameter
IN-B Series Cabinet Sizes: 640x480mm, 640x640mm
Pixel Pitch
P1.25
P1.538
P1.86
P2
P2.5
LED type
SMD1010(S/G/C)
SMD1212(S/G/C)
SMD1515(S/G/C)
SMD1515(S/G/C)
SMD151572020(S/G/C)
Physical Density(dots/㎡)
640000
422500
288888
250000
160000
Module size(mm)
320X160
320X160
320X160
320X160
320X160
Module resolution(dots)
256×128
208×104
172×86
160×80
128×64
Maintenance mode
Front
Front
Front
Front
Front
Materials
Die Cast Aluminum
Die Cast Aluminum
Die Cast Aluminum
Die Cast Aluminum
Die Cast Aluminum
Brightness(CD/㎡)
600~700
600~700
600~700
600~700
≥800
Color temperature(K)
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
Drive mode
1/64
1/52
1/43
1/40
1/32
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
Viewing angle(H/V)
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
Gray scale
16bit
16bit
16bit
16bit
16bit
Max consumption(W/㎡)
560
560
560
560
560
Avg. consumption(W/㎡)
100-200
100-200
100-200
100-200
100-200
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
