Product Features
High Definition
Front Maintenance
Seamless Splicing
Quick Installation

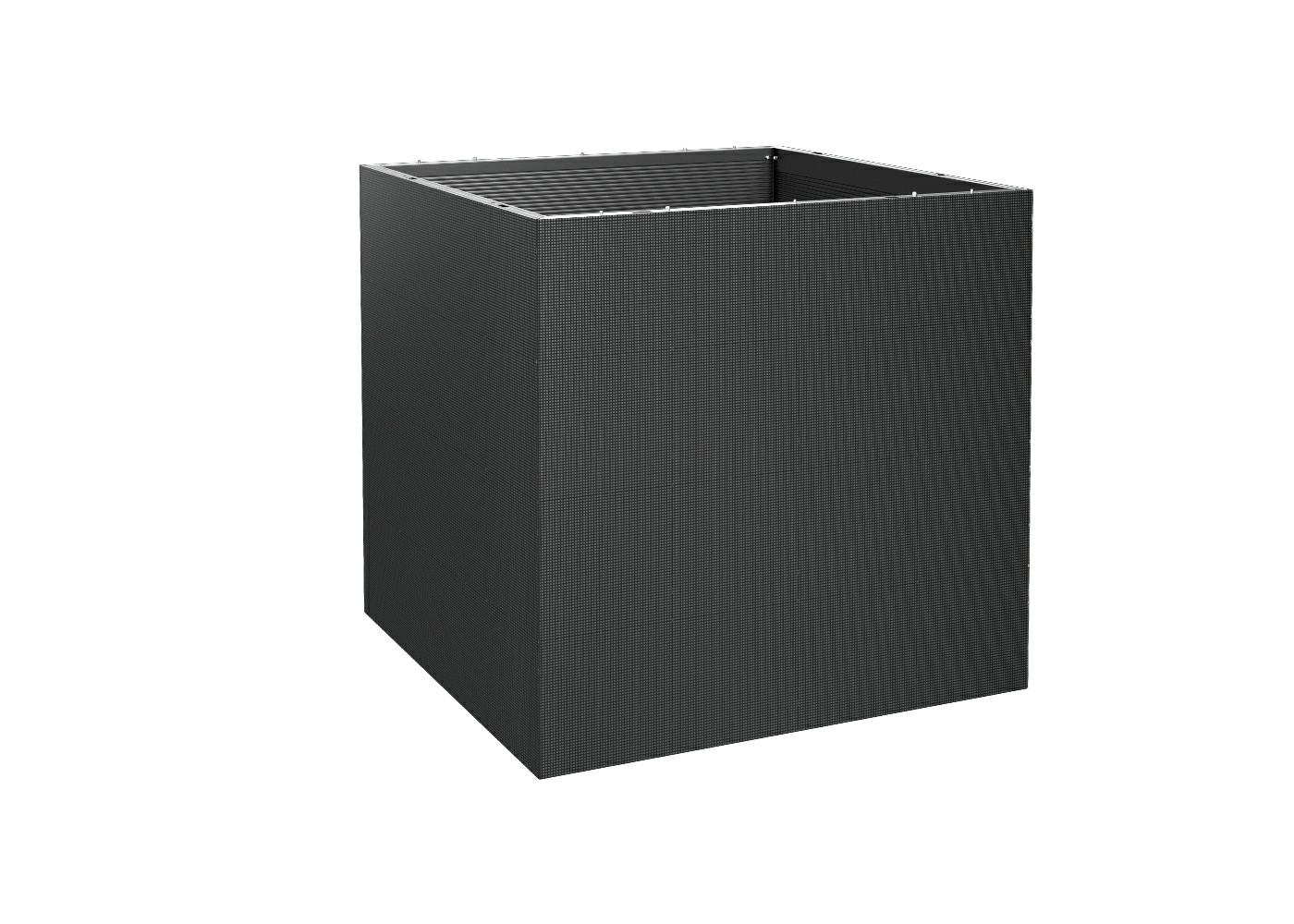

Right Angle Splicing
Wide Viewing Angle
High Refresh Rate
Lightweight And Slim
Advantages
We provide versatile HD LED display solutions tailored to diverse needs. Available in multiple sizes and customizable shapes,
our screens excel in retail advertising, indoor events, weddings, and more. Featuring advanced technology for superior brightness, vivid colors,
and crisp resolution, they transform any space into a captivating visual experience.

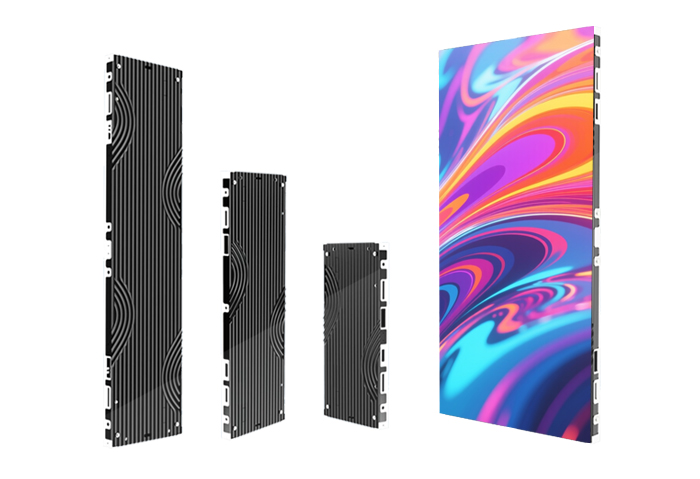

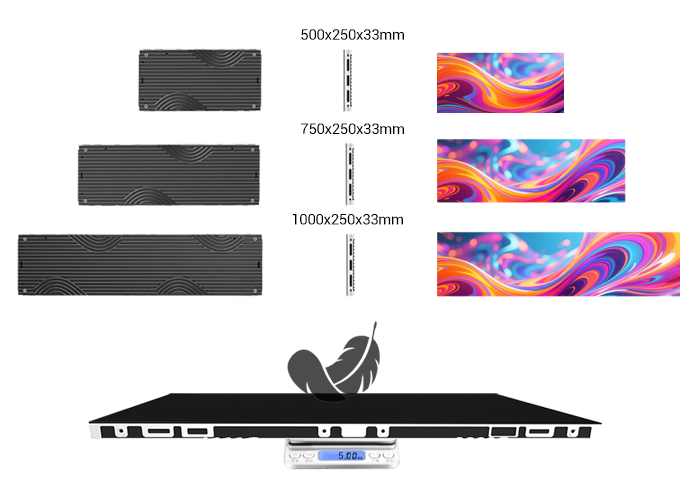

Ultra-Light, Multi-Size HD LED Panels
This precision die-cast aluminum cabinet features seamless integration and an ultra-slim 33mm profile.
Weight varies by model: 9.8kg (1000×500mm), 5.0kg (1000×250mm), 4.0kg (750×250mm), and 3.0kg (500×250mm).

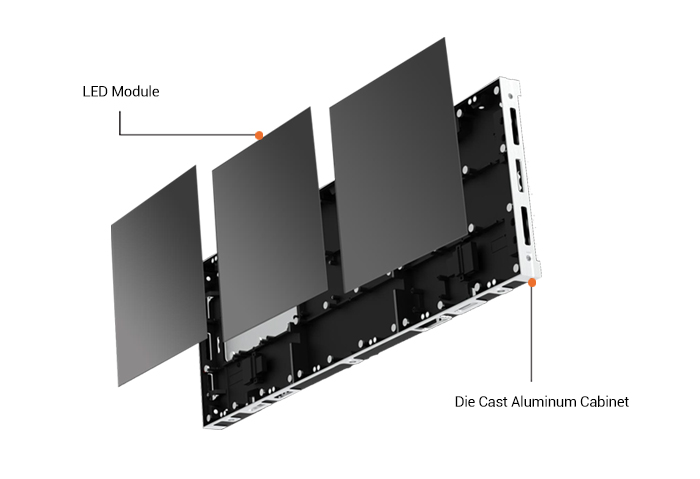

Front Maintenance
Front-access maintenance design enables direct servicing from the screen's front, eliminating the need for rear disassembly and streamlining maintenance procedures.

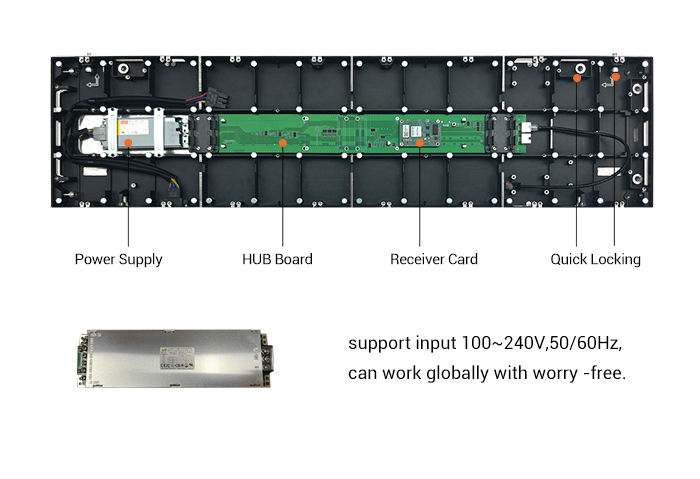

Cabinet Layout Diagram
A streamlined internal layout minimizes circuit complexity, facilitating easier installation and more efficient maintenance. Combined with reliable power supply systems, this design ensures extended LED screen lifespan and consistent performance.

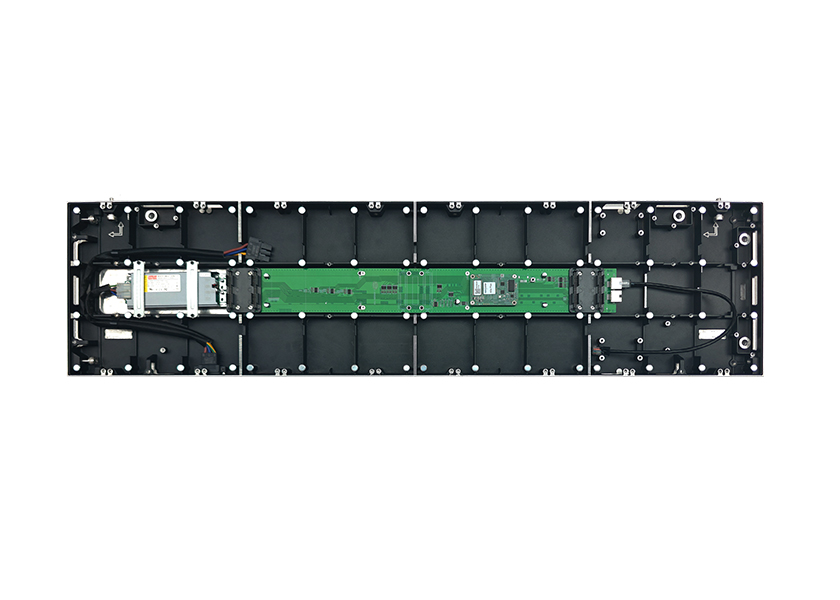

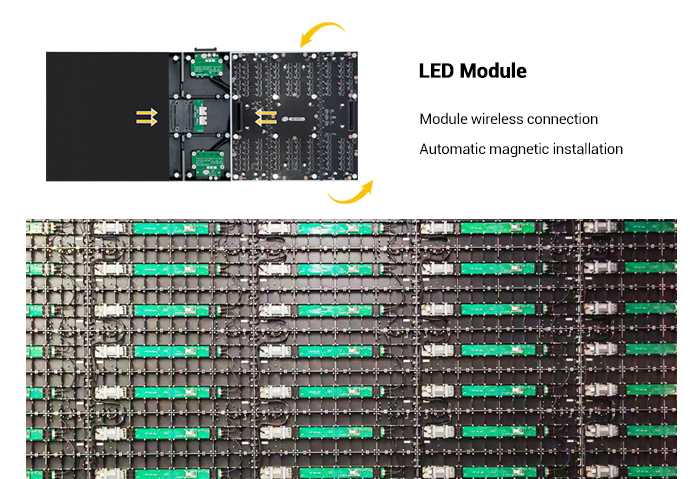

Quick-Install HD LED Screen
Pre-installation support and maintenance flexibility with no spatial constraints.
The integrated ultra-thin aluminum cabinet ensures high dimensional accuracy and flatness, featuring a simplified internal structure that eliminates complex wiring requirements.
Installation Methods
Creative splicing, infinite imagination
Application Scenarios

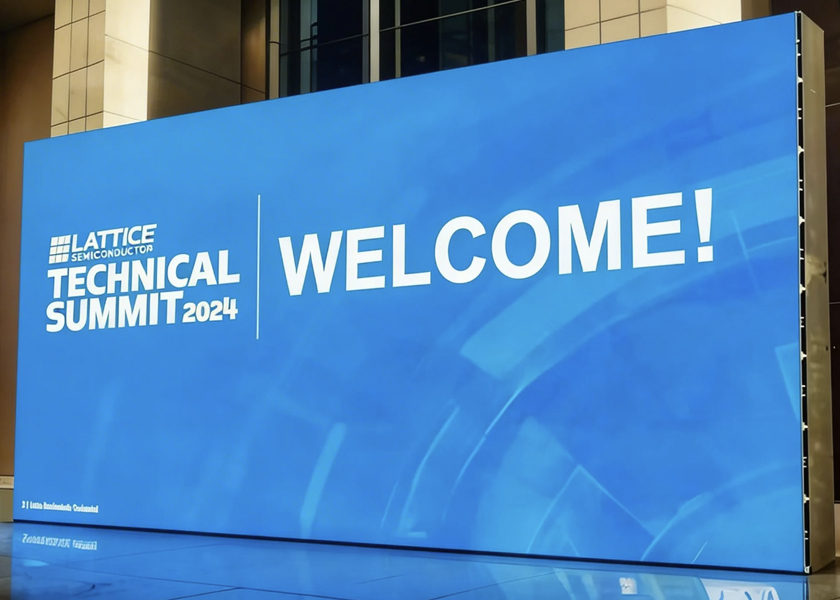

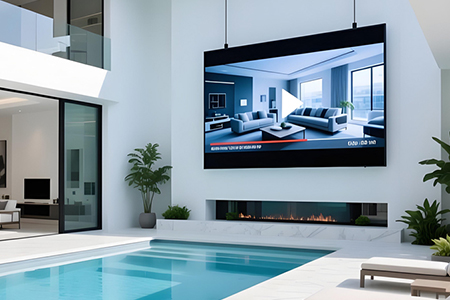

Conference Room LED

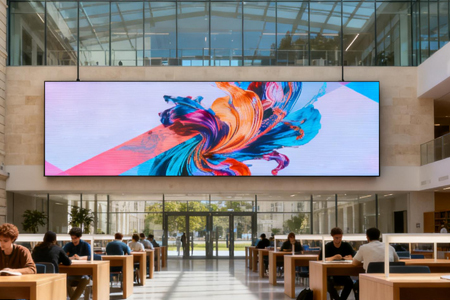

Event Stage LED
Exhibition LED Screen

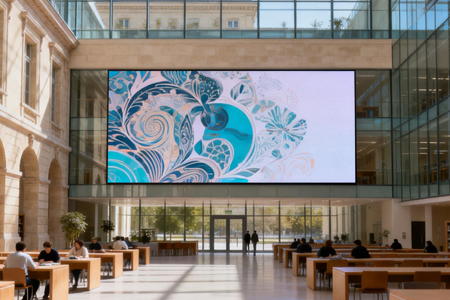

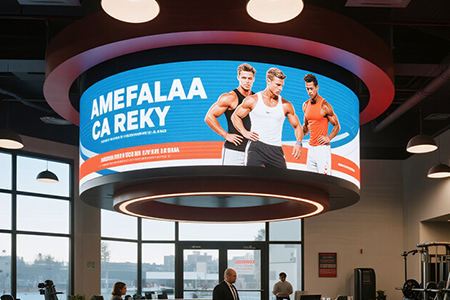

Lobby Digital Signage
Retail LED Display
Product Parameter
IN-A Series Cabinet Sizes: 1000x500mm, 1000x250mm, 750x250mm, 500x250mm
Pixel Pitch
P1.25
P1.56
P1.95
P2.5
P2.604
LED type
SMD1010
SMD1212
SMD1515
SMD1515
SMD1515
Physical Density(dots/㎡)
640000
409600
262144
160000
147456
Module size(mm)
200×200
160×160
128×128
100×100
96×96
Module resolution(dots)
250×250
250×250
250×250
250×250
250×250
Cabinet size(mm)
1000×500×33
1000×250×33
750×250×33
500×250×33
1000×500×33
1000×250×33
750×250×33
500×250×33
1000×500×33
1000×250×33
750×250×33
500×250×33
1000×500×33
1000×250×33
750×250×33
500×250×33
1000×500×33
1000×250×33
750×250×33
500×250×33
Cabinet resolution(dots)
800×400
800×200
600×200
400×200
640×320
640×160
480×160
320×160
512×256
512×128
384×128
256×128
400×200
400×100
300×100
200×100
384×192
384×96
288×96
192×96
Materials
Aluminum
Aluminum
Aluminum
Aluminum
Aluminum
Waterproof grade (front/GOB)
IP31
IP31
IP31
IP31
IP31
Brightness(CD/㎡)
≥600
≥600
≥800
≥800
≥800
Drive mode
1/50
1/40
1/32
1/25
1/32
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
Viewing angle(H/V)
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
Maintenance mode
Front
Front
Front
Front
Front
Gray scale
16bit
16bit
16bit
16bit
16bit
Max consumption(W/㎡)
350
350
350
350
350
Avg. consumption(W/㎡)
100-200
100-200
100-200
100-200
100-200
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
