Product Features
High Definition
Front Maintenance
Seamless Splicing
Quick Installation
Multiple Control Options
Wide Viewing Angle
High Refresh Rate
Lightweight And Slim
Advantages

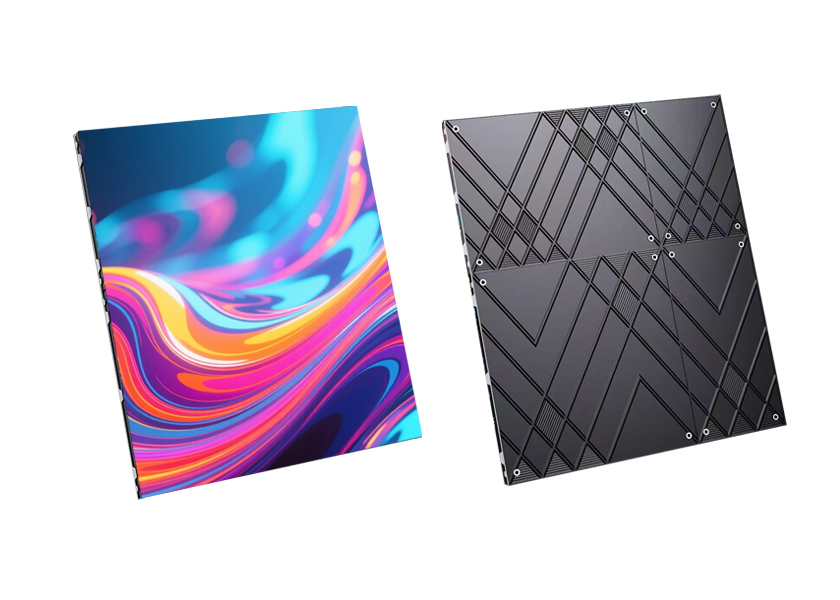

The newly designed ultra-thin indoor LED screen cabinet features enhanced creativity and seamless splicing, along with outstanding adaptability and scalability. This fine pitch LED display supports front maintenance and is available in both SMD and GOB LED technology, delivering exceptional image quality for shopping malls, supermarkets, and commercial displays

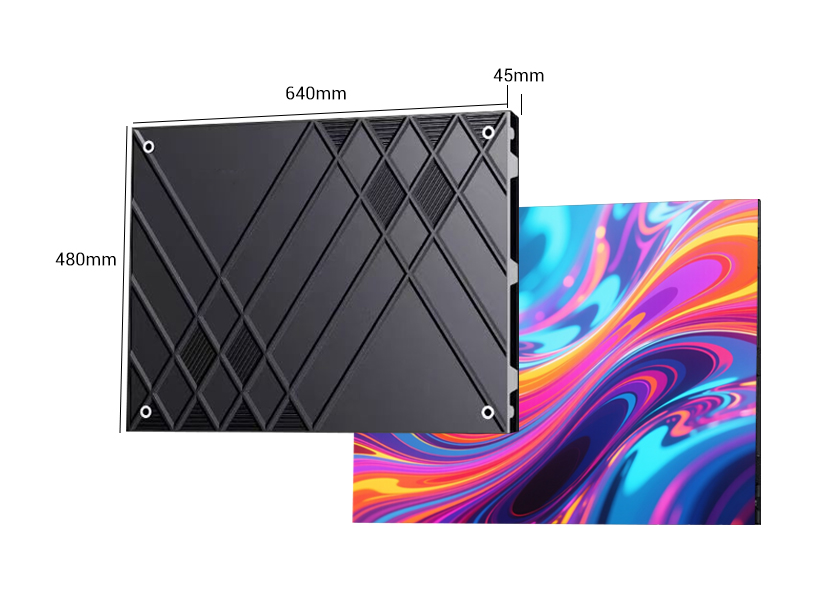

Thin and Light Weight
With an ultra-slim cabinet depth of just 45mm—significantly thinner and lighter than comparable models—our fine pitch LED display is exceptionally portable. This sleek design allows for seamless integration into luxury interiors. Moreover, its lightweight profile dramatically reduces shipping costs and simplifies installation, enabling just one or two people to mount it anywhere with ease.

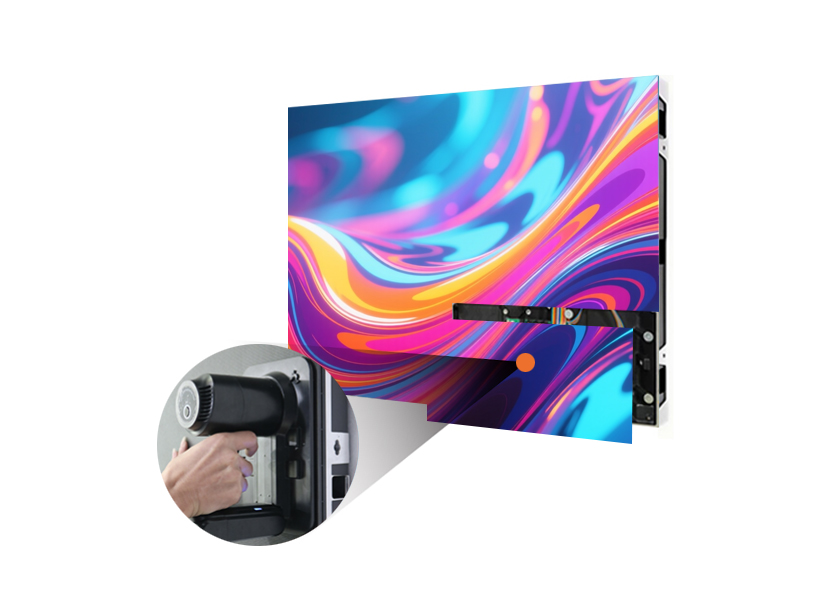

Front Maintenance
Front-access maintenance design enables direct servicing from the screen's front, eliminating the need for rear disassembly and streamlining maintenance procedures.

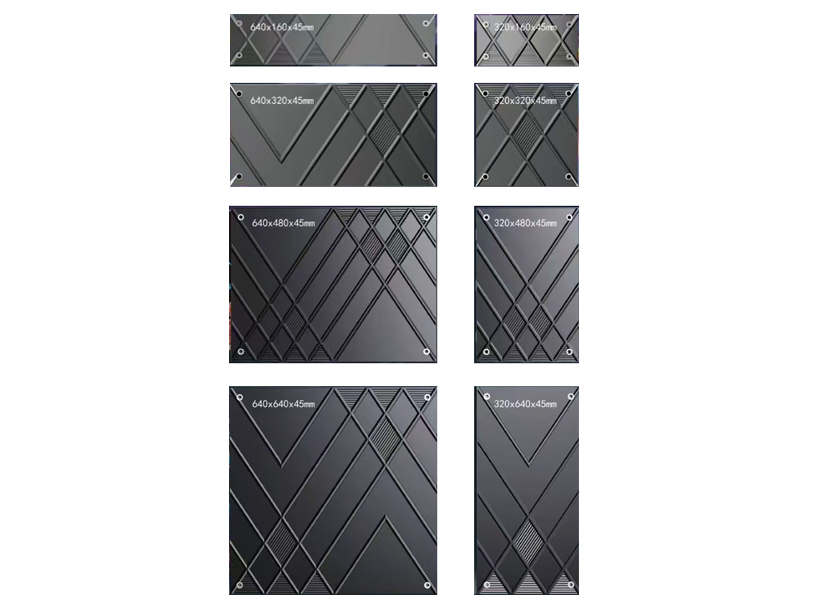

Wide Range Of Sizes
With a comprehensive selection of sizes, our LED display cabinets adapt effortlessly to the dimensional requirements of various installation scenarios.

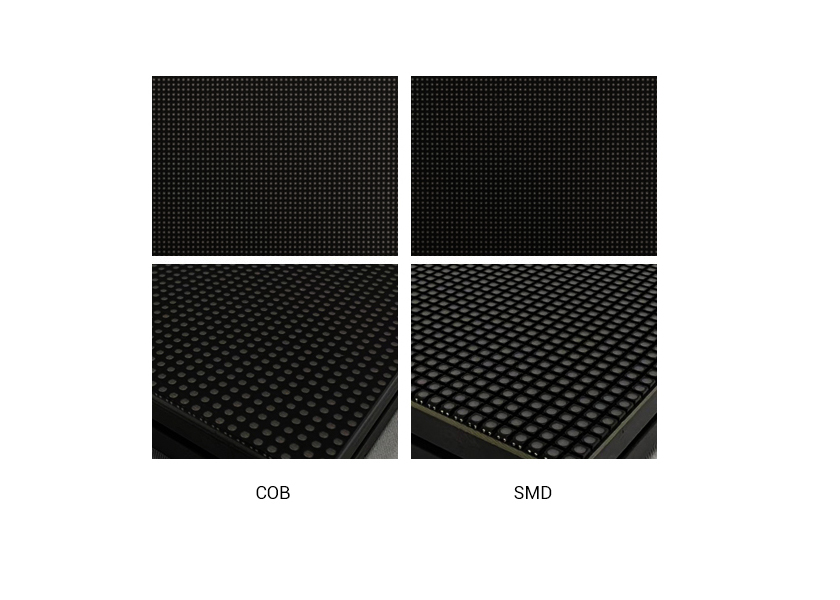

Supports GOB/ SMD LED Modules
Supporting a full range of LED packaging technologies—including COB, GOB, and SMD—our display system adapts to any project requirement, delivering superior protection, enhanced durability, and exceptional image quality.

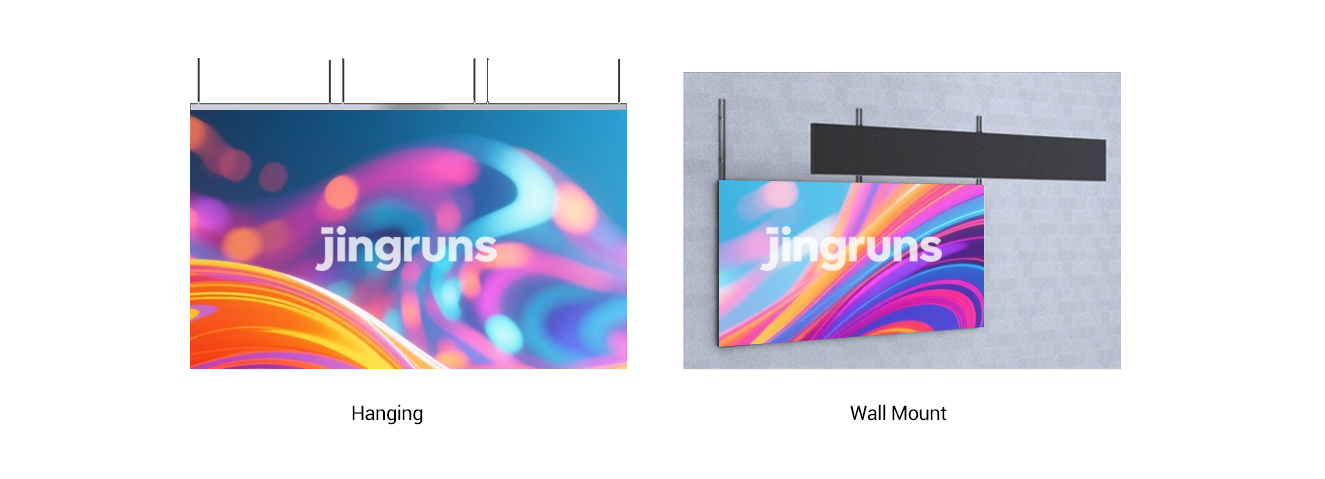

Installation Methods
Creative splicing, infinite imagination
Application Scenarios

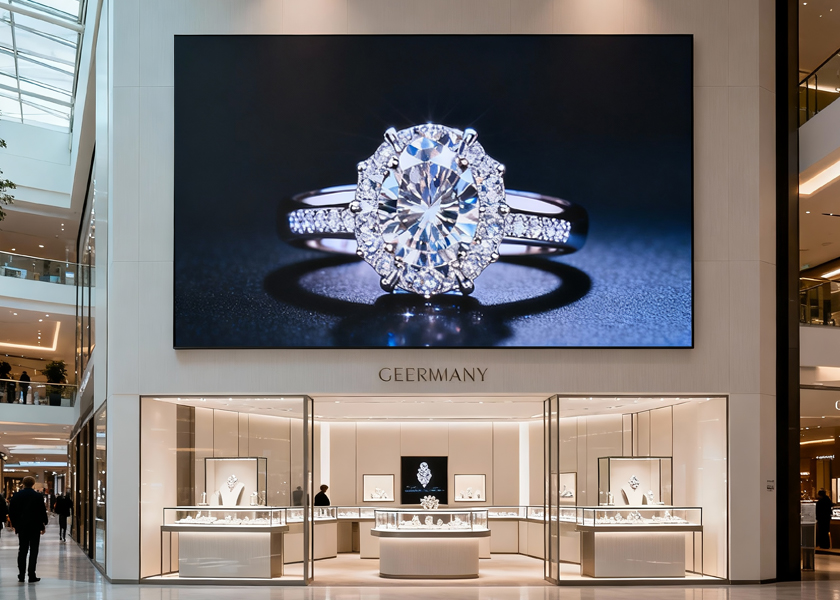

Shopping Mall LED Display
Supermarket LED Display
Corporate Lobby LED Display
Control Room LED Display
Exhibition Hall LED Display
Product Parameter
IN-C Series Cabinet Sizes: 640x480mm, 640x640mm
Pixel Pitch
P1.25
P1.538
P1.86
P2
P2.5
LED type
SMD1010(S/G/C)
SMD1212(S/G/C)
SMD1515(S/G/C)
SMD1515(S/G/C)
SMD151572020(S/G/C)
Physical Density(dots/㎡)
640000
422500
288888
250000
160000
Module size(mm)
320X160
320X160
320X160
320X160
320X160
Module resolution(dots)
256×128
208×104
172×86
160×80
128×64
Maintenance mode
Front
Front
Front
Front
Front
Materials
Die Cast Aluminum
Die Cast Aluminum
Die Cast Aluminum
Die Cast Aluminum
Die Cast Aluminum
Brightness(CD/㎡)
600~700
600~700
600~700
600~700
≥800
Color temperature(K)
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
5000-12000 Optional
Drive mode
1/64
1/52
1/43
1/40
1/32
Refresh rate(Hz)
≥3840
≥3840
≥3840
≥3840
≥3840
Viewing angle(H/V)
140°/140°
140°/140°
140°/140°
140°/140°
140°/140°
Gray scale
16bit
16bit
16bit
16bit
16bit
Max consumption(W/㎡)
560
560
560
560
560
Avg. consumption(W/㎡)
100-200
100-200
100-200
100-200
100-200
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
