Home - LED Display Manufacturer > LED Display Products > All-in-One LED Display Manufacturer > AL-B Series Smart Lamp Post Display

AL-B Series Smart Lamp Post LED Display - Street Light Screen

AL-B Series Smart Lamp Post Display - Front View

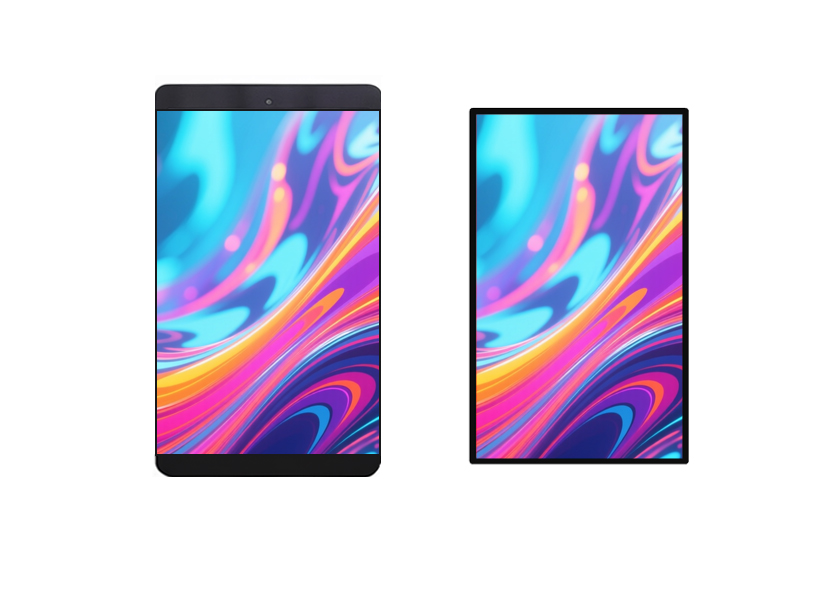

AL-B Series Smart Lamp Post Display - Side View

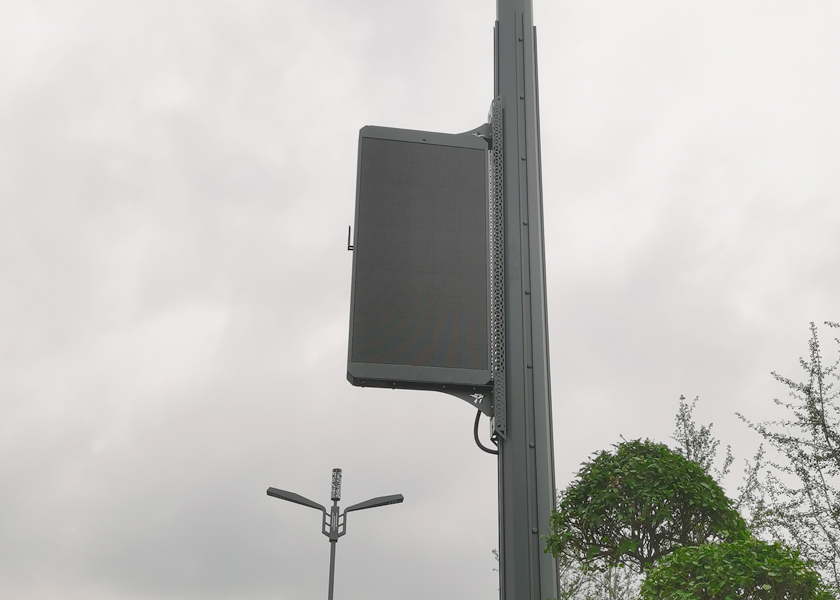

AL-B Series Smart Lamp Post Display - Installation Detail

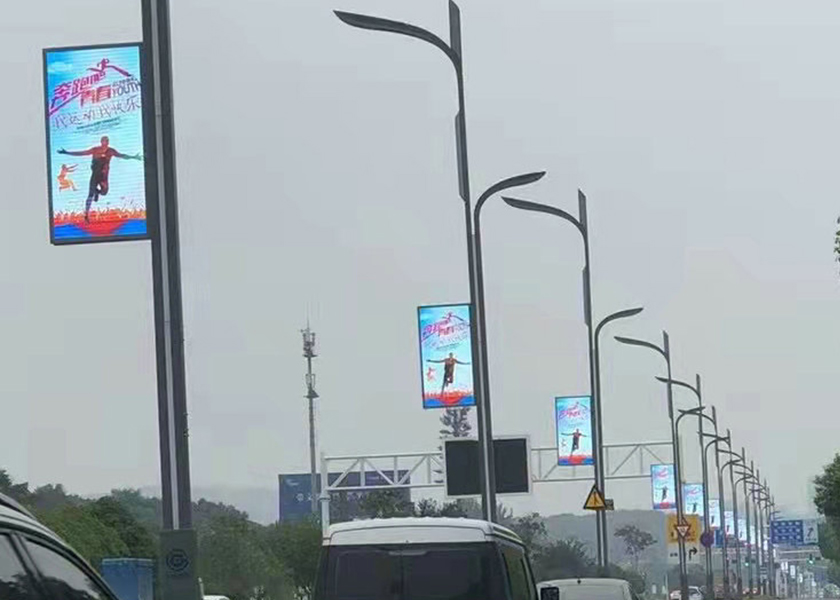

AL-B Series Smart Lamp Post Display - Double-Sided View

AL-B Series Smart Lamp Post LED Display | Smart City Street Light Screen

Integrated Smart City Street Light Screen with IP65 Waterproof

IP65 Waterproof - All-Weather Outdoor Use
High Brightness up to 4500 Nits
Modern, Minimalist Aesthetic Design
High Flatness & Seamless Integration
Supports Double-Sided Display Option
Multi-functional Integration with 5G/IoT
Quick Installation on Street Light Poles
Low Power Consumption - Energy Saving

✉ Email Us

Our team will respond within 12 hours

⭐ Product Features 🛠️ Installation Methods 🏢 Application Scenarios 📊 Product Parameter 🔄 Related Products

Product Features

Waterproof

High Brightness

Double-Sided LED Display - Smart City Lamp Post Screen

Supports Double-sided Display

Quick Installation

High Protection

Wide Viewing Angle

Multiple Control Methods

Low Power Consumption

Supports Appearance Customization

Designed to harmonize with the unique characteristics of each roadway, our lamp post screens are configured to match the height and form of existing street lamps. The result is a visually cohesive streetscape that accentuates urban landmarks and elevates promotional messaging.

Smart Lamp Post LED Display - Customizable Appearance Design

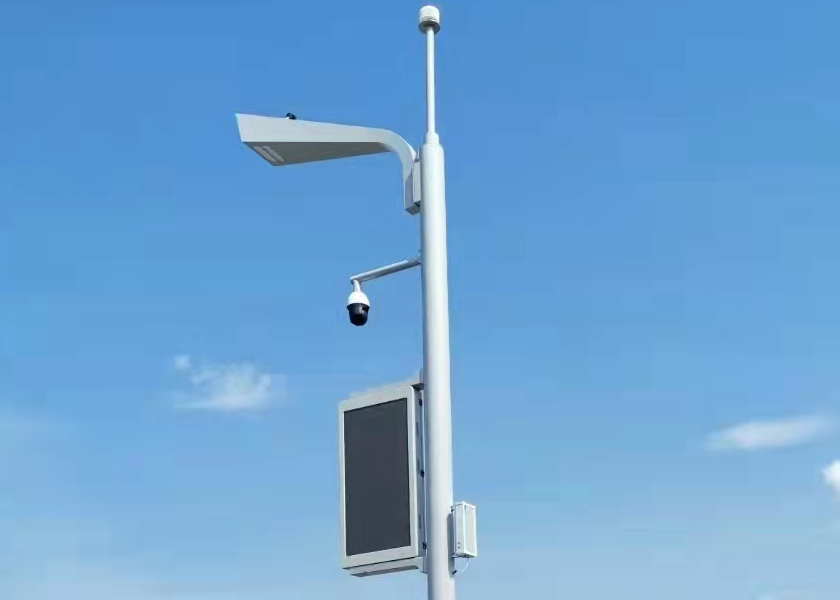

Multi-functional Integration

Our smart city LED pole screen goes beyond a single promotional function. By utilizing next-generation wireless networks and integrating advanced gateways, it achieves higher-level multifunctional performance and seamless operation, contributing to the development of a smarter city.

Installation Methods

Supports Streetlight Pole Installation

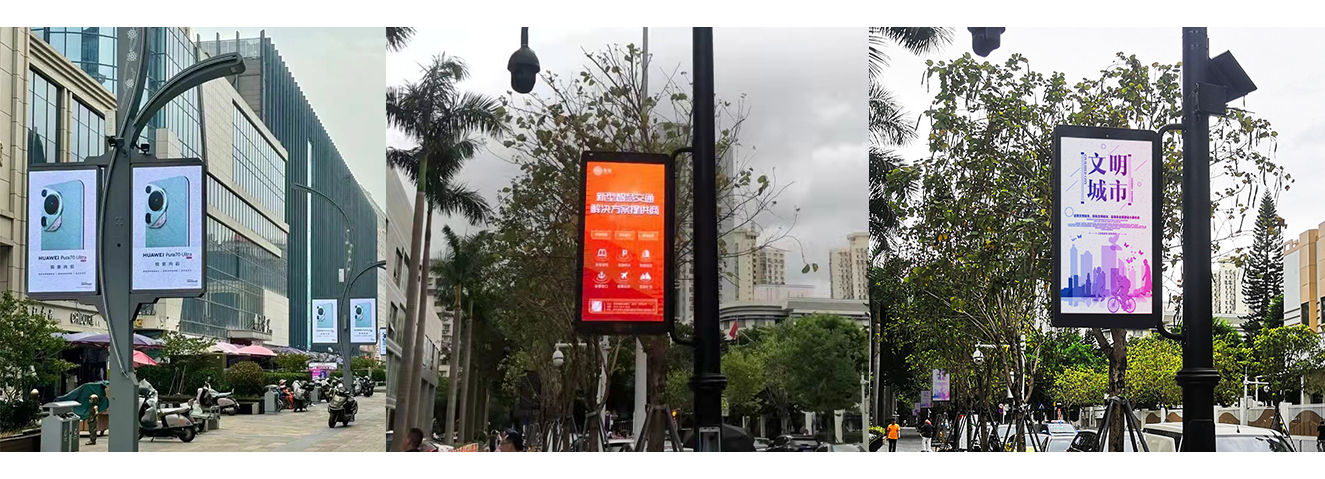

Street Light Pole Installation - Smart Lamp Post LED Display Mounting

Application Scenarios

Smart Lamp Post LED Display - Urban Street Advertising Application

Urban Street Digital Signage

Smart City LED Pole Screen - City Center Installation

City Center Smart Display

Street Light LED Screen - Smart City Application

Smart Street Light Display

Double-Sided Lamp Post Display - Urban Advertising

Double-Sided Advertising

Smart City Infrastructure

Product Parameter

Pixel Pitch	P2.5	P3	P4
SMD	1G1R1B	1G1R1B	1G1R1B
Physical Density(dots/㎡)	160000	111110	62500
Drving Mode	1/16s	1/16s	1/8s
Module size(mm)	320×160	192×192	256×128
Module resolution(dots)	128×64	64×64	64×32
Brightness(Nits)	4000-4500	4000-4500	5000-6000
Viewing Angle(H/V)	140°/140°
Best viewing distrance	≥2.5	≥3	≥4
Contrast Ratio	10000 : 1
Refresh Rate (Hz)	1920-3840
Waterproof grade	IP65
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)	-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)	-20~50℃/10%~95%
