⭐ Product Features
🛠️ Installation Methods
🏢 Application Scenarios
📊 Product Parameter
🔄 Related Products
Product Features
High Brightness
Quick Installation
Quick-Assembly Cabinet
Flexible Control Options
IP65 Waterproof
Wide Viewing Angle
High Refresh Rate
Lightweight
Ultra Light

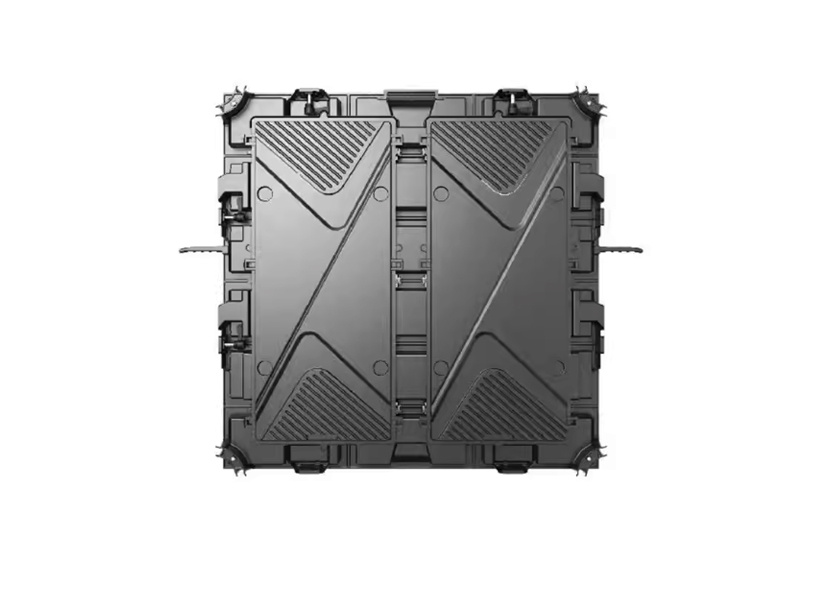

The screen features a high-precision die cast aluminum cabinet for a stylish and durable appearance. Weighing only 27 kilograms per unit, this lightweight design makes it an ideal choice for various installation environments and for upgrading previous LED screens.

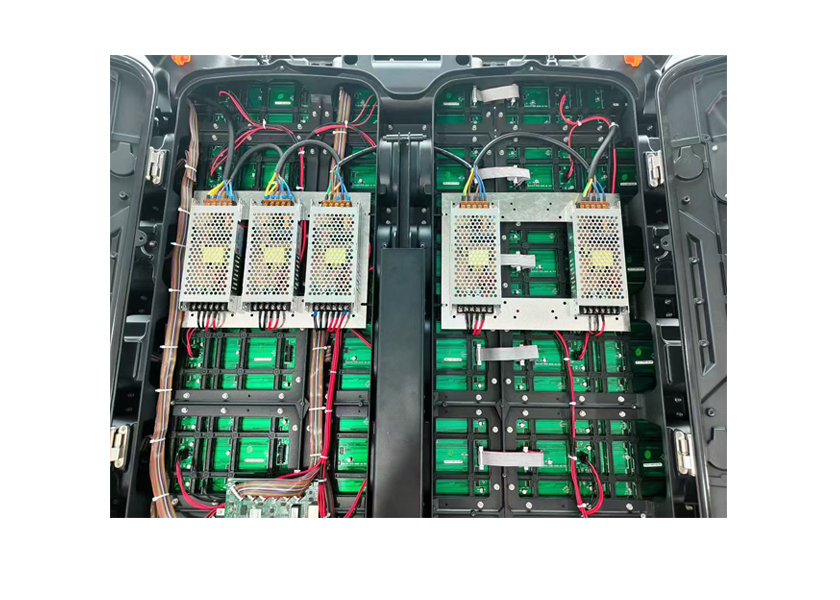

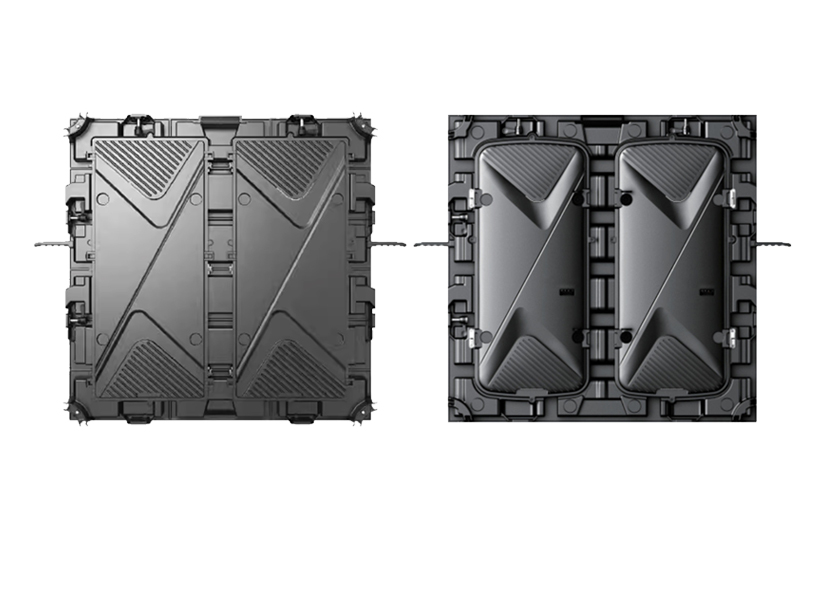

Front & Rear Access
Multiple LED display cabinets support 320x160mm and 320x320mm modules, and their panels can be maintained from the front or back as needed.

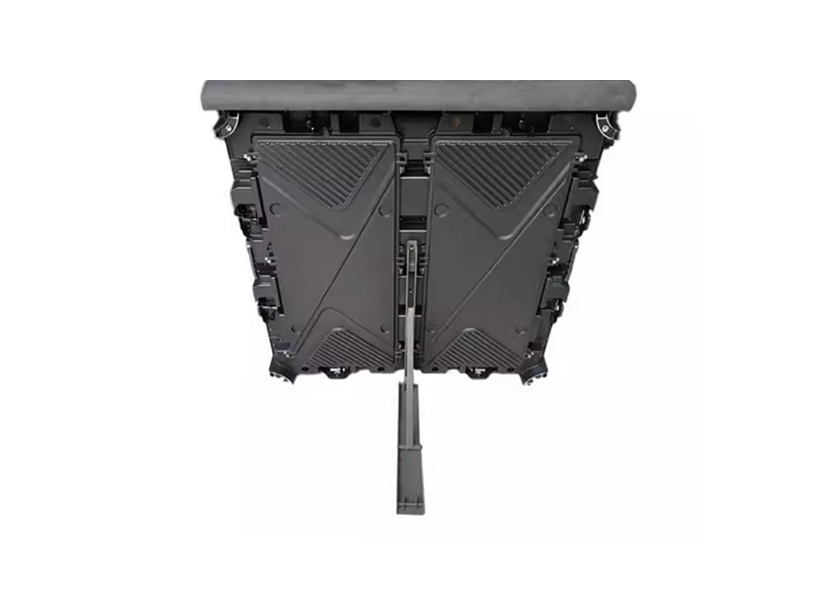

Upgradeable to Support Stadium Screens
ours screen is fully compatible with sports stadium screen stands, allowing you to fine-tune the screen's tilt angle. This adjustability ensures optimal sightlines, effectively meeting the demanding visual requirements of any sports venue or athletic field.
Installation Methods

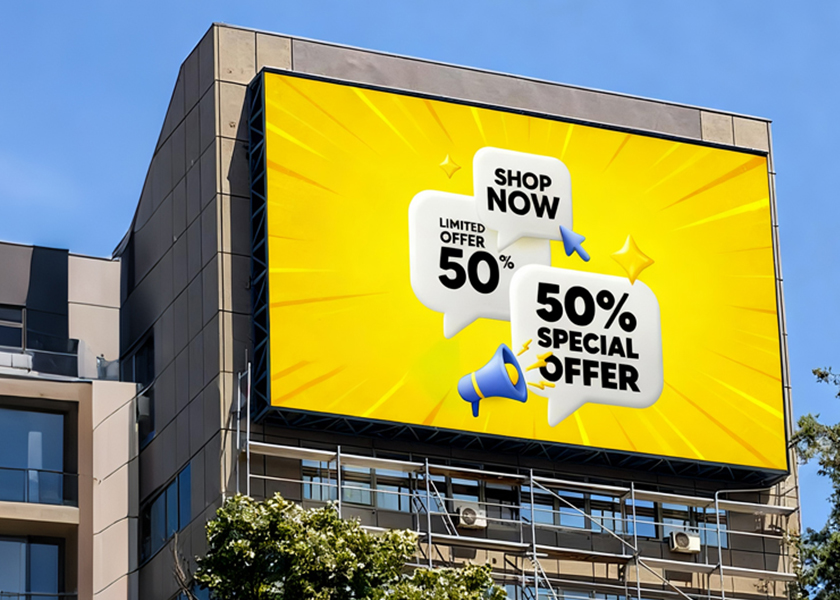

JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.
Application Scenarios
Wall-Mounted LED Screen
Single-Column Mounted LED Screen
Multi-Column Mounted LED Screen
Floor-to-Ceiling LED Screen
Surface-Mounted LED Screen
Product Parameter
OU-D Series Cabinet: 960x960mm - Lightweight Die-Cast Aluminum Outdoor LED Display
Pixel Pitch
P2.5
P3.076
P4
P5
P6.67
P8
P10
SMD
1G1R1B
1G1R1B
1G1R1B
1G1R1B
1G1R1B
1G1R1B
1G1R1B
Physical Density(dots/㎡)
160000
105688
22500
62500
22477
15625
10000
Drving Mode
1/16s
1/13s
1/10s
1/8s
1/6s
1/5s
1/4s
Module size(mm)
320×160
Module resolution(dots)
128×64
104×52
80×40
64×32
48×24
40×20
32×16
Cabinet size(mm)
960X960
Cabinet resolution(dots)
384×384
312×312
240×240
192×192
144×144
120×120
96×96
Module quantity(W xH)
3X6
Panel Weight(kg)
26
Installation & Maintenance
Rear & (Front)
Materials
Die-Cast Aluminum
Brightness(Nits)
4000-4500
4000-4500
5000-6000
5000-6000
5000-6000
4500-5000
5500-6500
Viewing Angle(H/V)
140°/140°
Best viewing distrance
≥2.5
≥3
≥4
≥5
≥7
≥8
≥10
Contrast Ratio
10000 : 1
Grey Level
10-14bit
Refresh Rate (Hz)
1920-3840
Waterproof grade
IP66
Max power consumption(W/㎡)
800-1000
Avg power consumption(W/㎡)
300-350
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
