Product Features
High Brightness
Single/Double-Sided
Custom Cabinets Available
Flexible Control Options
IP65 Waterproof
Wide Viewing Angle
High Refresh Rate
Supports Front Maintenance

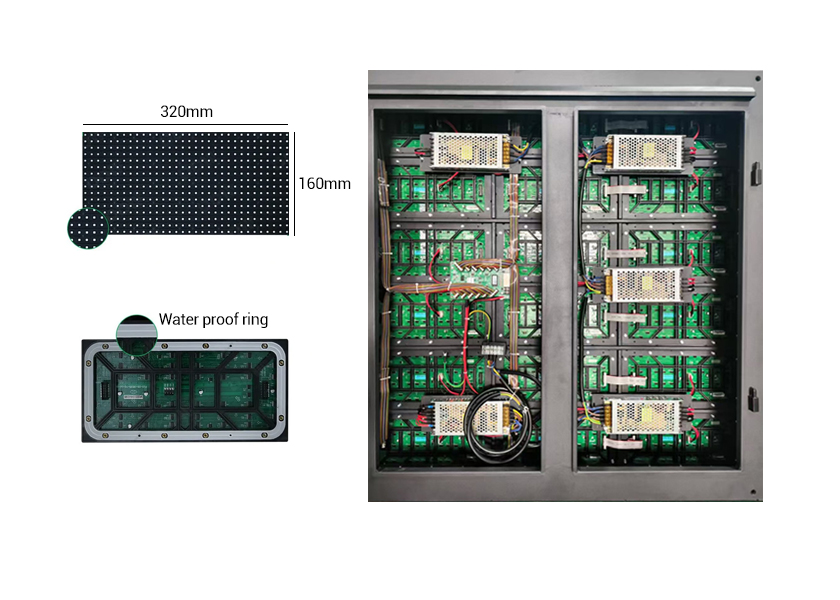

Rear Maintenance Screen
The rear maintenance screen cabinet is compatible with various common module models, offering high universality. It weighs only 40kg with a slim 130mm thickness. The reliable waterproof door design ensures simple maintenance and easy access to a clean, orderly interior.

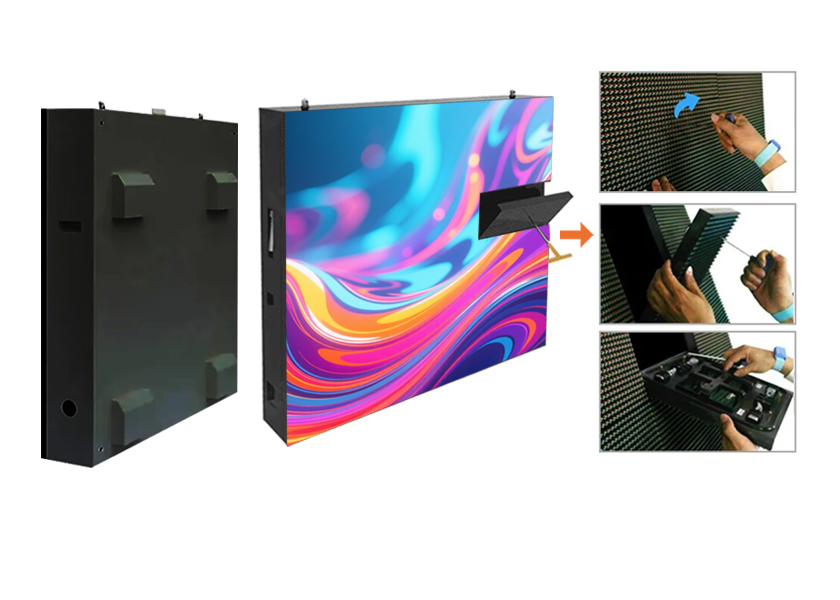

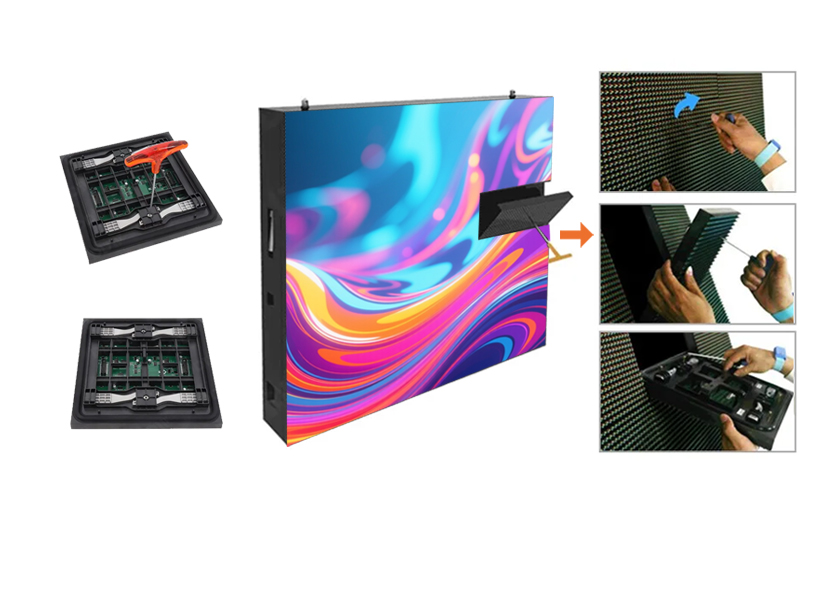

Front Maintenance Screen
Featuring a pure front maintenance design, all cabinet components—including power supplies, receiver cards, and other accessories—can be accessed and removed from the front. This makes upgrades and replacements quick and easy, making it ideal for space-limited outdoor installations.

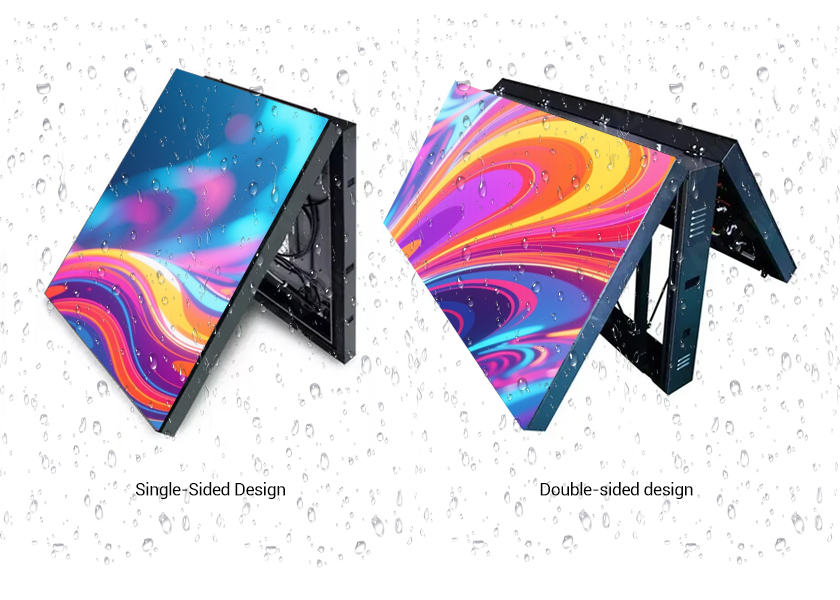

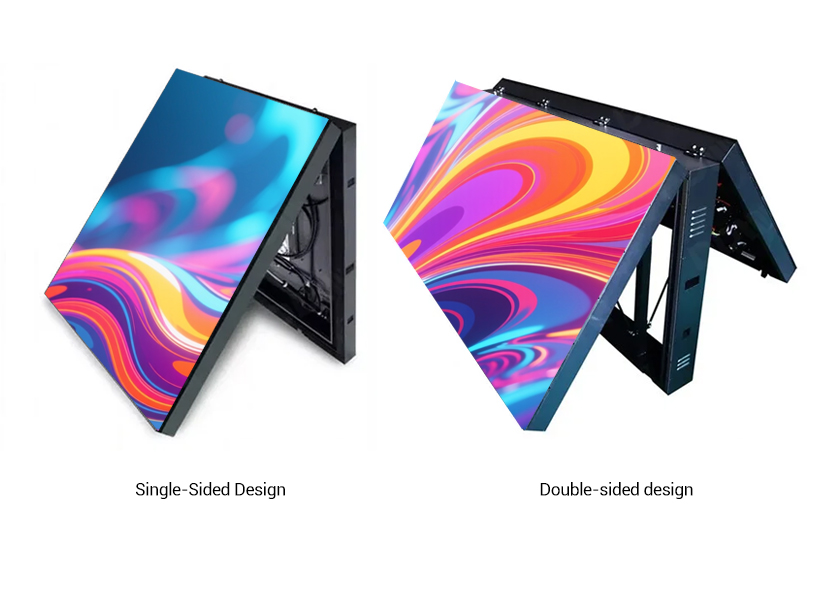

Single/Double-Sided Screen Options
Single/double-sided screens are ideal for outdoor installation in low-height, small-area scenarios such as residential communities, parking lots, and amusement parks. They are also highly effective for road signs, entryway branding, pedestrian information points, and community alert systems, ensuring clear audio and video dissemination in compact spaces.
Installation Methods
JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.
Application Scenarios
Wall-Mounted LED Screen
Single-Column Mounted LED Screen

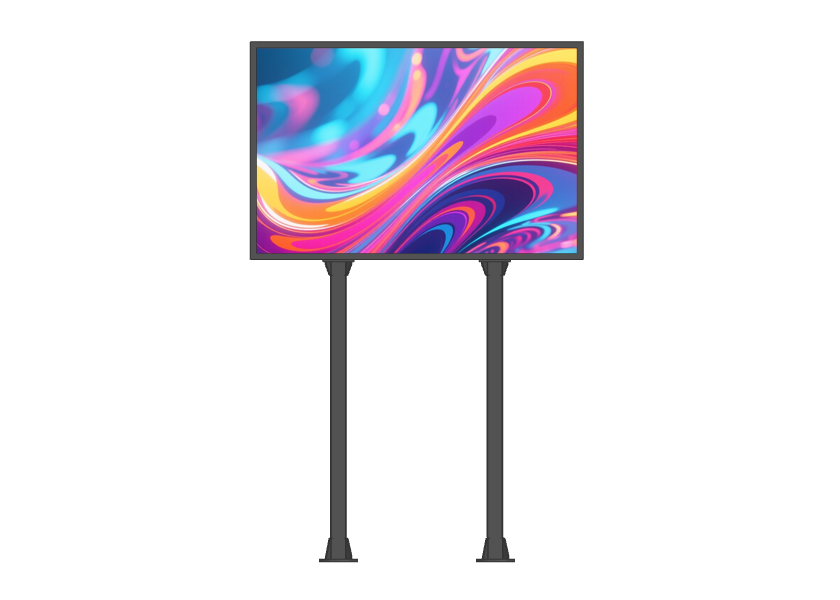

Multi-Column Mounted LED Screen
Floor-to-Ceiling LED Screen
Surface-Mounted LED Screen
Product Parameter
OU-F Series Cabinet Size: 960x960mm (Customizable)\(td)
Pixel Pitch
P2.5
P3.076
P4
P5
P6.67
P8
P10
SMD
1G1R1B
1G1R1B
1G1R1B
1G1R1B
1G1R1B
1G1R1B
1G1R1B
Physical Density(dots/㎡)
160000
105688
22500
62500
22477
15625
10000
Drving Mode
1/16s
1/13s
1/10s
1/8s
1/6s
1/5s
1/4s
Module size(mm)
320×160
Module resolution(dots)
128×64
104×52
80×40
64×32
48×24
40×20
32×16
Cabinet size(mm)
960X960
Cabinet resolution(dots)
648×2648
312×312
240×240
192×192
144×144
120×120
96×96
Module quantity(W xH)
3X6
Panel Weight(kg)
26
Installation & Maintenance
Rear & (Front)
Materials
Die-Cast Aluminum
Brightness(Nits)
4000-4500
4000-4500
5000-6000
5000-6000
5000-6000
4500-5000
5500-6500
Viewing Angle(H/V)
140°/140°
Best viewing distrance
≥2.5
≥3
≥4
≥5
≥7
≥8
≥10
Contrast Ratio
10000 : 1
Grey Level
10-14bit
Refresh Rate (Hz)
1920-3840
Waterproof grade
IP65
Max power consumption(W/㎡)
800-1000
Avg power consumption(W/㎡)
300-350
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
