Product Features
High Brightness
Energy Saving
Fast Heat Removal
High Flexibility
IP65 Waterproof
Wide Viewing Angle
High Refresh Rate
Lightweight And Slim
Light and Thin
Engineered with precision die-cast aluminum, our LED cabinet combines robustness with remarkable lightness. With modules attached, the cabinet maintains an incredibly slim depth of only 83mm and a per-unit weight of just 23kg. This ultra-thin, lightweight design significantly enhances installation flexibility, making it ideal for a wide range of environments.

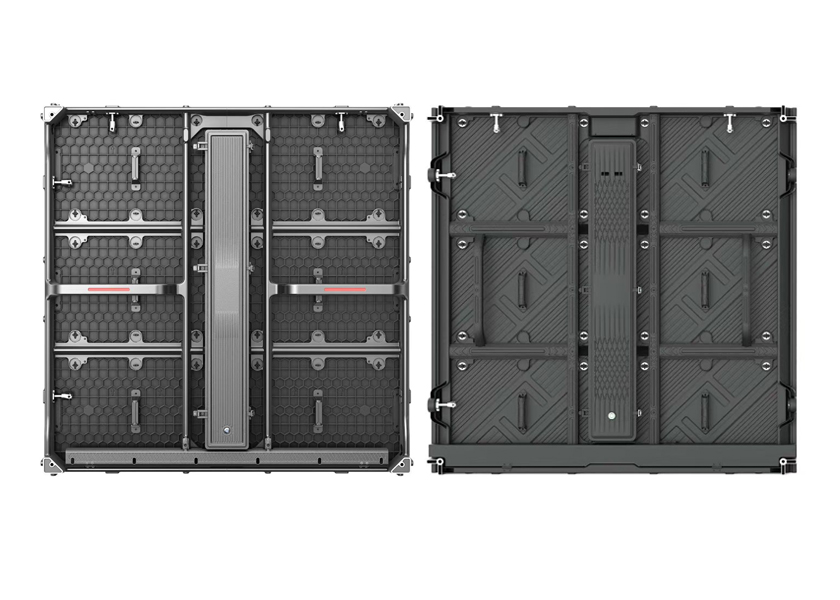

Front & Rear Maintenance
Dual-access design for fast front and rear servicing, helping to minimize maintenance costs. The LED panels are designed for quick and easy installation and removal.
Various Specifications

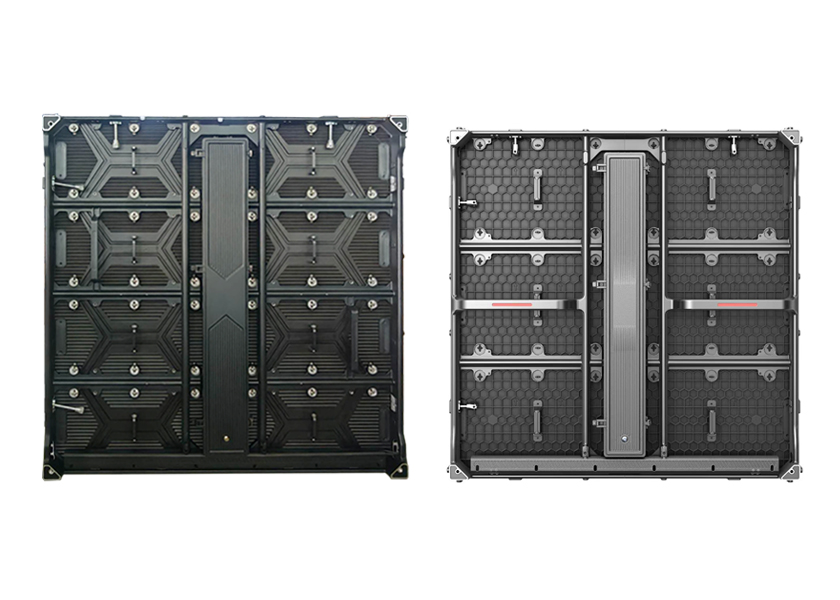

Combining ultra-slim profiles with exceptional durability, our die-cast aluminum cabinets are engineered for outdoor excellence. Available in standard sizes like 1000x1000mm and 960x960mm, they provide a versatile, lightweight solution that adapts seamlessly to any outdoor environment.
Installation Methods
JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.
Application Scenarios

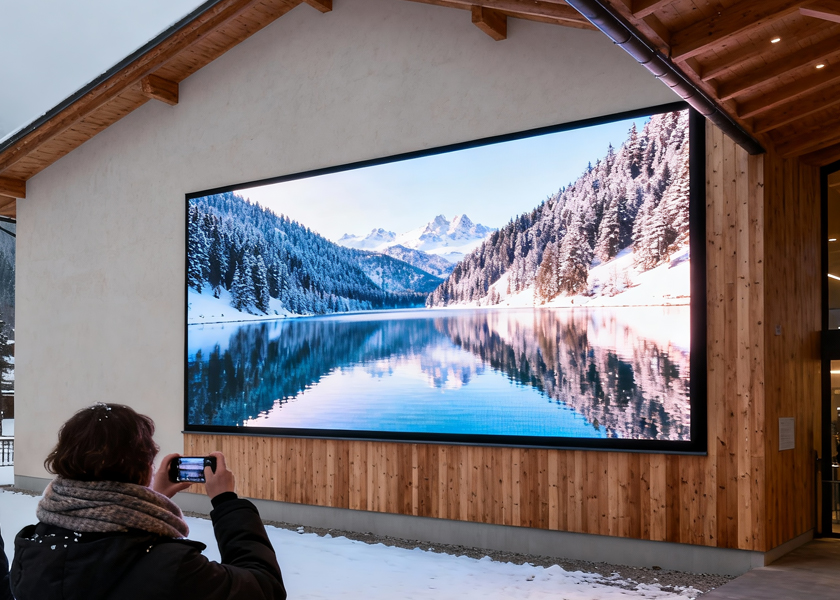

Wall-Mounted LED Screen
Single-Column Mounted LED Screen
Multi-Column Mounted LED Screen
Floor-to-Ceiling LED Screen
Surface-Mounted LED Screen
Product Parameter
OU-H Series Cabinet Size: 1000x1000mm / 960x960mm (Customizable)
Pixel Pitch
P2.976
P3.91
P4.81
P6.25
P7.81
P10.42
LED type
SMD1415
SMD1921
SMD1921
SMD2727
SMD2727
SMD2727
Physical Density(dots/㎡)
112896
65536
43264
25600
16384
9216
Drving Mode
1/21s
1/16s
1/13s
1/8s
1/4s
1/2s

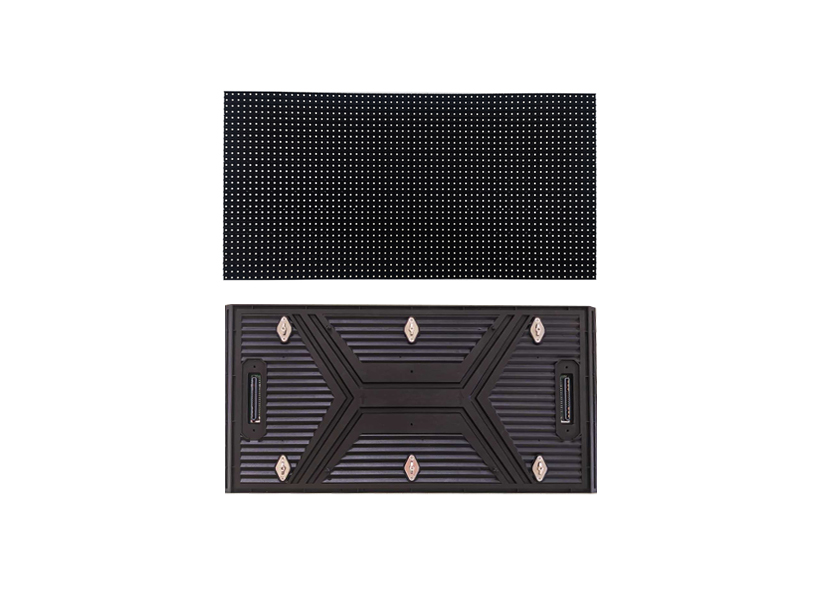

Module size(mm)
500×250
Module resolution(dots)
168×84
128×64
104×52
80×40
64×32
48×24
Cabinet size(mm)
1000X1000X83(Customizable for1500 width and 500/750 height）
Cabinet resolution(dots)
336×336
256×256
208×208
160×160
128×128
96×96
Module quantity(W xH)
2X4
Panel Weight(kg)
22.5
Maintenance Mode
Front & Rear
Materials
Aluminum
Brightness(Nits)
6000-10000
Color temperature(K)
5000-12000 Optional
Viewing Angle(H/V)
140°/160°
Best viewing distrance
≥3
≥4
≥4
≥6
≥8
≥10
Contrast Ratio
10000 : 1
Grey Level
16bit
Refresh Rate (Hz)
3840
Waterproof grade
IP65
Max power consumption(W/㎡)
650
Avg power consumption(W/㎡)
100-200
Working Voltage
AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)
-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)
-20~50℃/10%~95%
