OU-E Series Outdoor LED Display - Sports Venue Anti-Collision Screen

OU-E Series Outdoor LED Display - Front View

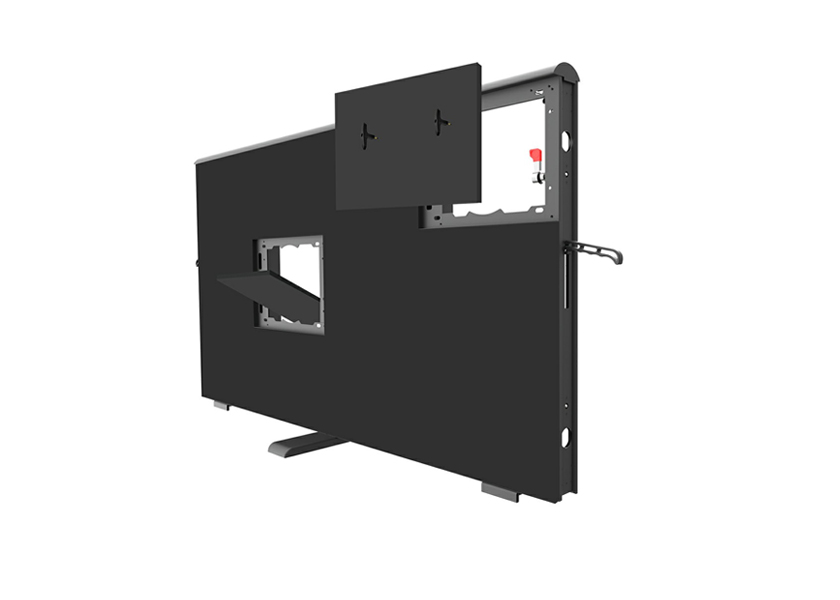

OU-E Series Outdoor LED Display - Side View

OU-E Series Outdoor LED Display

Sports Venue LED Screen with Anti-Collision Protection - 1600x1000mm Large Cabinet

Soft Face Mask Design for Impact Protection
Anti-Collision Foam Padding Along Top Edge
Front/Rear Access for Easy Installation
Modern, Minimalist Aesthetic
Aluminum LED Display Cabinet - 1600x1000mm Large Format
IP65 Waterproof (Front & Rear)
6500 Nits High Brightness for Outdoor Use
3840Hz High Refresh Rate
Adjustable Viewing Angles (90°-115°)

✉ Email Us

Our team will respond within 12 hours

⭐ Product Features 🛠️ Installation Methods 🏢 Application Scenarios 📊 Product Parameter 🔄 Related Products

Product Features

High Brightness

Soft Face Mask Design

Fast Heat Removal

High Flexibility

IP65 Waterproof

Entrance Door Design

High Protection

Front Maintenance

Specially designed for venue screens

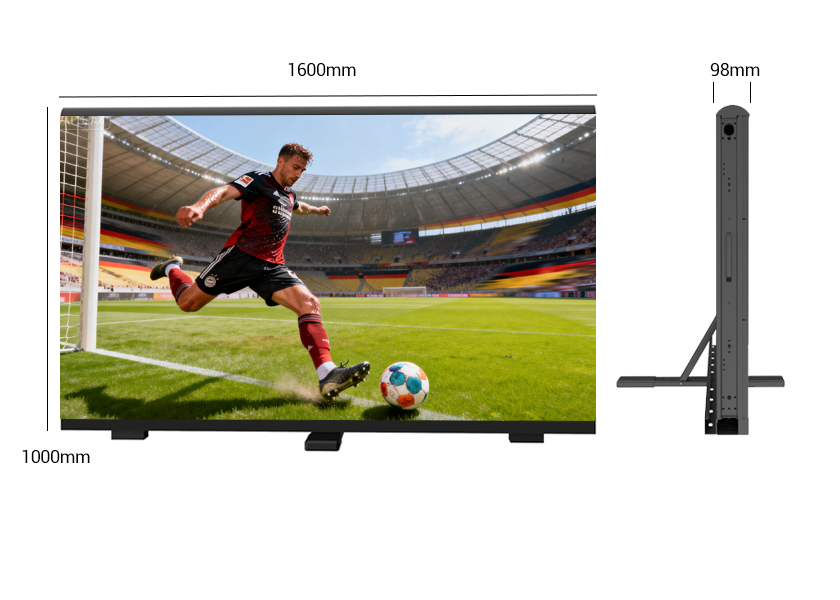

The large-sized aluminum cabinet design is not only lightweight and durable but also offers a clean, contemporary look. It allows for quick on-site assembly, which drastically cuts down installation time and labor expenses.

OU-E Series Outdoor LED Display - Large Aluminum Cabinet for Sports Venues

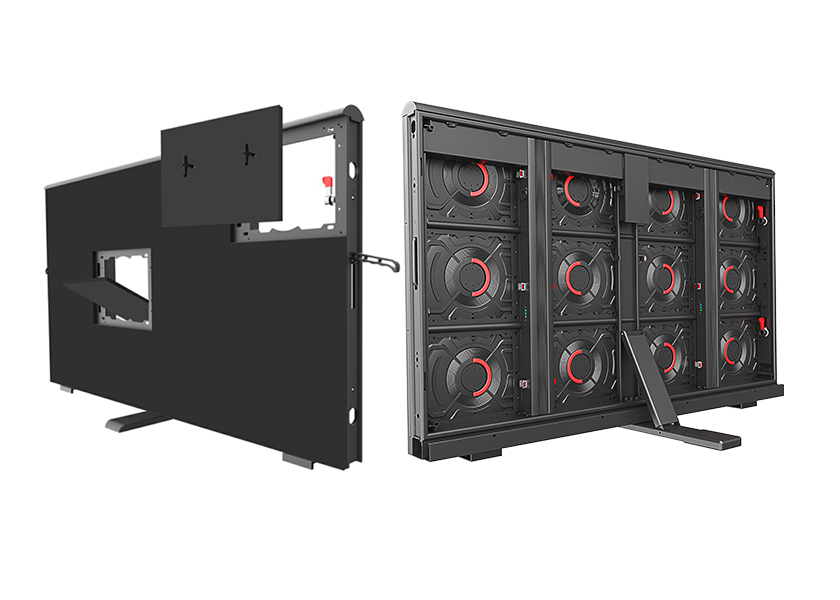

Front & Rear Maintenance

Dual-access design for fast front and rear servicing, helping to minimize maintenance costs. The LED panels are designed for quick and easy installation and removal.

More Pro Upgrades & Optimizations

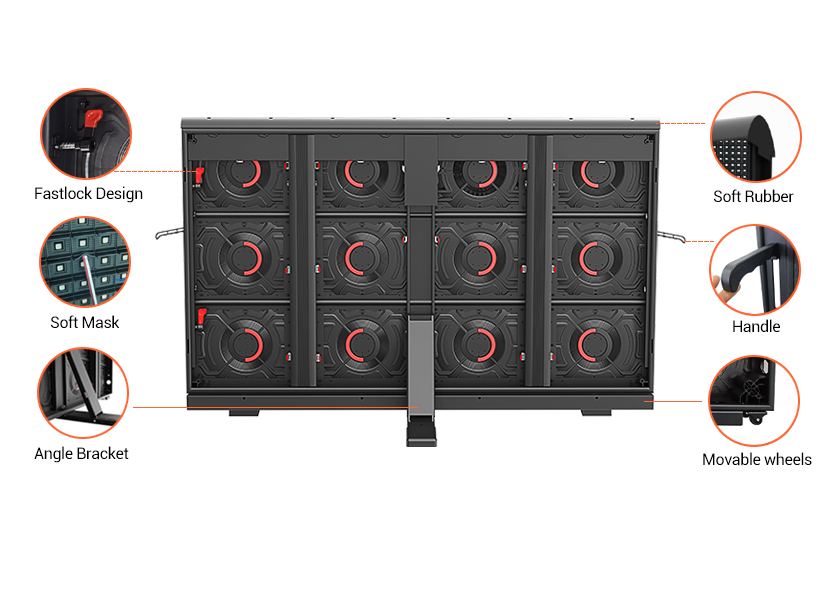

A streamlined internal layout simplifies the circuit, making installation easier and maintenance more efficient. Combined with a reliable power system, this design ensures an extended lifespan and consistent performance. For enhanced durability, the screen features four layers of physical protection: top impact-absorbing EVA foam, a bottom impact-resistant structure, a shock-absorbing front mask, and anti-kick side pads.

OU-E Series Outdoor LED Display - 4-Layer Physical Protection System

OU-E Series Outdoor LED Display - Adjustable Placement 90° to 180°

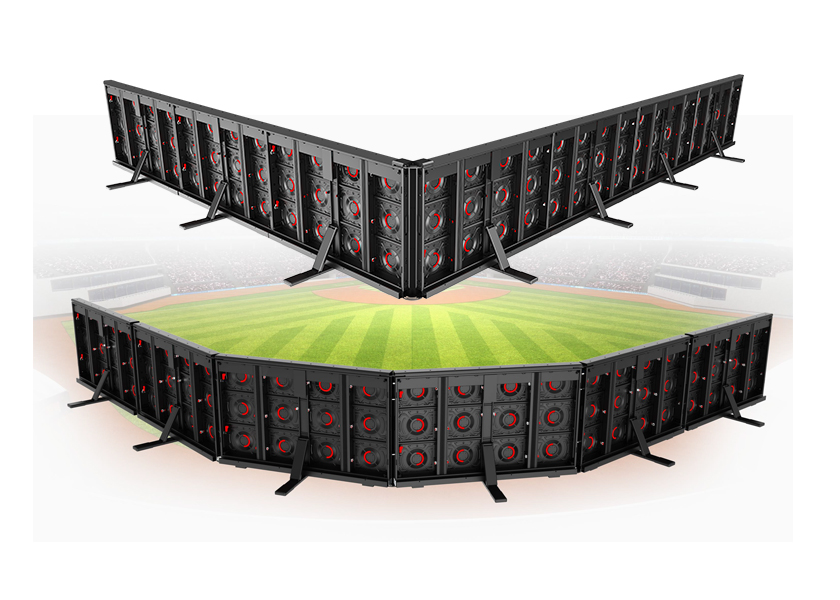

More Placement Methods

Full-range flexibility. Adjusts seamlessly from 90° to 180° for a perfect, built-in corner fit. Boundless innovation. A rotatable design that transforms content display, from crisp corners to expansive views.

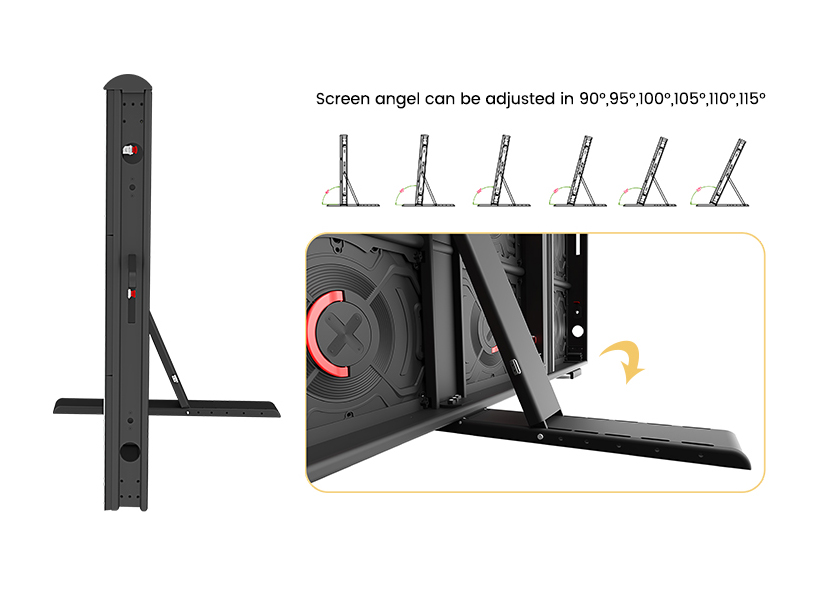

Adjustable & Wide Viewing Angles

The screen angle bracket adjusts from 90° to 115° in 5° increments, adapting to any venue size or viewing requirement. It also supports customization for diverse viewing perspectives.

OU-E Series Outdoor LED Display - Adjustable Viewing Angles 90°-115°

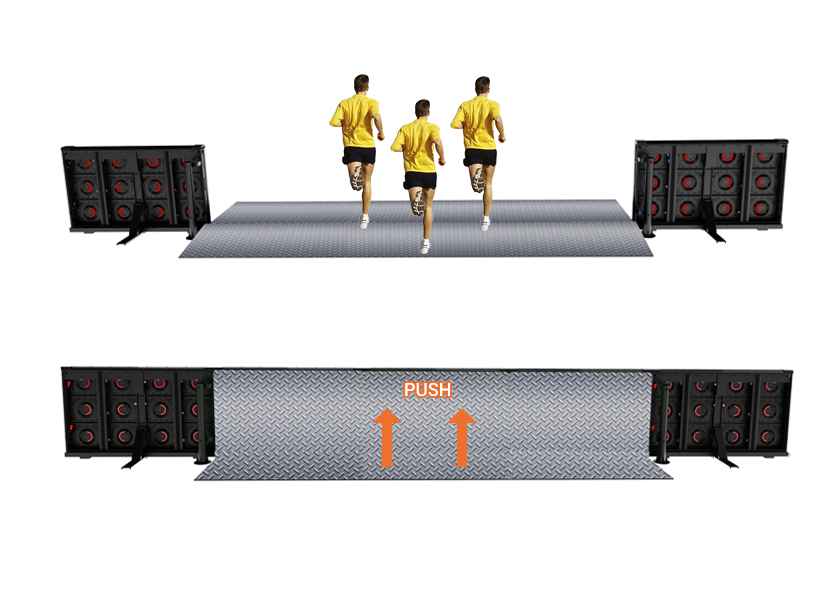

Entrance Door Design

The innovative entrance door design ensures security while featuring a quick-push safety pedal for emergency exits. In the event of a fire, it also serves as a critical fire barrier, helping to prevent flames from spreading along the fence screen.

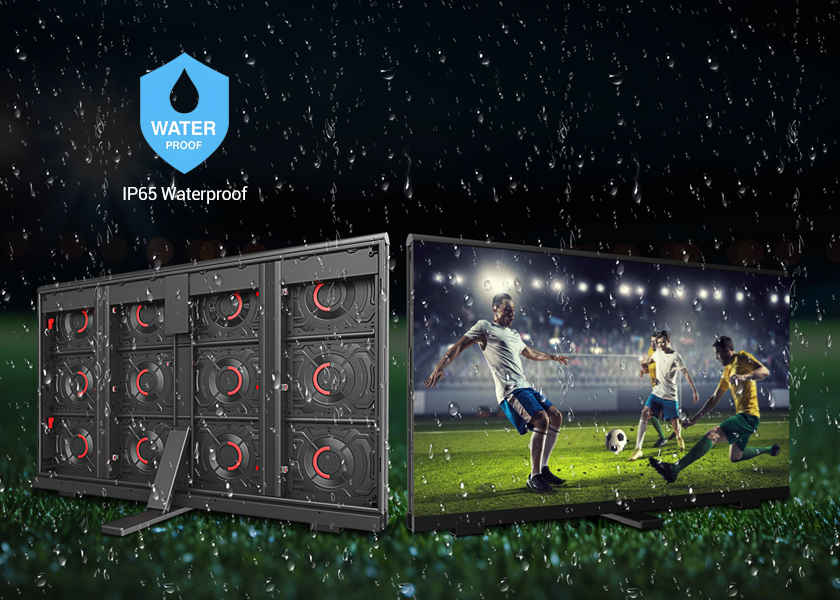

IP65 Waterproof

Engineered with an IP65 rating, it offers superior protection against dust and water, guaranteeing flawless operation outdoors—rain or shine.

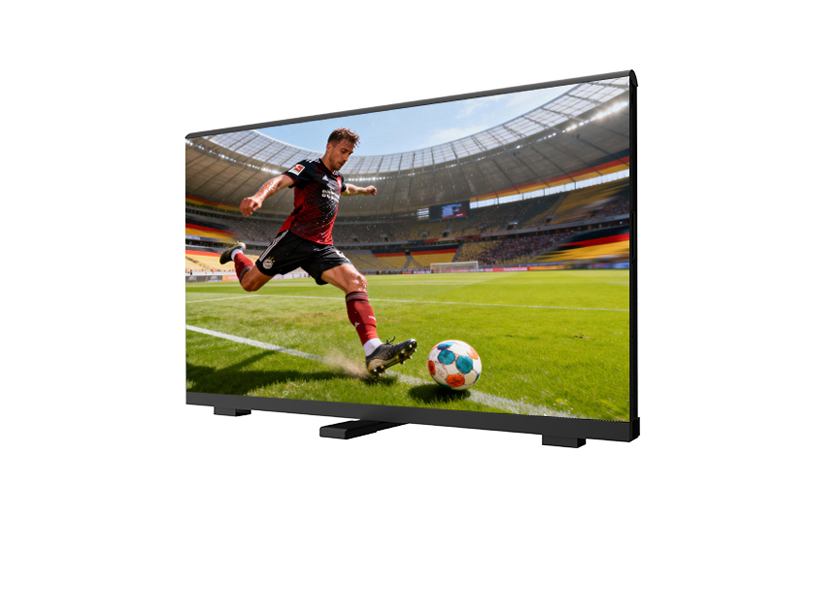

OU-E Series Outdoor LED Display - 6500 Nits High Brightness & 3840Hz Refresh Rate

High Brightness & High Refresh Rate

With 6000-6500cd/m² brightness and 3840Hz refresh rate, it delivers stable dynamic visuals and a more comfortable viewing experience.

Installation Methods

JINGRUNS outdoor LED displays are built for large-scale venues—from shopping malls and plazas to coastal areas—delivering stunning naked-eye 3D visuals.

Application Scenarios

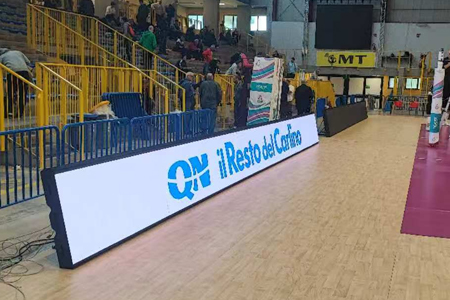

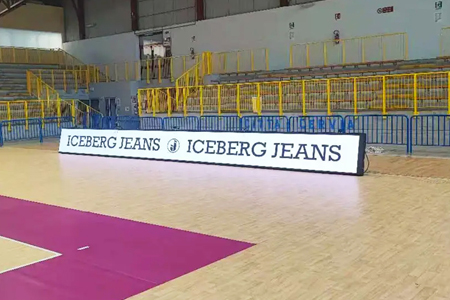

Sports Venue LED Display - OU-E Series Stadium Screen Installation

Sports Venue LED Screen

Stadium LED Screen

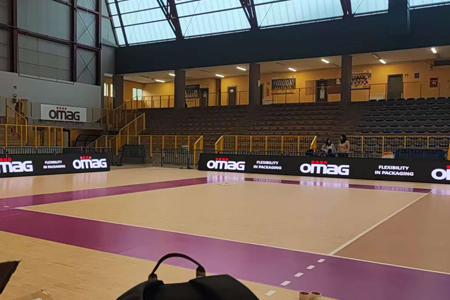

Sports Field LED Display

Floor-to-Ceiling Outdoor LED Display - Shopping Mall Installation

Floor-to-Ceiling LED Screen

Surface-Mounted Outdoor LED Screen - Building Facade Display

Surface-Mounted LED Screen

Product Parameter

OU-E Series Cabinet: 1600x1000mm - Sports Venue Outdoor LED Display with Anti-Collision Design
Pixel Pitch	P6.25	P8.33	P10
LED type	SMD2727	SMD2727	SMD2727
Physical Density(dots/㎡)	25600	14400	10000
Drving Mode	1/6s	1/3s	1/2s
Module size(mm)	400×300
Module resolution(dots)	64×48	48×36	40×30
Cabinet size(mm)	1600X1000X98
Cabinet resolution(dots)	256×144	192×108	160×90
Module quantity(W xH)	4X3
Panel Weight(kg)	43.5
Maintenance Mode	Front
Materials	Aluminum
Brightness(Nits)	6500
Color temperature(K)	5000-12000 Optional
Viewing Angle(H/V)	140°/160°
Best viewing distrance	≥6	≥8	≥10
Contrast Ratio	10000 : 1
Grey Level	16bit
Refresh Rate (Hz)	3840
Waterproof grade	IP65
Max power consumption(W/㎡)	680
Avg power consumption(W/㎡)	120-200
Working Voltage	AC100-240V,50/60Hz
Working temp/Humidity(℃/RH)	-20~50℃/10%~95%
Stock temp/Humidity(℃/RH)	-20~50℃/10%~95%
