| RE-H Series |
| Quick assembly of stage design |
|
 |
| |
 |
| |
| Pixel Pitch: 2.604/2.976/3.91/4.81mm |

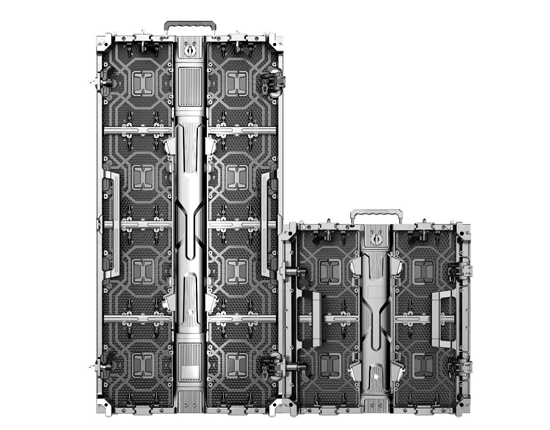

| Cabinet Size: 500*500mm/500*1000mm |
| Module Size: 250*250mm |
| |
 |
|
|
| |
| Product Parameters |
|
| |
|
Cabinet: 500X1000mm / 500X500mm |
Outdoor HD |
|
| Pixel Pitch |
P2.604 |
P2.976 |
P3.91 |
P4.81 |
| LED type |
SMD1415 |
SMD1415 |
SMD1921 |
SMD1921 |
| Physical Density(dots/㎡) |
147456 |
112896 |
65536 |
43264 |
| Module size(mm） |
250X250 |
250X250 |
250X250 |
250X250 |
| Module resolution（dots） |
96X96 |
84X84 |
64X64 |
52X52 |
| Cabinet size(mm） |
500X500(1000)X84 |
500X500(1000)X84 |
500X500(1000)X84 |
500X500(1000)X84 |
| Cabinet resoluiton（dots） |
192X192/192X384 |
168X168/168X336 |
128X128/128X256 |
104X104/104X208 |
| Cabinet weight（kgs） |
8/14.5 |
8/14.5 |
8/14.5 |
8/14.5 |
| Materials |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
| Waterproof grade (front/back) |
IP65 |
IP65 |
IP65 |
IP65 |
| Brightness(CD/㎡) |
≥4500 |
≥4500 |
≥4500C |
≥4500 |
| Drive mode |
1/32 |
1/28 |
1/16 |
1/13 |
Refresh rate(Hz)
|
≥3840 |
≥3840 |
≥3840 |
≥3840 |
| Viewing angle(H/V) |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
| Maintenance mode |
Front&Rear |
Front&Rear |
Front&Rear |
Front&Rear |
Gray scale
|
16bit |
16bit |
16bit |
16bit |
| Color temperature(K) |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
| Frame Frequency |
50/60 |
50/60 |
50/60 |
50/60 |
Max consumption(W/㎡)
|
800 |
800 |
600 |
800 |
Avg. consumption(W/㎡)
|
200-300 |
200-300 |
200-300 |
200-300 |
| Brightness adjustment |
0-100 levels adjustable |
Working Voltage
|
AC100-240V,50/60Hz |
Working temp/Humidity(℃/RH)
|
-20~50℃/10%~95% |
Stock temp/Humidity(℃/RH)
|
-20~50℃/10%~95% |
|
|
| |
|
Cabinet: 500X500mm / 500X1000mm |
Indoor HD |
|
| Pixel Pitch |
P1.56 |
P1.95 |
P2.5 |
P2.604 |
P2.976 |
P3.91 |
| LED type |
SMD1212 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2020 |
| Physical Density(dots/㎡) |
409600 |
262144 |
160000 |
147456 |
112896 |
65536 |
| Module size(mm） |
250X250 |
250X250 |
250X250 |
250X250 |
250X250 |
250X250 |
| Module resolution（dots） |
160X160 |
128X128 |
100X100 |
96X96 |
84X84 |
64X64 |
| Cabinet size(mm） |
500X500X84 |
500X500X84 |
500X500X84 |
500X500(1000)X84 |
500X500(1000)X84 |
500X500(1000)X84 |
| Cabinet resoluiton（dots） |
320X320 |
256X256 |
200X200 |
192X192/192X384 |
168X168/168X336 |
128X128/128X256 |
| Cabinet weight（kgs） |
8 |
8 |
8 |
8/14.5 |
8/14.5 |
8/14.5 |
| Materials |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
Die Cast Aluminum |
| Waterproof grade (front/back) |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
| Brightness(CD/㎡) |
≥600 |
≥600 |
≥800 |
≥800 |
≥800 |
≥1000 |
| Drive mode |
1/40 |
1/32 |
1/25 |
1/32 |
1/28 |
1/16 |
Refresh rate(Hz)
|
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
| Viewing angle(H/V) |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
| Maintenance mode |
Front&Rear |
Front&Rear |
Front&Rear |
Front&Rear |
Front&Rear |
Front&Rear |
Gray scale
|
16bit |
16bit |
16bit |
16bit |
16bit |
16bit |
| Color temperature(K) |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
| Frame Frequency |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
50/60 |
Max consumption(W/㎡)
|
800 |
800 |
800 |
800 |
800 |
600 |
Avg. consumption(W/㎡)
|
200-300 |
200-300 |
200-300 |
200-300 |
200-300 |
200-300 |
| Brightness adjustment |
0-100 levels adjustable |
Working Voltage
|
AC100-240V,50/60Hz |
Working temp/Humidity(℃/RH)
|
-20~50℃/10%~95% |
Stock temp/Humidity(℃/RH)
|
-20~50℃/10%~95% |
|
|
|
|
|
|
|
| The product images and screen content on the above page are for illustrative purposes only. The actual product effect (including but not limited to appearance, color, and size) and screen display content |
| (including but not limited to background, UI, and illustrations) may vary slightly. Please refer to the actual product. |
| The data on the previous page are theoretical values obtained from laboratory tests conducted in specific testing environments. In actual use, they may vary slightly due to individual product differences, software |
| versions, usage conditions, and environmental factors. Please refer to the actual usage scenario. |
| Due to real-time changes in product batches and production supply factors, we regret to inform you that we are unable to provide separate notifications for such modifications.Please refer to the real-time |
| information in the solution |
|
|
