| RE-H Series |
| Quick assembly of stage design |
|
 |
| |
 |
| |

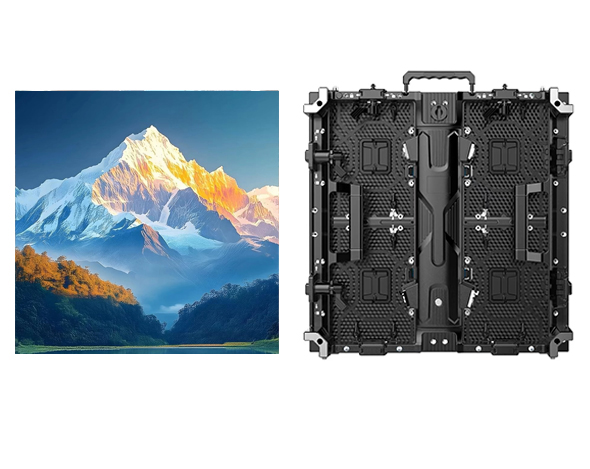

| Pixel Pitch: 2.604/2.976/3.91/4.81mm |
| Cabinet Size: 500*500mm |
| Module Size: 250*250mm |
| Product Parameters |
 |
|
|
| |
| |

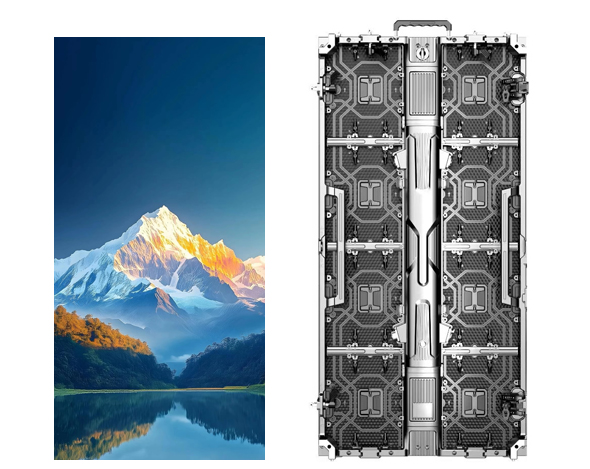

| Pixel Pitch: 2.604/2.976/3.91/4.81mm |
| Cabinet Size: 500*1000mm |
| Module Size: 250*250mm |
|
|
|
|
| |
|
| |
| Modular Assembly Design |
| The optimized large-format module design significantly |
| enhances LED display flatness, delivering superior |
| visual performance while streamlining installation and |
| maintenance processes |
| |
|
| |
| |

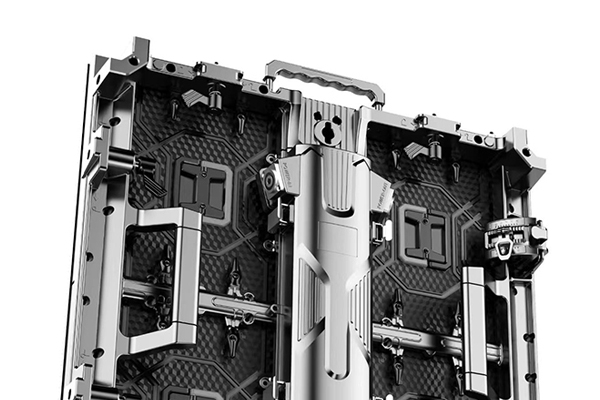

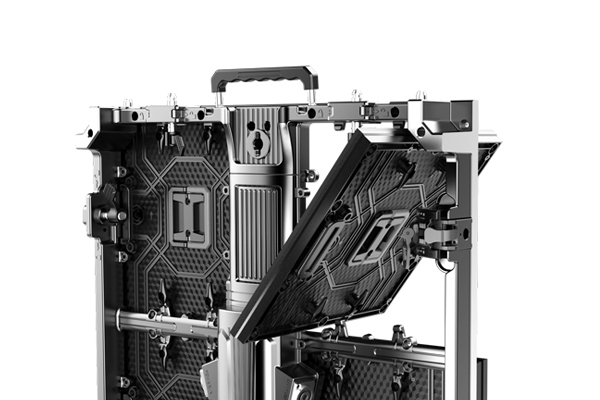

| Dual-Side Maintenance |
| The standardized aluminum alloy enclosure features |
| front/rear maintenance access and precision engineering, |
| ensuring structural strength while reducing weight for faster |
| installation, enhanced stability, and safer maintenance. |
| |
|
 |
|
 |
| |

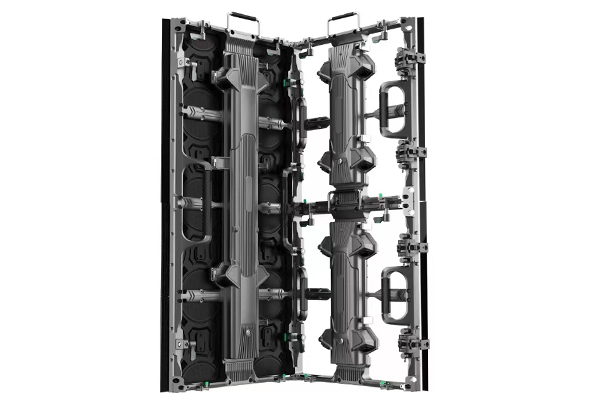

High-Precision Arc Lock |
| Innovative Half-Arc Lock Design, Compatible with Straight |
| and Arc Configurations,
for Quick Angle Adjustment and |
Fixation.
|
| Adjustable Angle：-5°、-2.5°、0°、+2.5°、+5° |
| |
|
|
| |

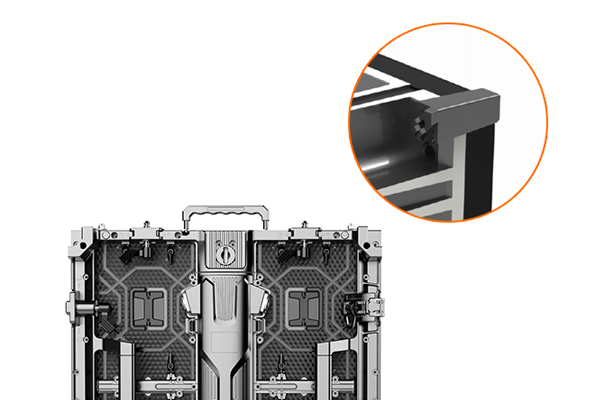

| Corner Protection |
| The enclosure is equipped with protective corners, |
| combined with anti-collision features at the |
bottom, providing comprehensive protection for the
|
| modules. |
| |
|
 |
| |
 |
| |

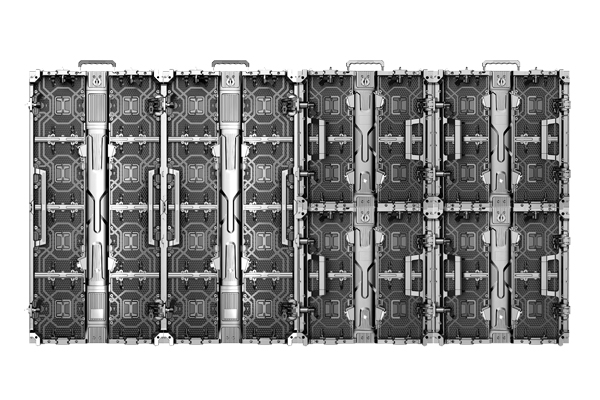

| Flexible Installation |
The 500x500mm enclosure can easily interlock with |
| the 500x1000mm enclosure in a vertical manner, |
| greatly
meeting the setup needs for different areas. |
| |
| |
|
| |
| |

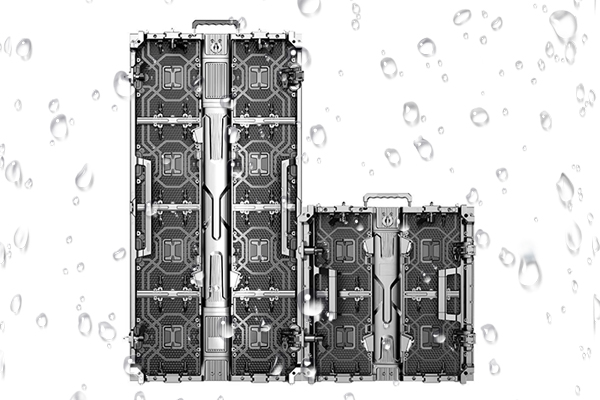

| Weather/Dust Sealed |
IP65+front and rear double-sided protection design, |
| with wind, rain, erosion and dust prevention functions, |
| can adapt to various harsh outdoor environments. |
| |
| |
|
 |
|
 |
| |

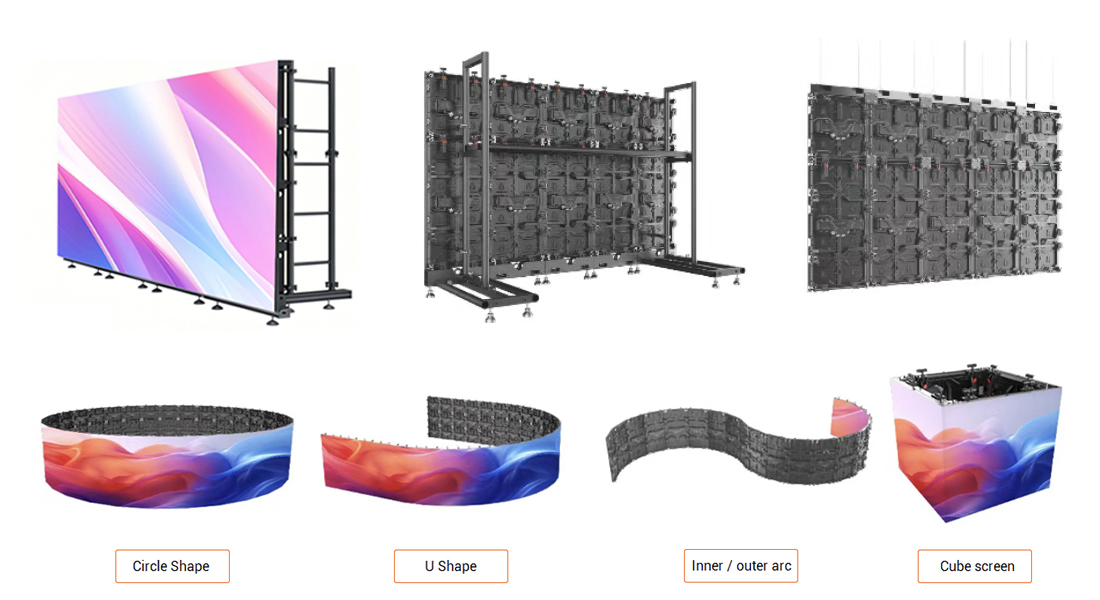

| Right Angle Splicing |
Support creative shapes such as lifting, seat mounting, |
| cylindrical, curved, and right angle screens to meet the |
needs of various scenarios.
|
| |
| |
|
|
| |

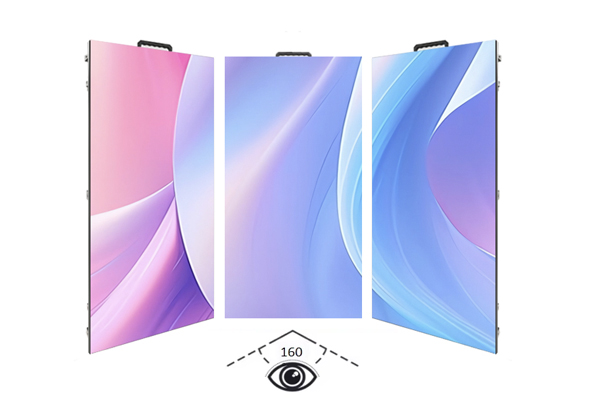

| Wide Viewing Angle |
Viewing angle is up to 160° vertical and horizontal. |
| providing a wide viewing angle
Ultra-wide viewing |
| angle give you the largest screen viewing area.lt offers |
| you clear
and natural images in all directions. |
| |
|
 |
|
 |
| |
| HD Visual Experience |
| High resolution, high refresh rate, and high brightness |
| image quality make every detail clear and visible, with |
| no ghosting or flickering on the screen display. |
| |
| |
|
|
| |

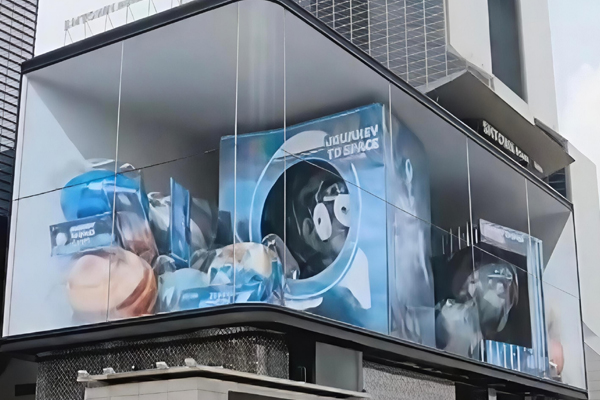

| 3D Display Effect |
| The addition of 3D video materials, combined with |
| high-quality LED displays and excellent structural design |
| support, can achieve 3D display. |
| |
| |
|
 |
|
| |
| Supports multiple installation methods |
| wall-mount, suspended options. |
 |
|
|
|
|
|
|
|
|
|
|
